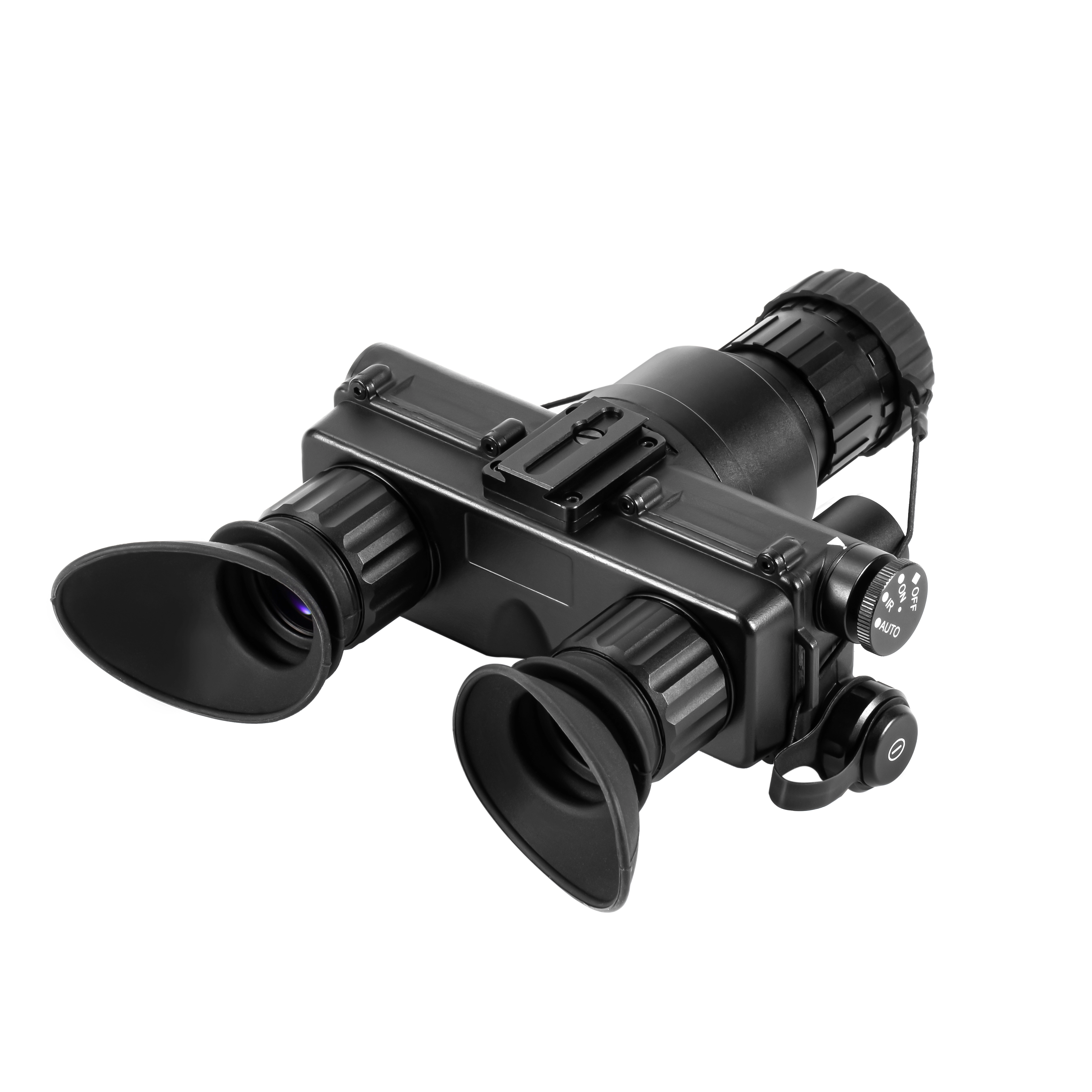

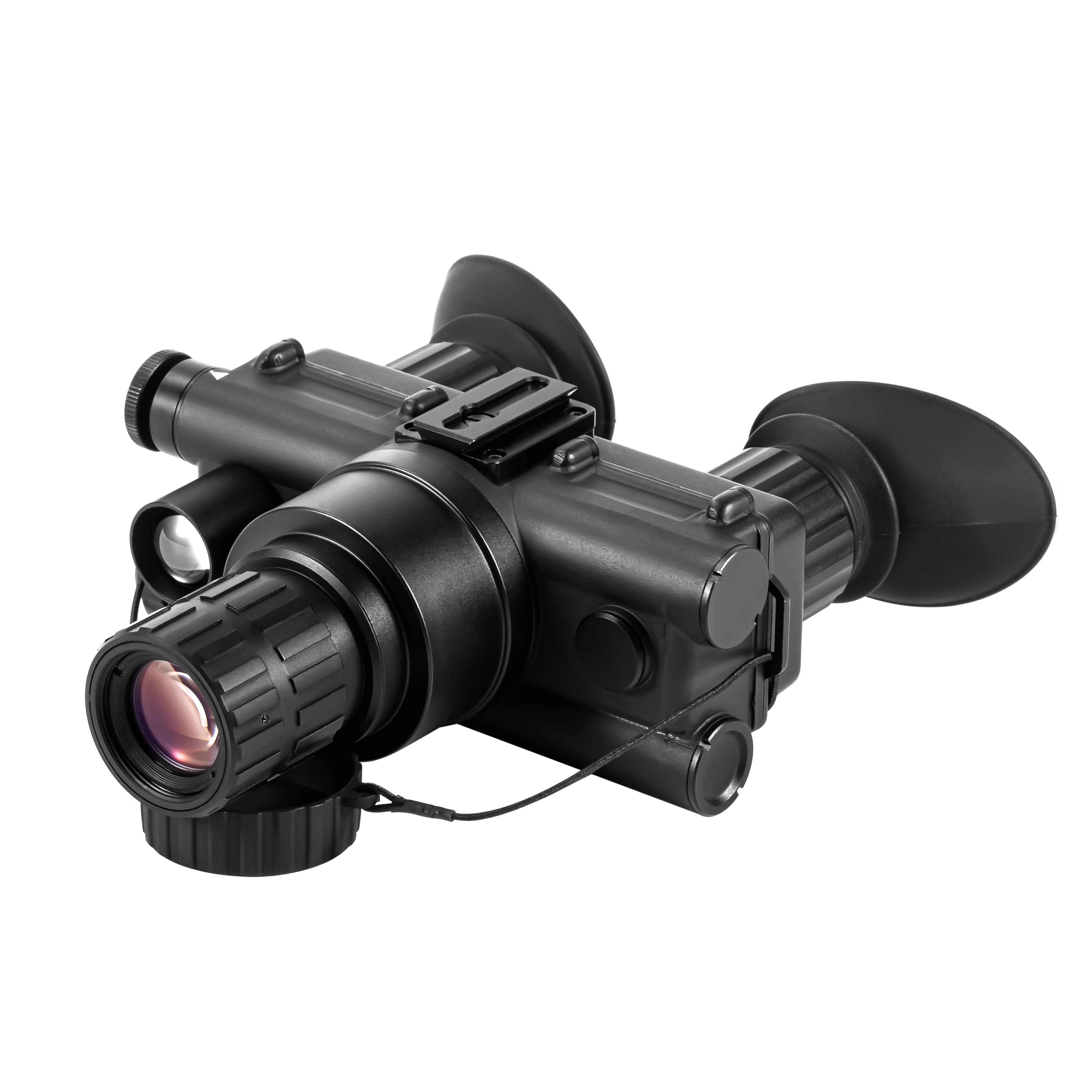

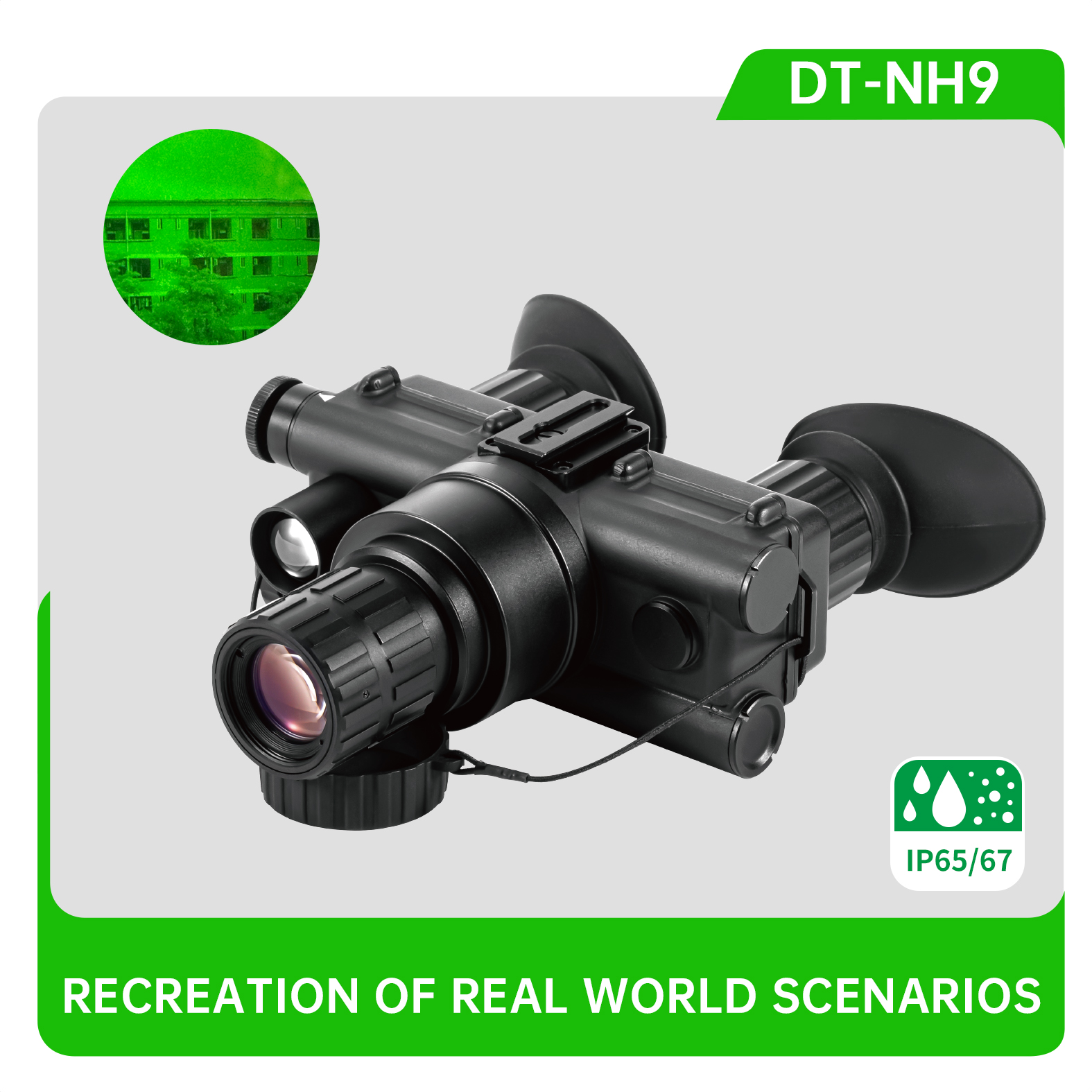

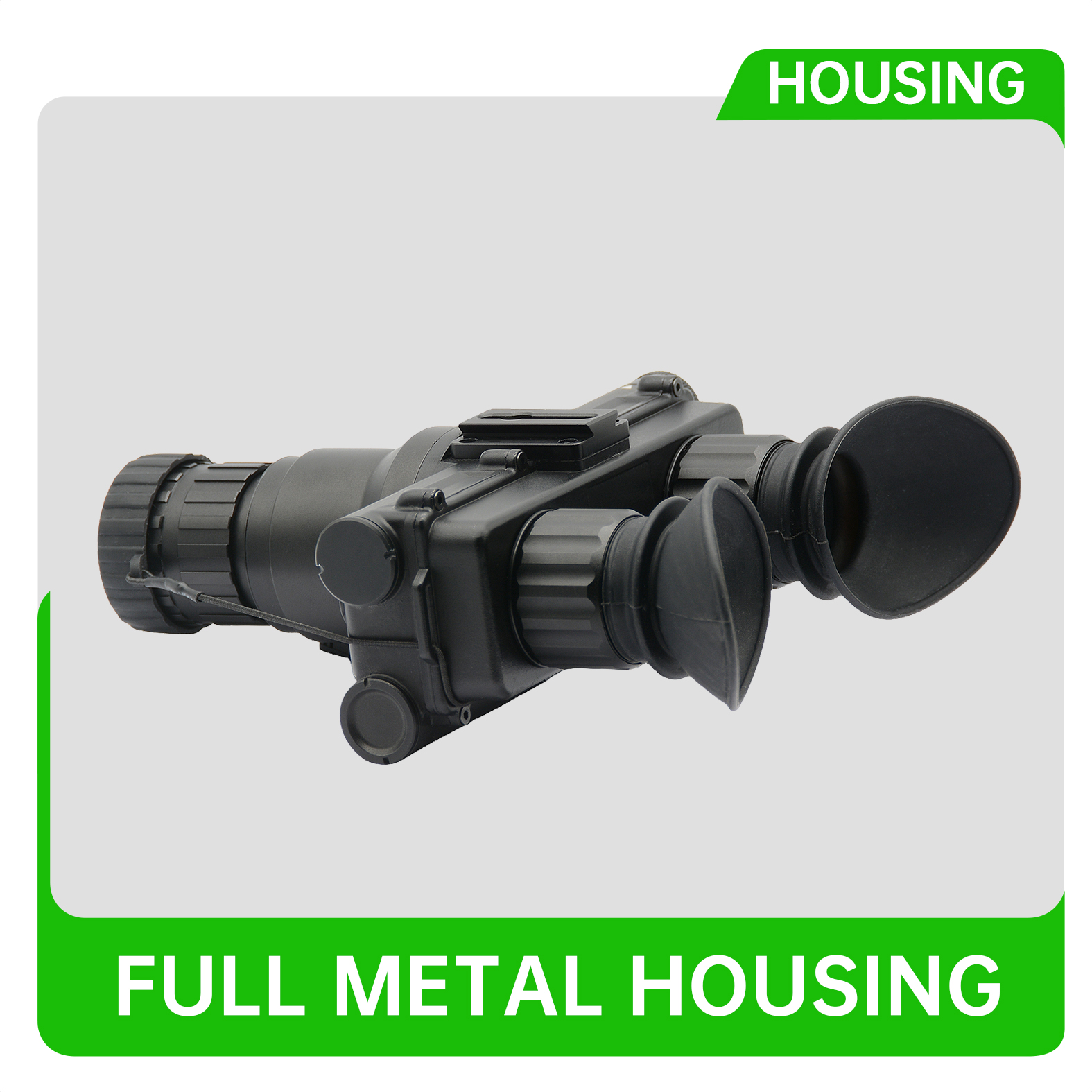

Night Vision Goggles PVS7 DT-NH9X

DT-NH9X is a new product developed based on the latest Detyl technology. Small size, light weight, clear imaging, adjustable eye distance, and changeable magnification by replacing the
objective lens (or connecting A focal lens). After adding the thermal imaging module,The thermal
fusion not only observe the surrounding environment in a dark environment, but also quickly
identify living targets, greatly improving the night recognition ability

Availability:

Quantity:



Inquire Add to Basket

Model:
DT-NH9X
Brand:
Detyl

微信图片_20240517110937 微信图片_20240517110943 Product feture:

1.Night vision/thermal Fusion/ Video output

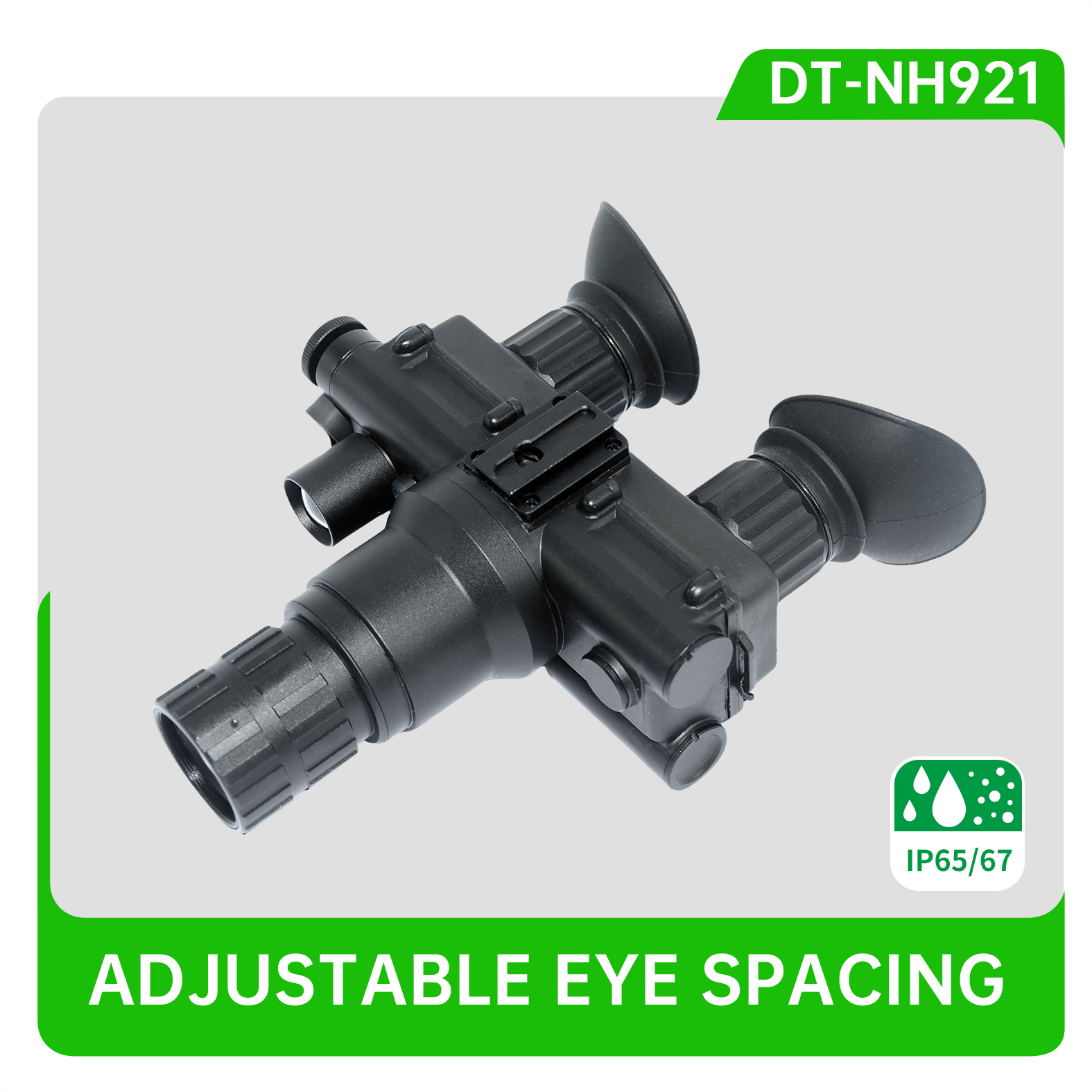

2.Eyepiece spacing adjustable and Flip up down ON/OFF

3.Can be changed the objective lens （3x-5x）
4.Thermal imaging: one-button switch, easy to operate

Night vision goggles outdoor equipment PVS-7 NVG Night vision binoculars military equipment military and police supplies Night vision

Product Catalog

Contact Us

(+86)15625269625

jenny@detyl.com

301A/3F (Yanluo-Chuanggu Park), No. 96, Yangyong Road, Tang sha Chung Community, Song-gang Town , Baoan District, Shenzhen, China.

MODEL	DT-NH921	DT-NH921s（Thermal fusion）
Generation	Gen 2+/Gen3(optional)	Gen 2+/Gen3(optional)
Magnification	1X	1X
FOV(°)	42+/-3	42+/-3
Adjustable range of eye distance	65+/-5	65+/-5
Diopter	+/-5	+/-5
Total Darkness IR System	YES	YES
Automatic Brightness Control	YES	YES
Bright Light Cut-off	YES	YES
Infrared Illuminator	Built-in(850nm 20mW)	Built-in(850nm 20mW)
IR Indicator	YES	YES
Low Battery Indicator	YES	YES
Material	Aviation aluminum	Aviation aluminum
Power supply(v)	2.6-4.2V	2.6-4.2V
Battery type(v)	Double A battery(2)	Double A battery (2)+ external battery pack
Operating Temperature（℃）	-40/+50	-40/+50
Relative humidity	5%-98%	5%-98%

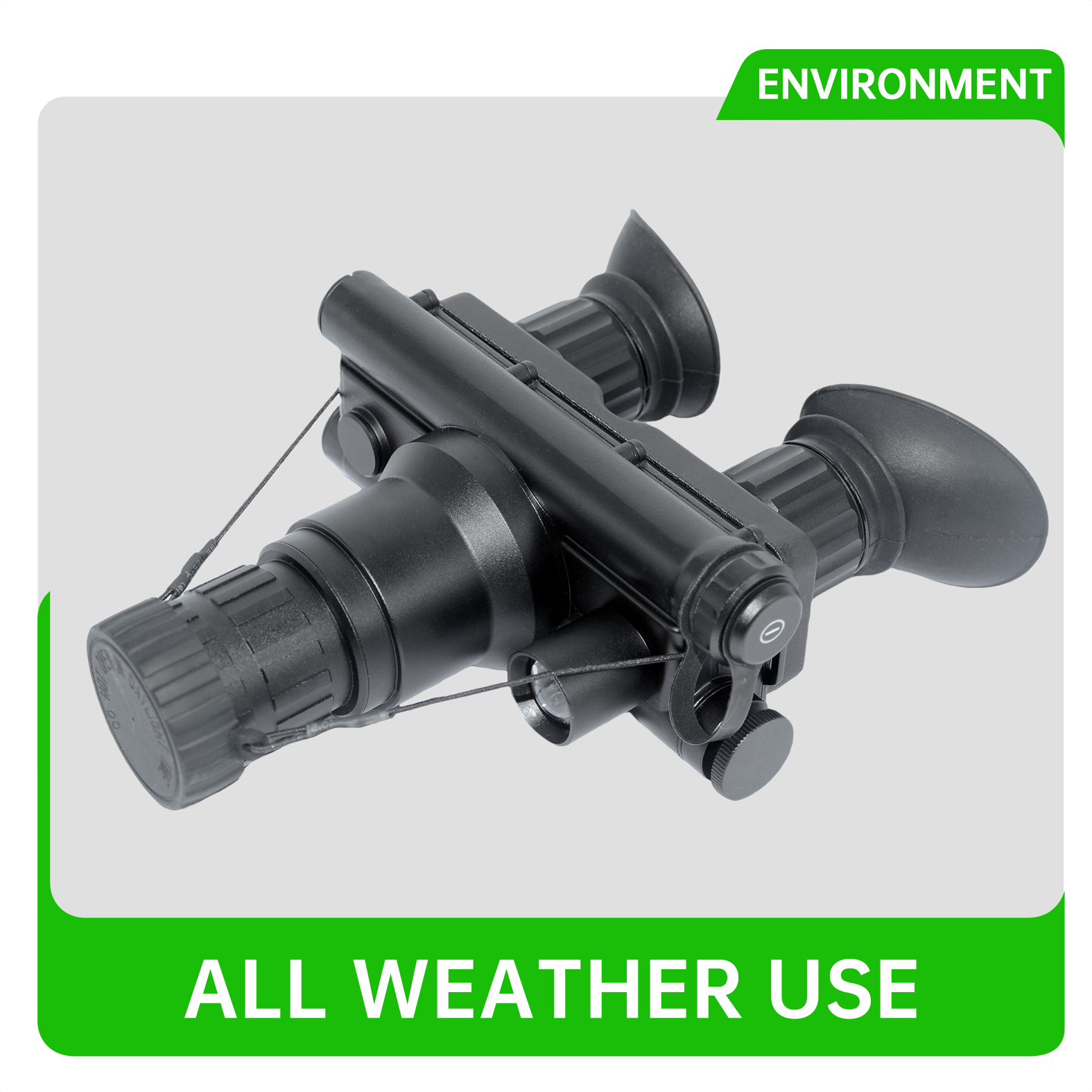

Waterproof	IP65（IP67 Optional）	IP65（IP67 Optional）
Dimensions (mm) (without eye mask)	130x130x56	115x127x69
Weight(g)	356g(housing)/410g(finished)	398g(housing)/468g(finished)

MODEL	DT-NH921	DT-NH921s（Thermal fusion）
Generation	Gen 2+/Gen3(optional)	Gen 2+/Gen3(optional)
Magnification	1X	1X
FOV(°)	42+/-3	42+/-3
Adjustable range of eye distance	65+/-5	65+/-5
Diopter	+/-5	+/-5
Total Darkness IR System	YES	YES
Automatic Brightness Control	YES	YES
Bright Light Cut-off	YES	YES
Infrared Illuminator	Built-in(850nm 20mW)	Built-in(850nm 20mW)
IR Indicator	YES	YES
Low Battery Indicator	YES	YES
Material	Aviation aluminum	Aviation aluminum
Power supply(v)	2.6-4.2V	2.6-4.2V
Battery type(v)	Double A battery(2)	Double A battery (2)+ external battery pack
Operating Temperature（℃）	-40/+50	-40/+50
Relative humidity	5%-98%	5%-98%
Waterproof	IP65（IP67 Optional）	IP65（IP67 Optional）
Dimensions (mm) (without eye mask)	130x130x56	115x127x69
Weight(g)	356g(housing)/410g(finished)	398g(housing)/468g(finished)
