DT-ONX5

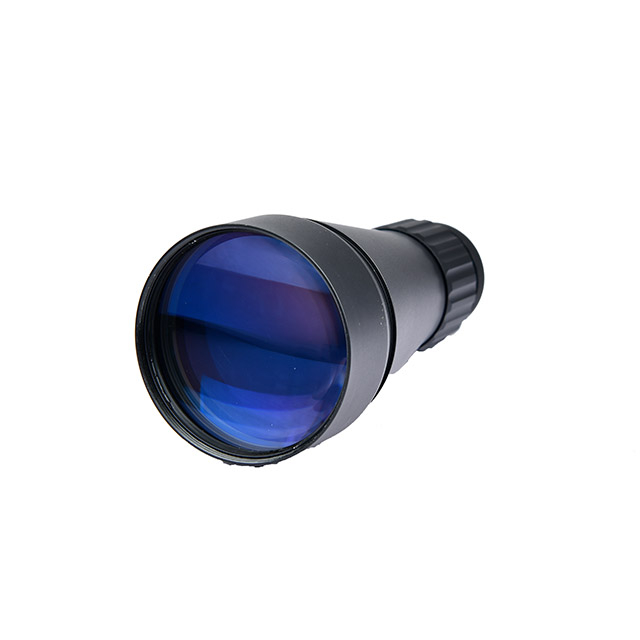

DT-ONX5 low-light objective lens is a high-performance universal objective lens that can be combined with low-light image intensifier to obtain high-resolution, low-light environment images. It can adapt to low-light night vision products. It has the technical advantages of strong adaptability to low illumination, high imaging quality, large magnification, small distortion, large aperture and other products. In addition, it also has the appearance advantages of light weight, high cost performance, simple design, beautiful and generous.
Availability:
Quantity:

DT-ONX5 low-light objective lens is a high-performance universal objective lens that can be combined with low-light image intensifier to obtain high-resolution, low-light environment images. It can adapt to low-light night vision products. It has the technical advantages of strong adaptability to low illumination, high imaging quality, large magnification, small distortion, large aperture and other products. In addition, it also has the appearance advantages of light weight, high cost performance, simple design, beautiful and generous.

Product Parameter:

5X objective lens

technical parameters

field of view


4to 8 degrees

optical dynameter

5X   Ф65  FL=90

relative illumination

95%

Optical aperture (objective)

F1.4/2.8

Optical MTF

150LP/mm

optical distortion

0.5%Max

focusing range

15M-∞

Focusing mode

manual operation

coating film


Multilayer composite ultra wideband blue film

material

High strength aviation aluminum

shock strength

>1000G

operating temperature range

-50--+80℃

humidity range

5%-95%

waterproofing grade

IP65/IP67(可选)

product dimensions

138x82x68

product weight

330g
