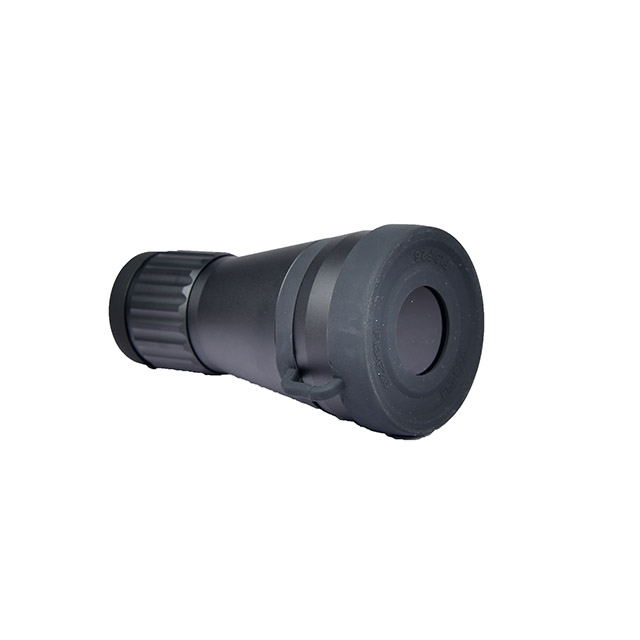

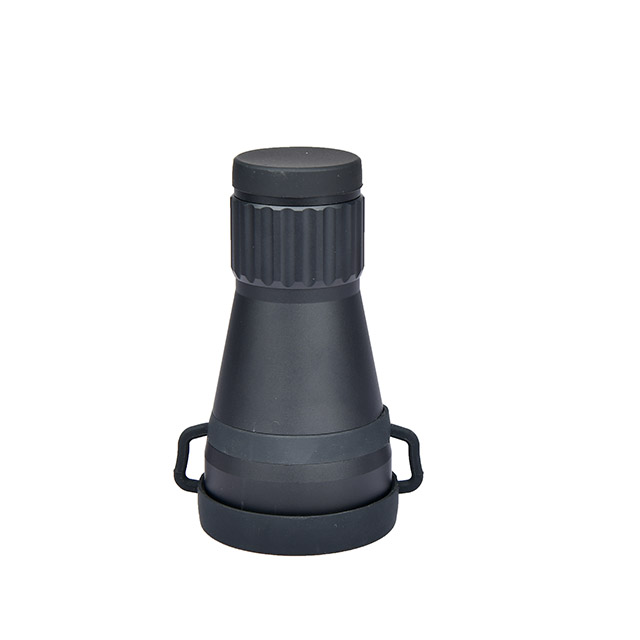

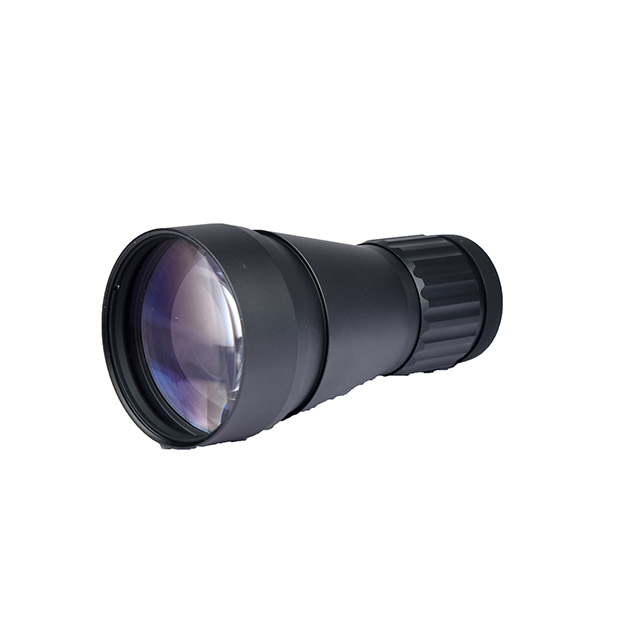

DT-ONX4

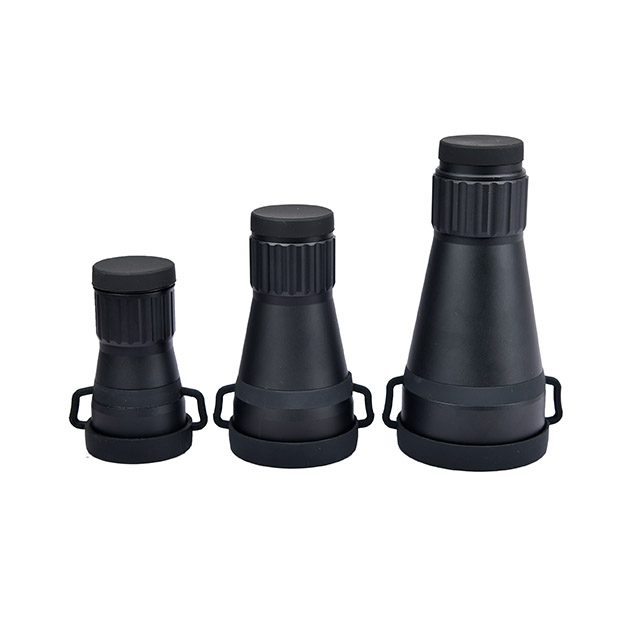

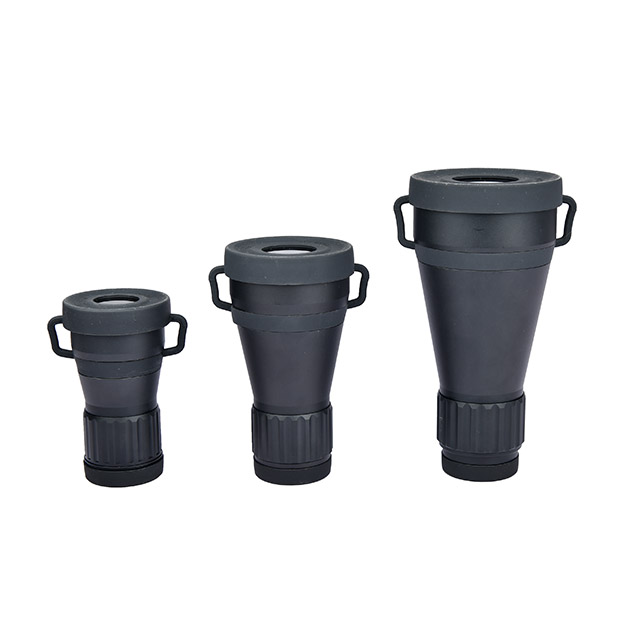

DT-ONX5 low-light objective lens is a high-performance universal objective lens that can be combined with low-light image intensifier to obtain high-resolution, low-light environment images. It can adapt to low-light night vision products. It has the technical advantages of strong adaptability to low illumination, high imaging quality, large magnification, small distortion, large aperture and other products. In addition, it also has the appearance advantages of light weight, high cost performance, simple design, beautiful and generous.
Availability:
Quantity:
  • DT-ONX4

DT-ONX4 low-light objective lens is a high-performance universal objective lens that can be combined with low-light image intensifier to obtain high-resolution, low-light environment images. It can adapt to low-light night vision products. It has the technical advantages of strong adaptability to low illumination, high imaging quality, large magnification, small distortion, large aperture and other products. In addition, it also has the appearance advantages of light weight, high cost performance, simple design, beautiful and generous.

Product Parameter:

4X objective lens

technical parameters

field of view


5to 10 degrees

optical dynameter

4X   Ф55  FL=70

relative illumination

95%

Optical aperture (objective)

F1.4

Optical MTF

150LP/mm

optical distortion

0.5%Max

focusing range

10M-∞

Focusing mode

manual operation

coating film


Multilayer composite ultra wideband blue film

material

High strength aviation aluminum

shock strength

>1000G

operating temperature range

-50--+80℃

humidity range

5%-95%

waterproofing grade

IP65/IP67

product dimensions

110x72x58

product weight

214g
