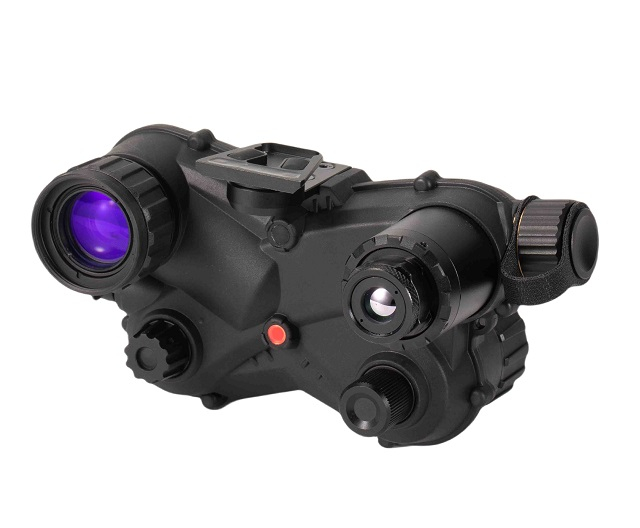

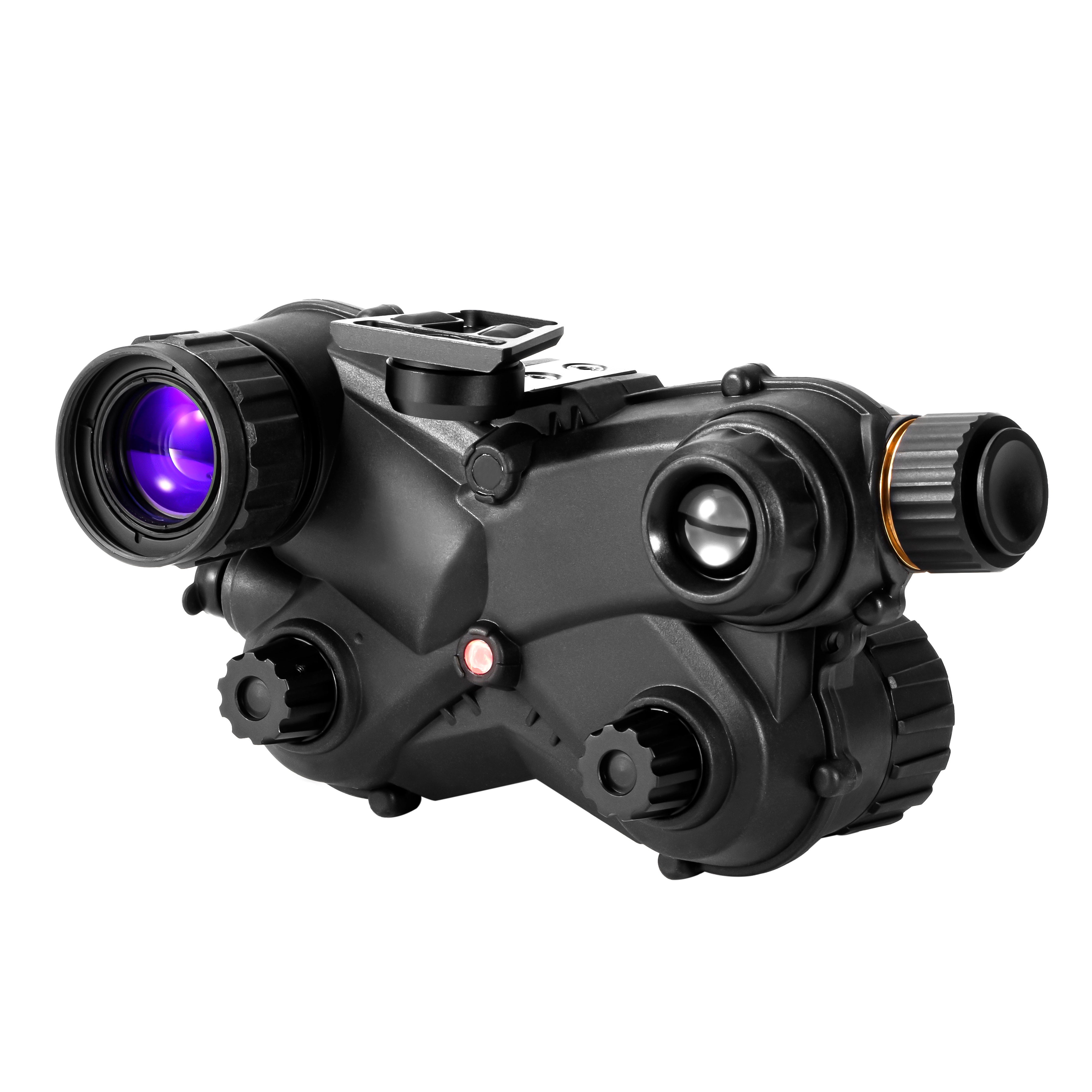

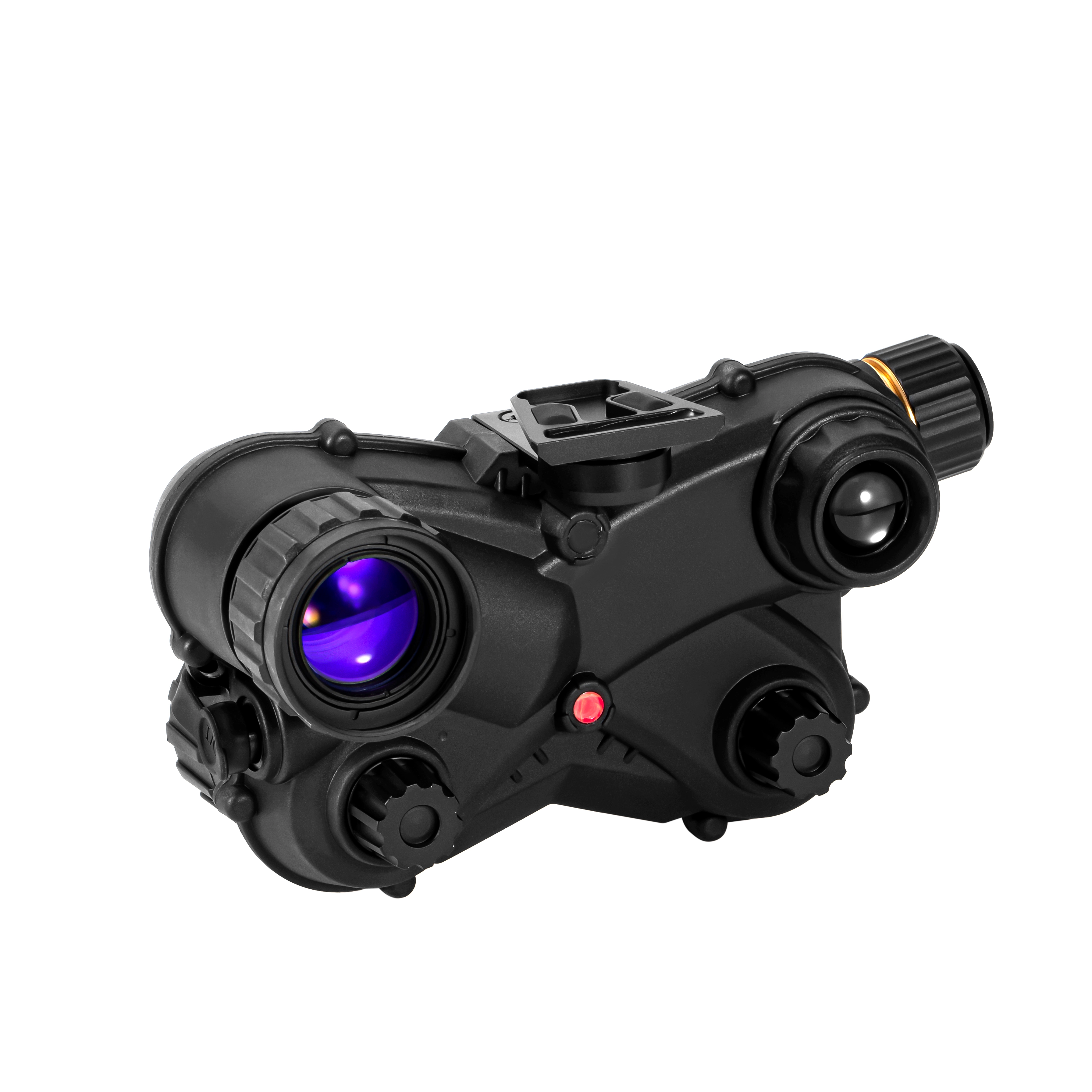

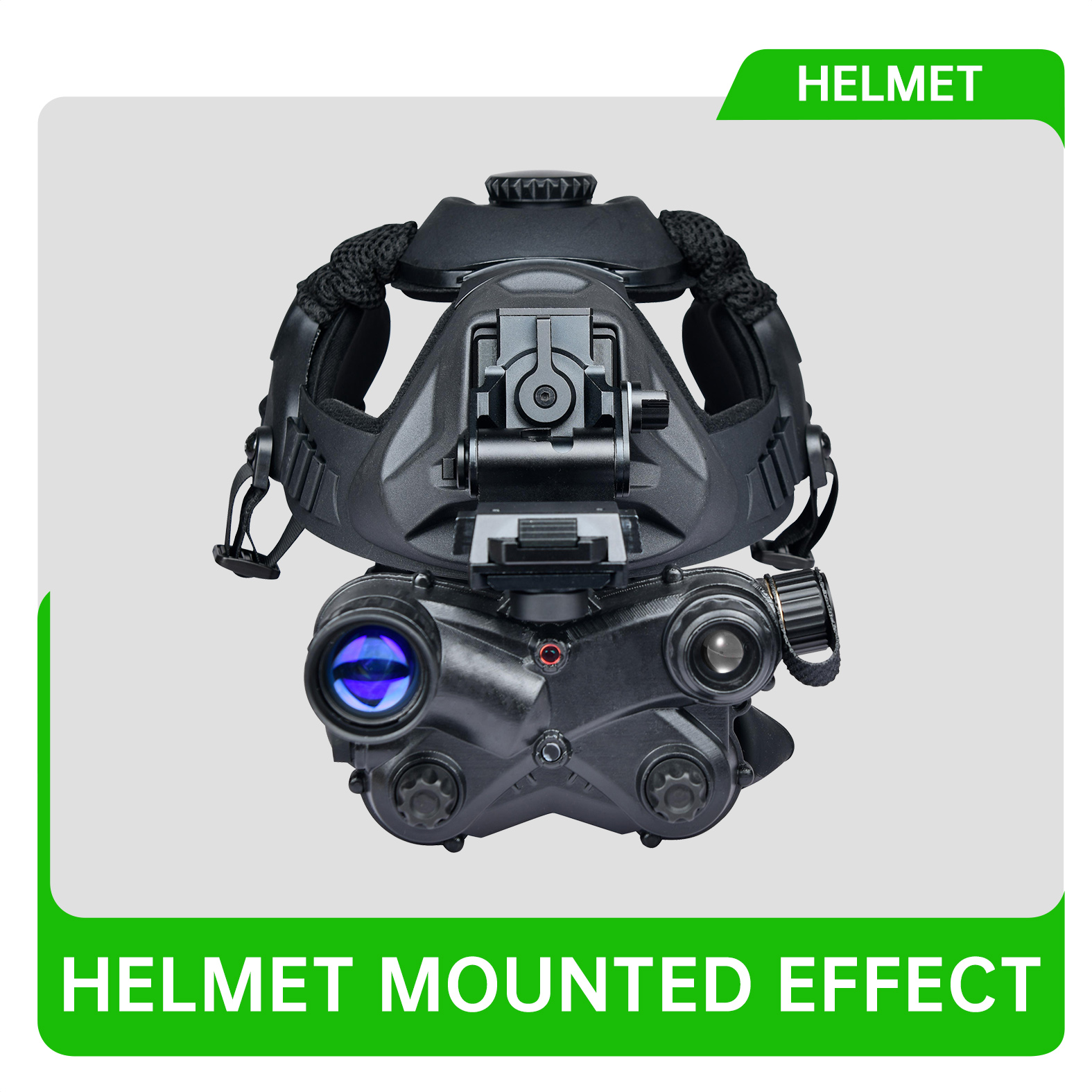

Night Vision Folding GogglesDTS-22N

DTS-22N is a foldable night vision device developed exclusively by Detyl Optoelectronics. It’s a balanced center of gravity design, a short wheelbase, and is comfortable to wear. It is not easy

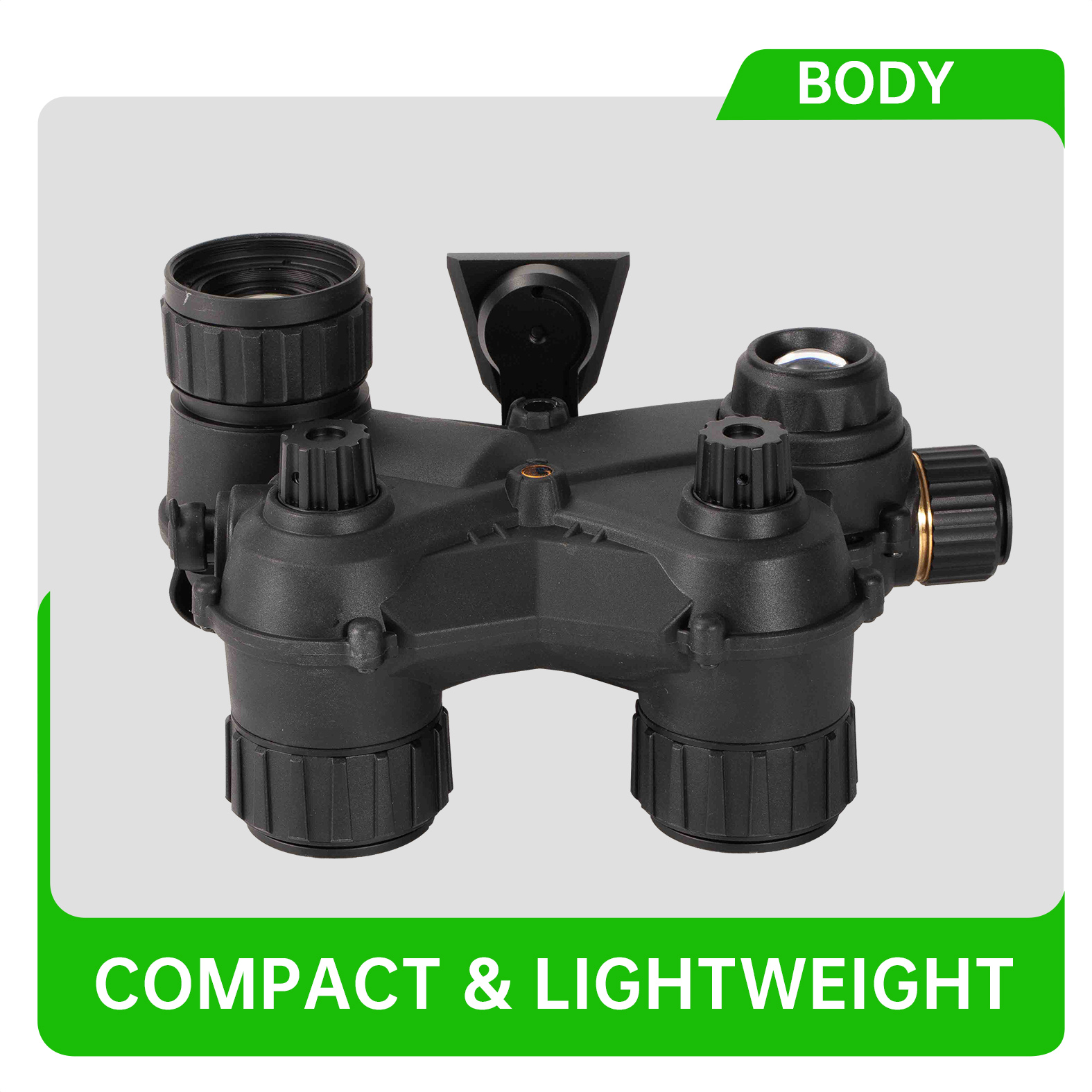

to get tired even after long-term use. It is the smallest dual night vision only 395g. DTS-22N has
three versions: night vision , information input , and thermal fusion . The thermal fusion not only
observe the surrounding environment in a dark environment, but also quickly identify living targets, greatly improving the night recognition ability
Availability:
Quantity:
  • DTS-22T

  • Detyl


22

221

Product feture:

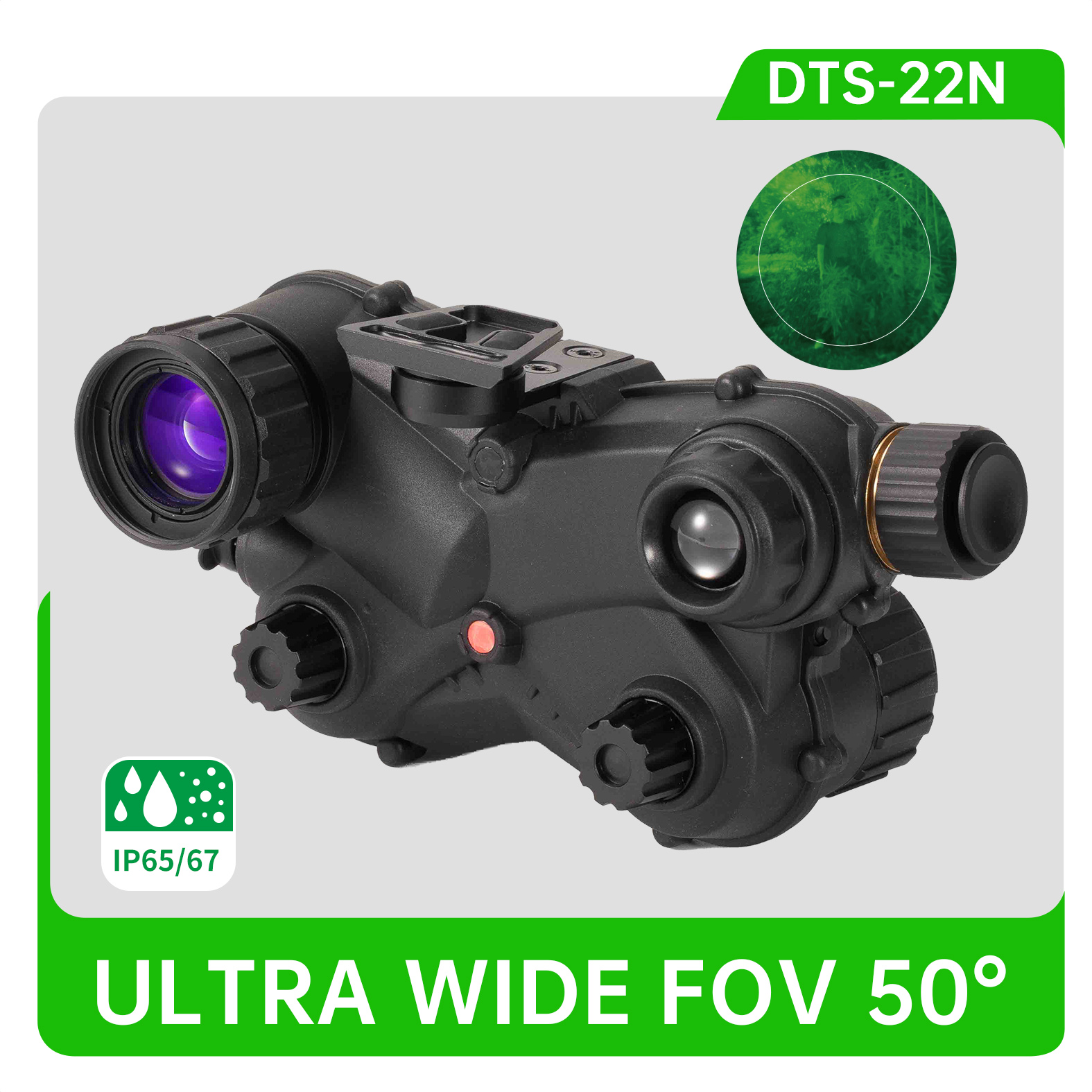

1.FOV 50 ° ,We are turly achieve FOV 50° .

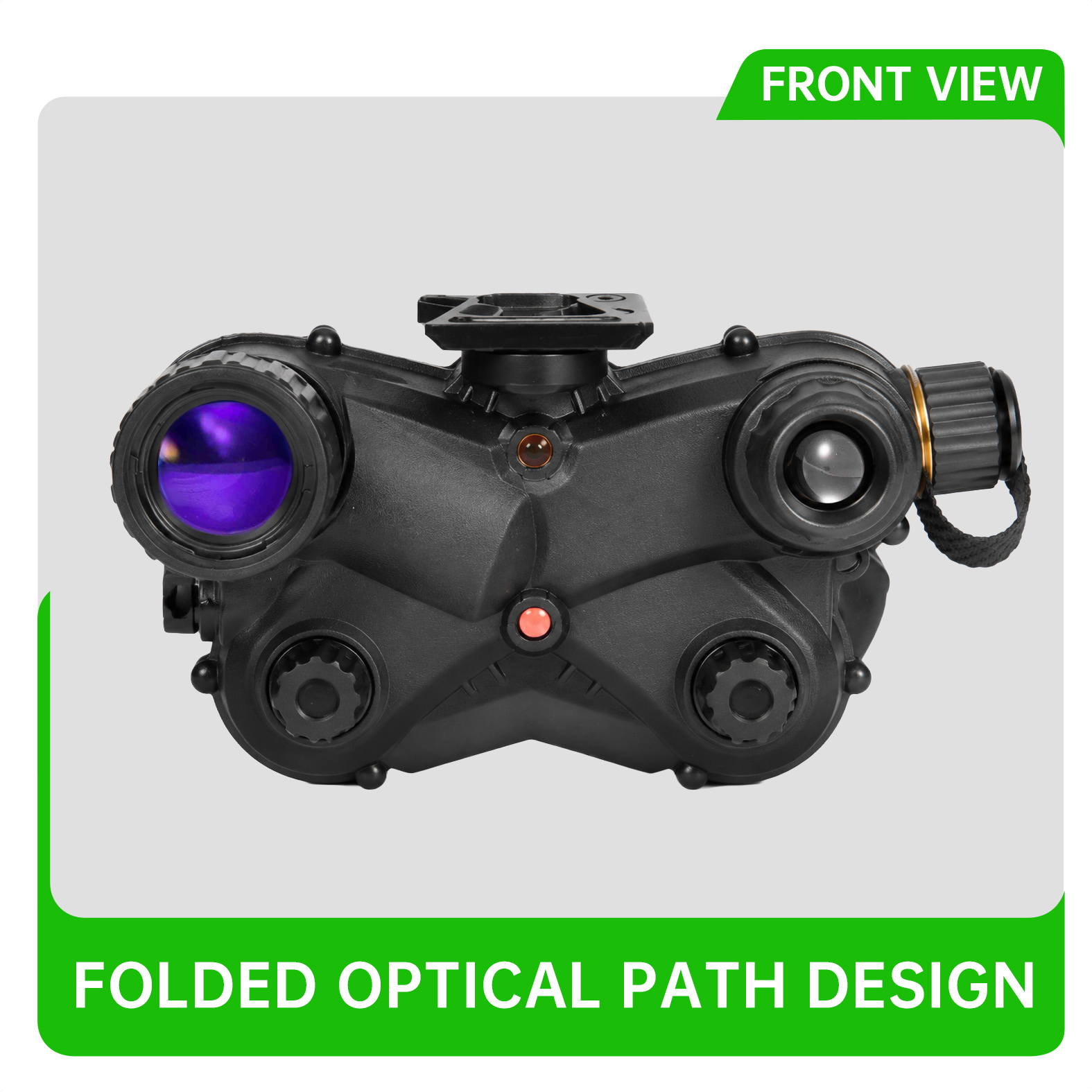

2. Adopt folding optical design,Face-fitting design
3.no distortion , full screen clearly without distortion
4. Built-in working indicator , keep abreast of the using status.
5. Night vision,Thermal fusion, Video Input, Range finder are 4 versions.
6.Long and short IR light can be selected.

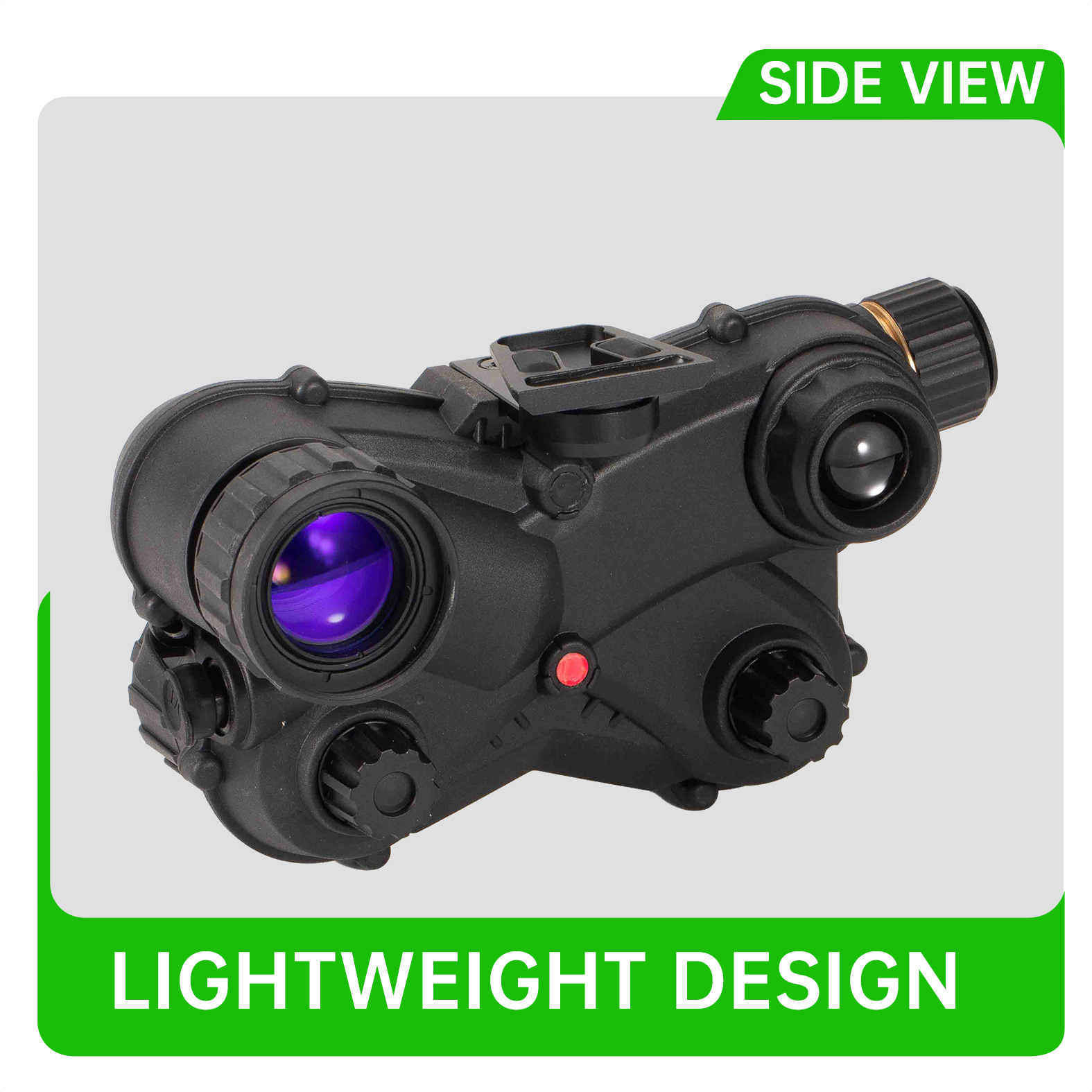

7. Center of gravity back, close to the face, head wear comfortable,lightweight to wear
8.We achieved Flip up down ON/OFF (must use the original Detyl mounts).
9. Universal battery design, both CR123 battery and AA battery can be used.
10. The waterproof can reach IP65/IP67.

Product description:

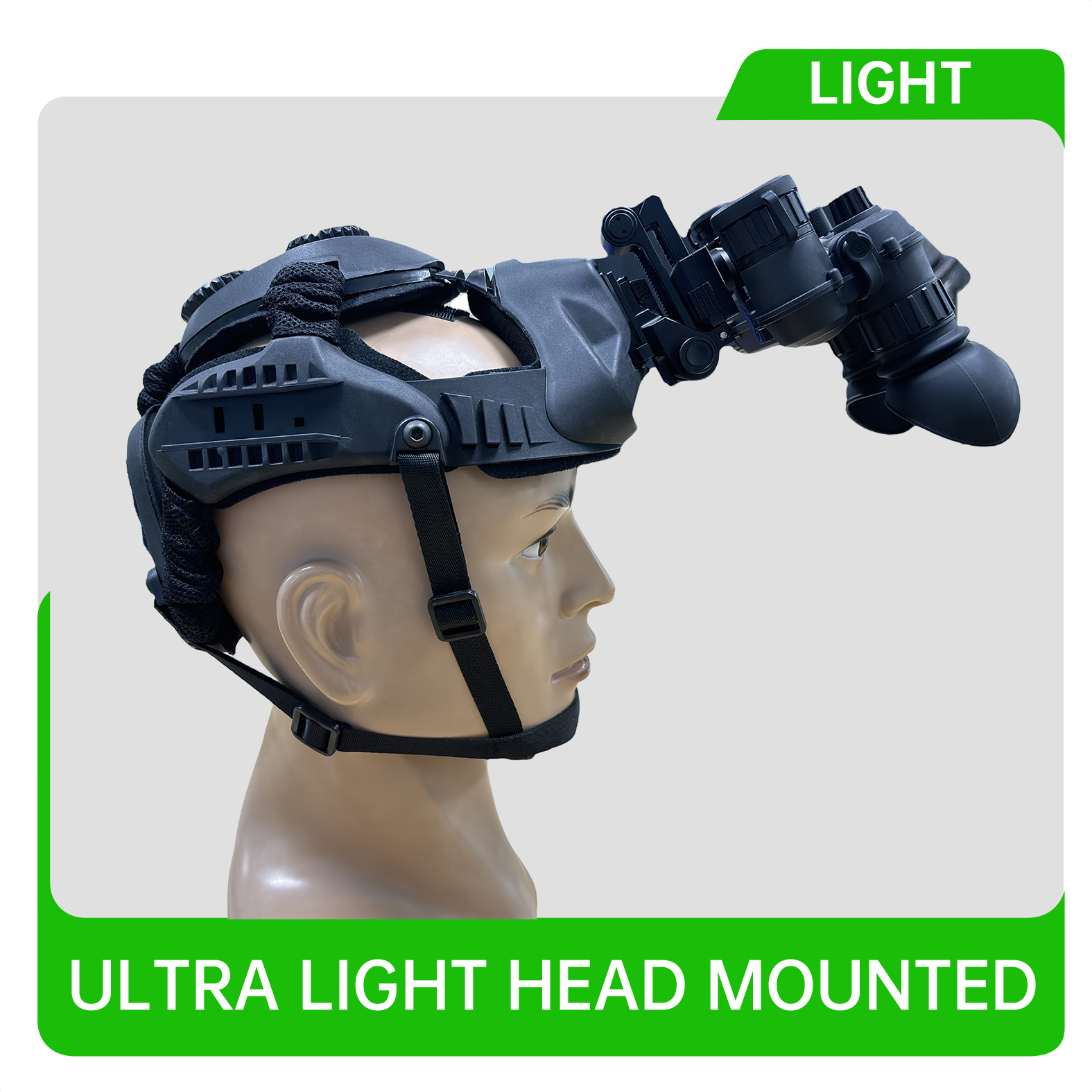

DTS-22n is a high-performance military head mounted night vision binocular built by Detyl Optoelectronics .DTS-22n has the characteristics of large field of view, high definition, no distortion, light weight, high strength (the overall performance is much better than the original version of the U.S. military products), which is the ideal choice for military night equipment.


Technical specifications:

MODEL

DTS-22N

DTS-22N(Thermal fusion)

Generation

Gen 2+/Gen3(optional)

Gen 2+/Gen3(optional)

Magnification

1X

1X

FOV(°)

50+/-2

50+/-2

Diopter

+ / - 5

+ / - 5

Battery type(v)

CR123A(1)/AA(1)/CR123A(4) external battery pack

CR123A(1)/AA(1)/CR123A(4)

external battery pack

Power supply(v)

1.2-1.6/2.5-4.2

1.2-1.6/2.5-4.2

Battery capacity

300-3200maH

300-3200maH

Total Darkness IR System

YES

YES

Automatic Brightness Control

YES

YES

Bright Light Cut-off

YES

YES

Infrared Illuminator

Built-in(850nm 20mW)

Built-in(850nm 20mW)

IR Indicator

YES

YES

Low Battery Indicator

YES

YES

Optical distortion

0.5% Max

0.5% Max

Relative Illumination

>75%

>75%

Distance of pupil

30-35mm

30-35mm

Eyepiece aperture

9mm

9mm

Display resolution

1280x720

1280x720

Thermal image wavelength


8-12uM

Thermal image resolution


384x288

Fusion mode


Optical fusion

Operating temperature(℃)

-40--+55

-40--+55

Relative humility

5%-95%

5%-95%

Waterproof

IP65/IP67

IP65/IP67

Dimensions(mm)

80x132x81

80x132x81

Wight(g)

360g(housing)/430g(finished)

380g(housing)/450g(finished)
