DT-Z3X
Product Description:

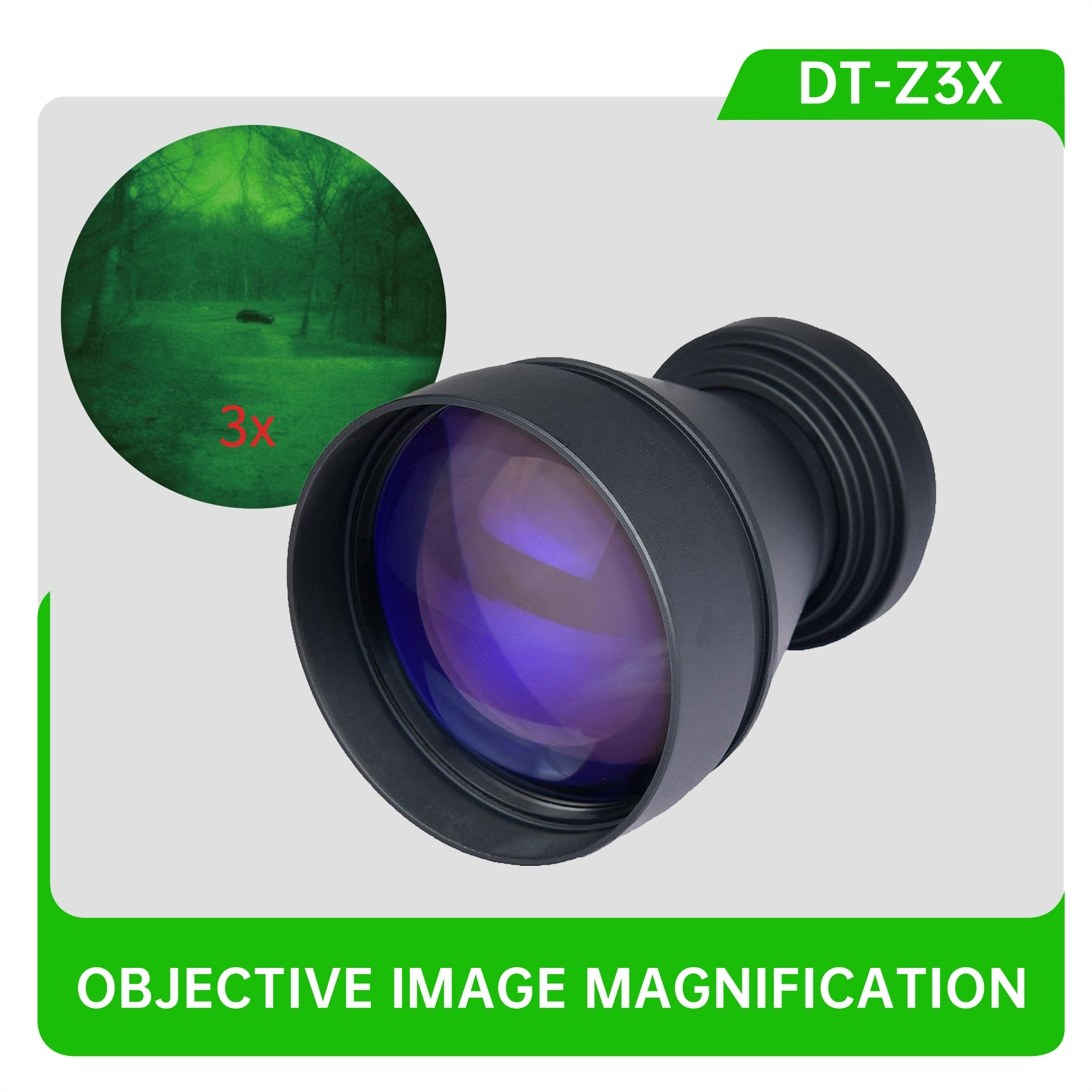

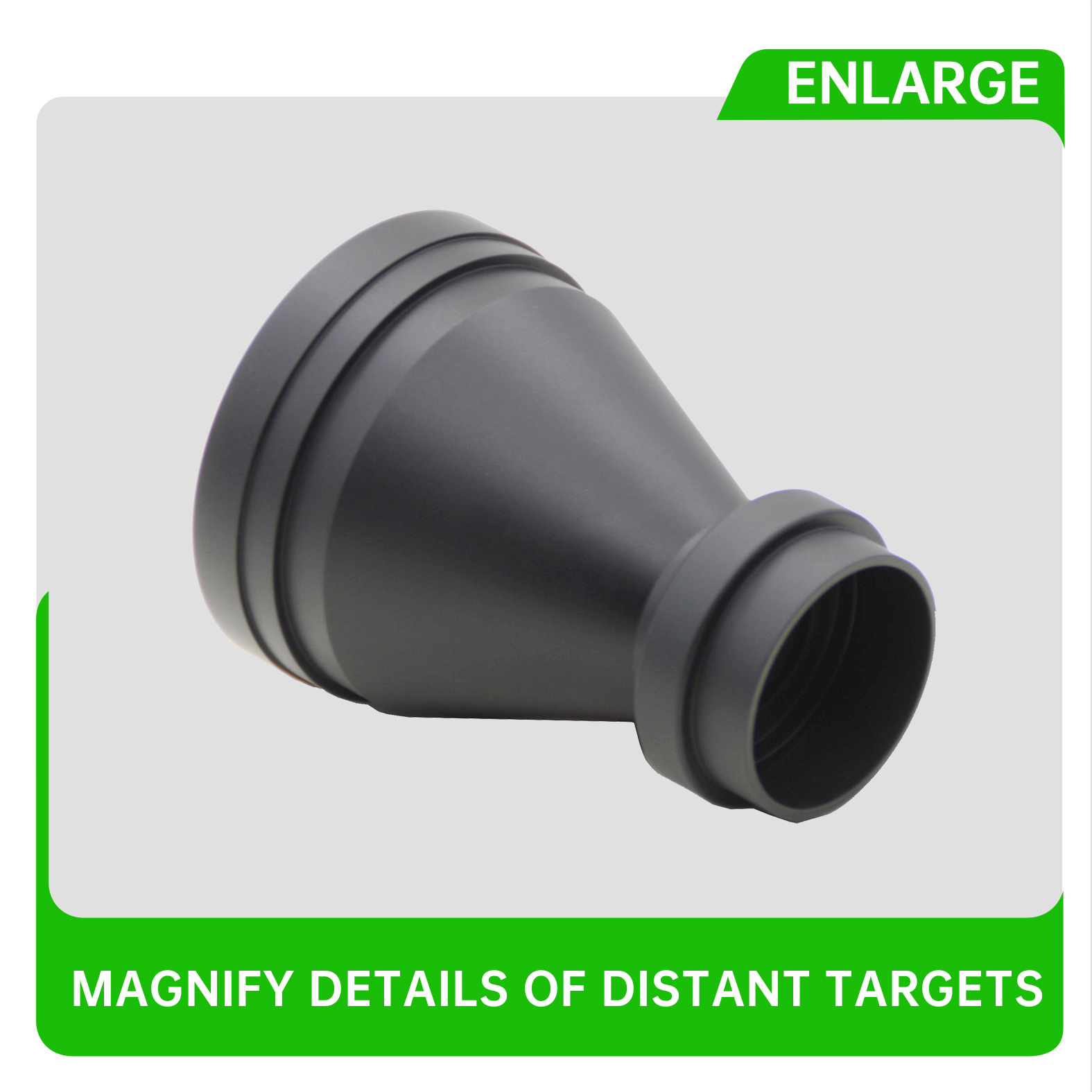

A focal lens DT-Z3X & Z5X has independent intellectual property rights, high performance large
aperture, suitable for night vision products optical image multiplier magnifying lens.This doubling
lens adopts high-tech multilayer compositeion coating technology and high-tech optical technology
system design simulation technology
Technical specifications:

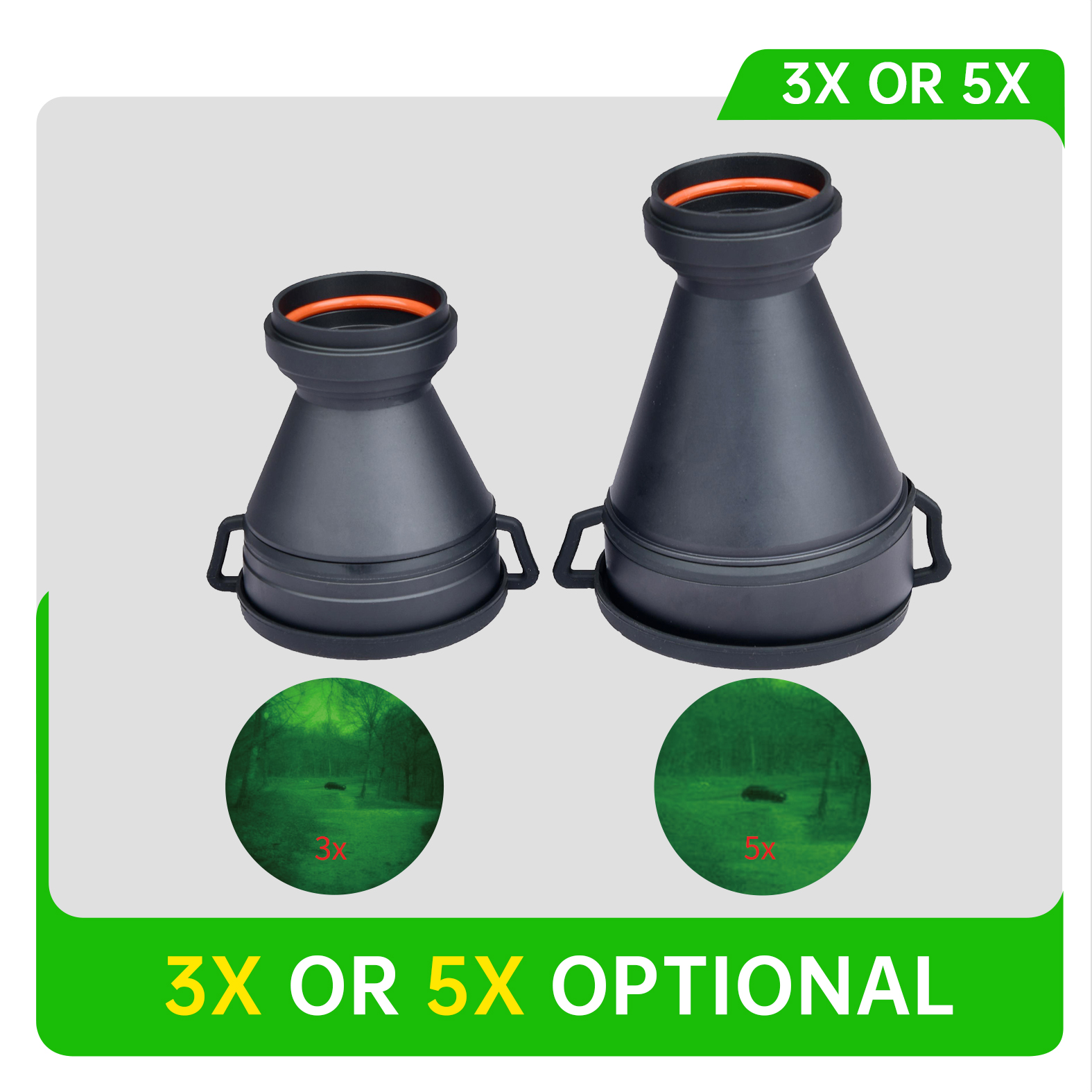

Mode | Z3X | Z5X | remarks |

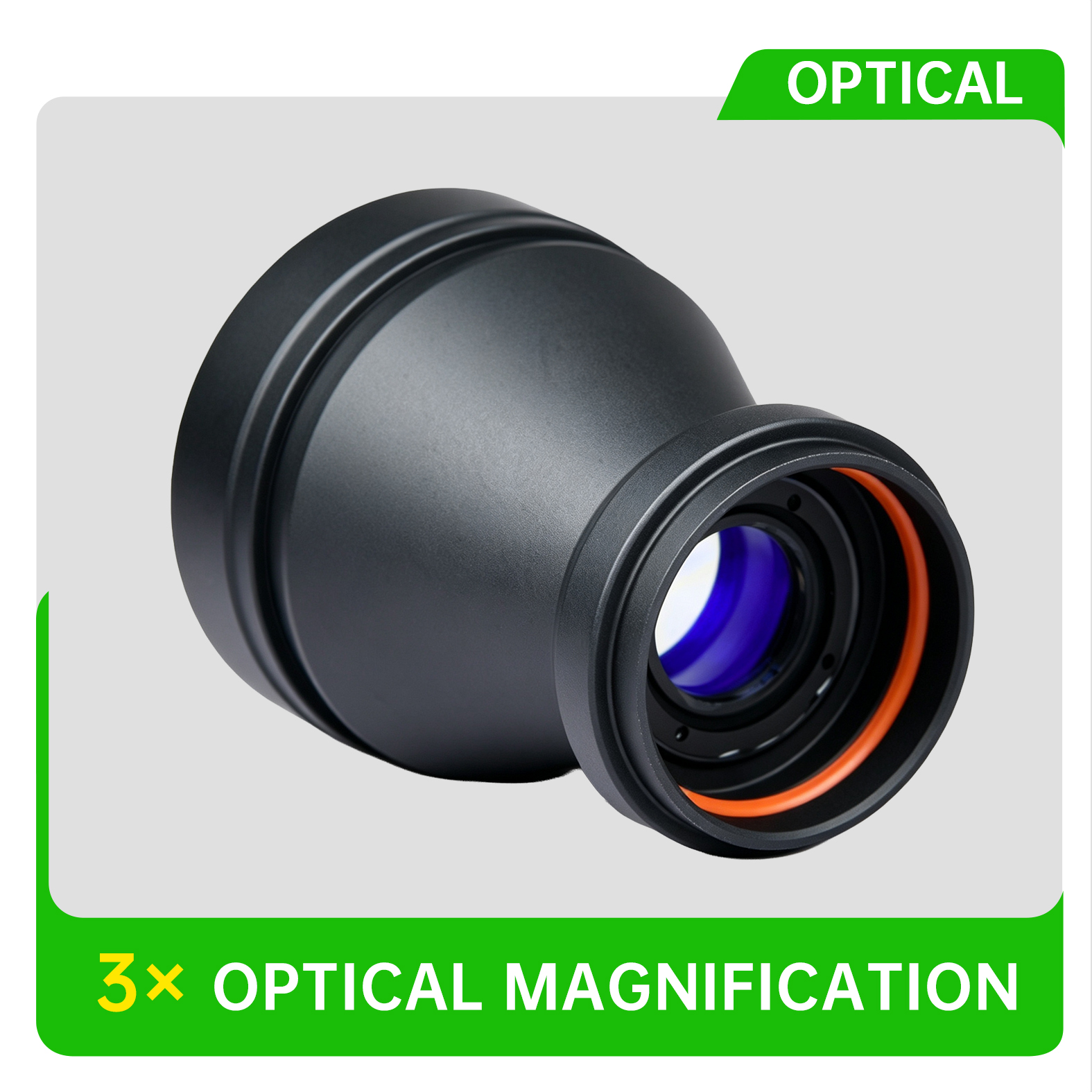

Magnification | 3X | 5X | Objective image magnification |
pupil | 50mm | 70mm | Maximum clear aperture |
distortion | <2% | <3% | Multiplier System Distortion |
relative illuminance | >70% | 70% | Multiplier system relative illuminance |
transmittance | >99.5% | >99.5% | Monolithic transmittance |
wavelength range | 420-850 | 420-850 | Band pass plus single point |

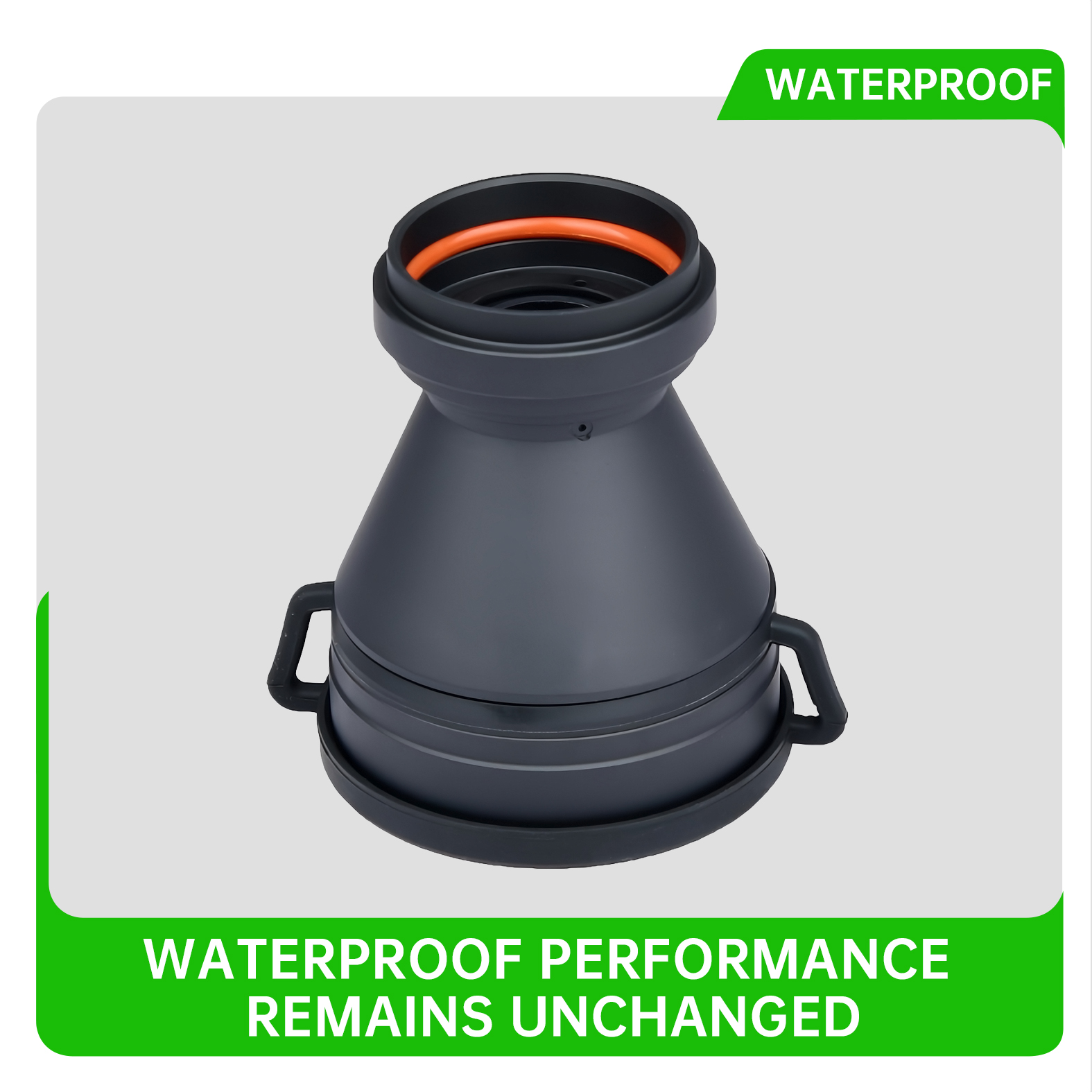

lens protection | Waterproof + salt spray | Waterproof + salt spray | Process only the first side of the lens |

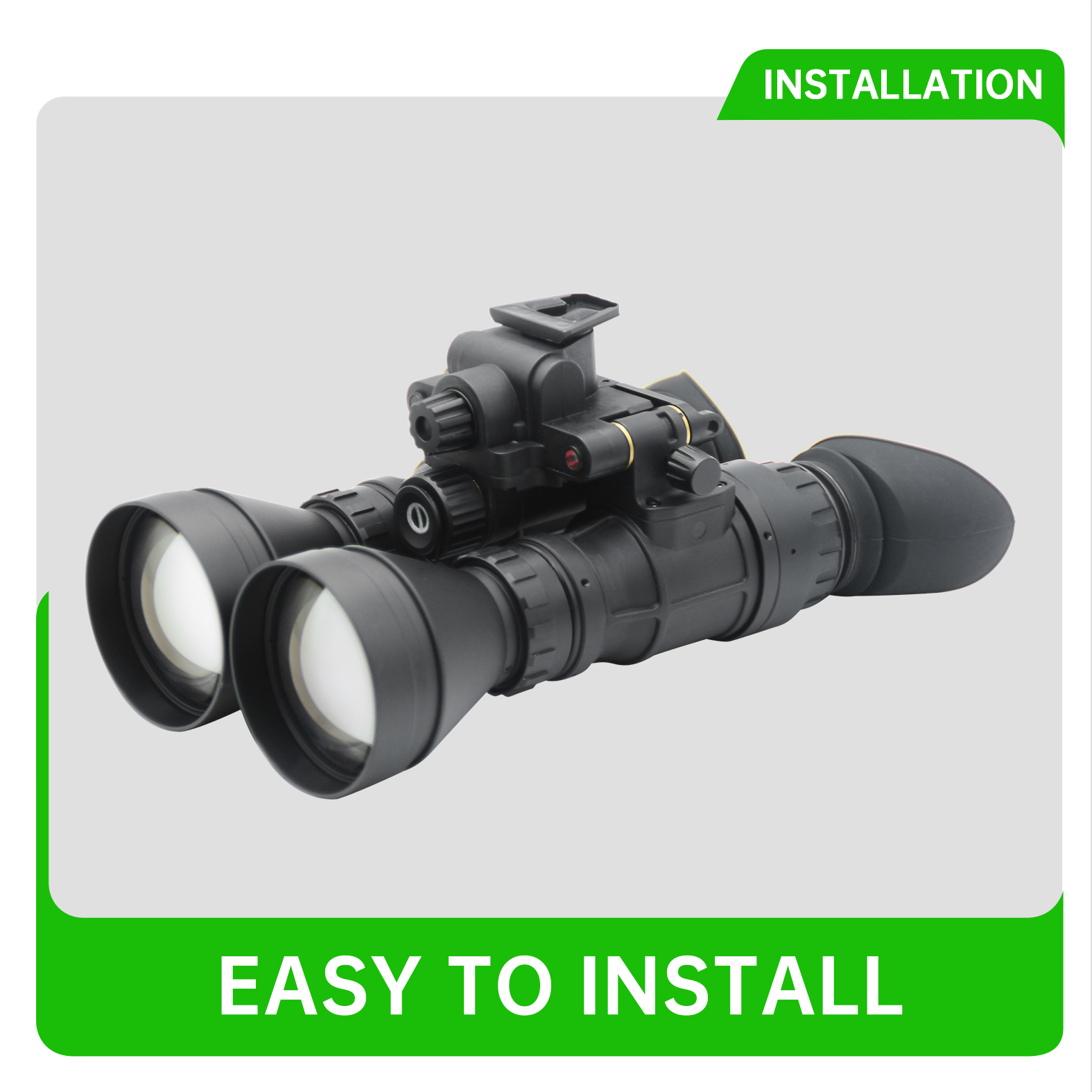

Installation method | Thread/connecting ring | Thread/connecting ring | Screws directly to the objective thread, also with a coupling ring |
Product Size | Φ62x65mm | Φ72x82 | Connection ring and packaging not included |
product weight | 228 grams | Connection ring and packaging not included |
