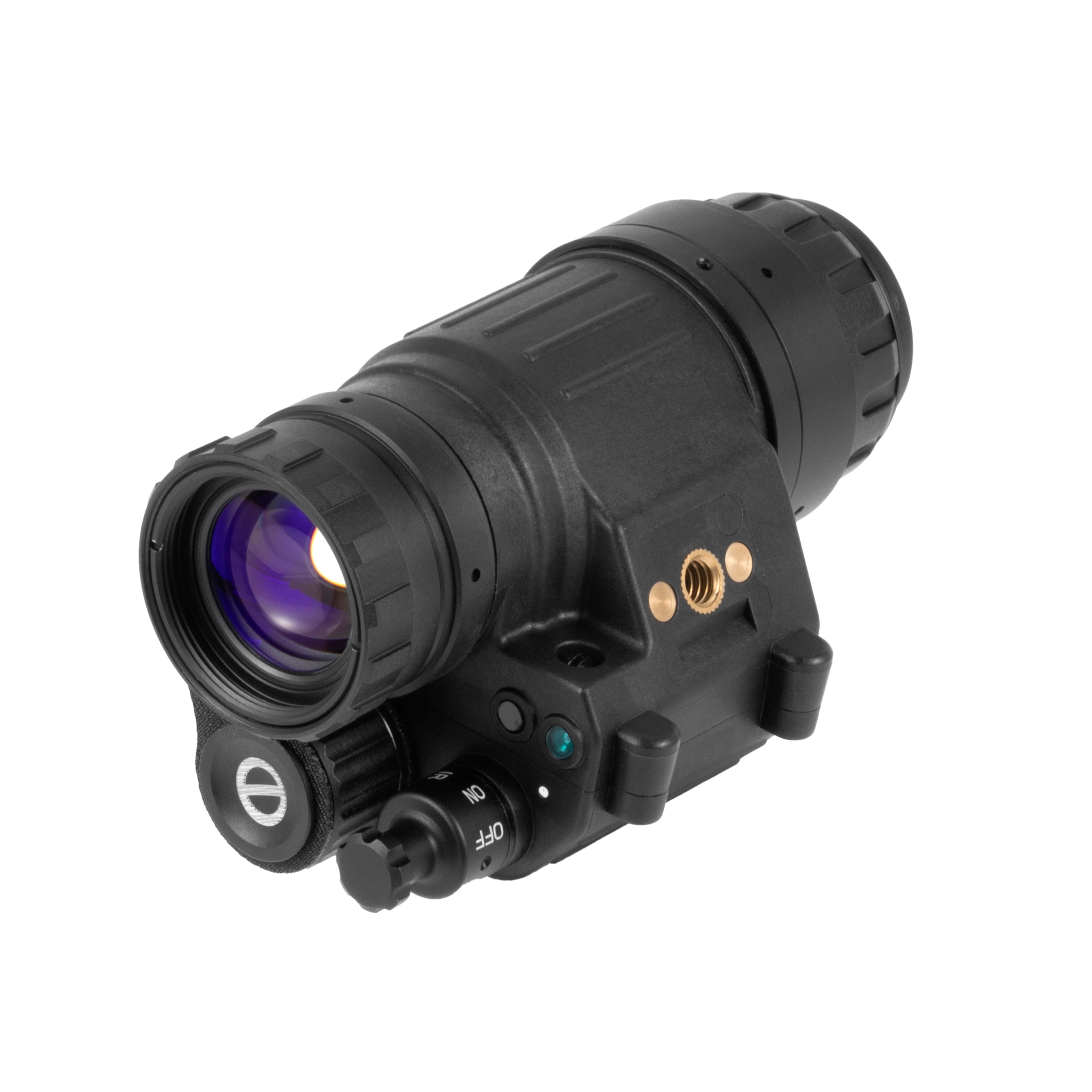

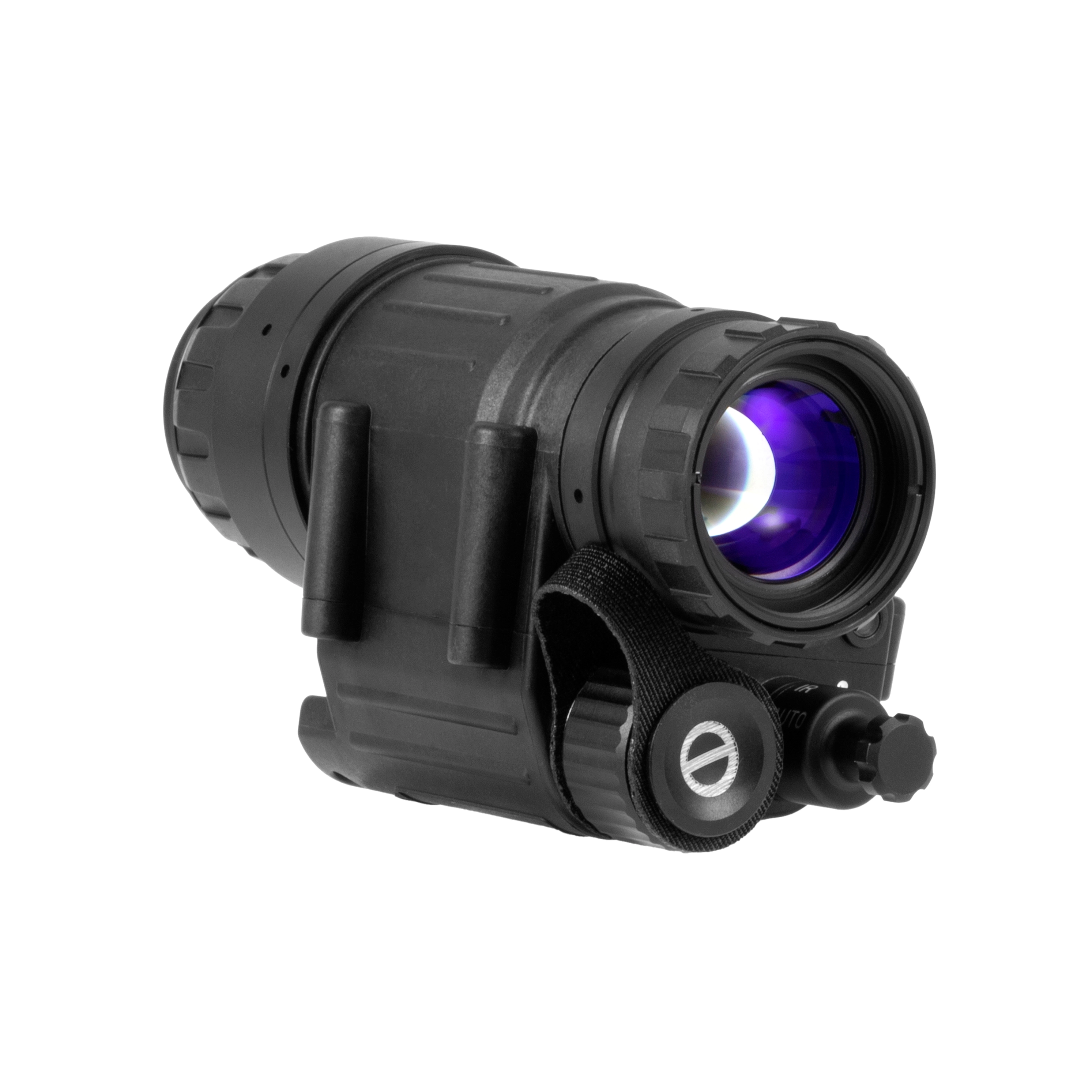

Military Night Vision Monoculars DTS-14

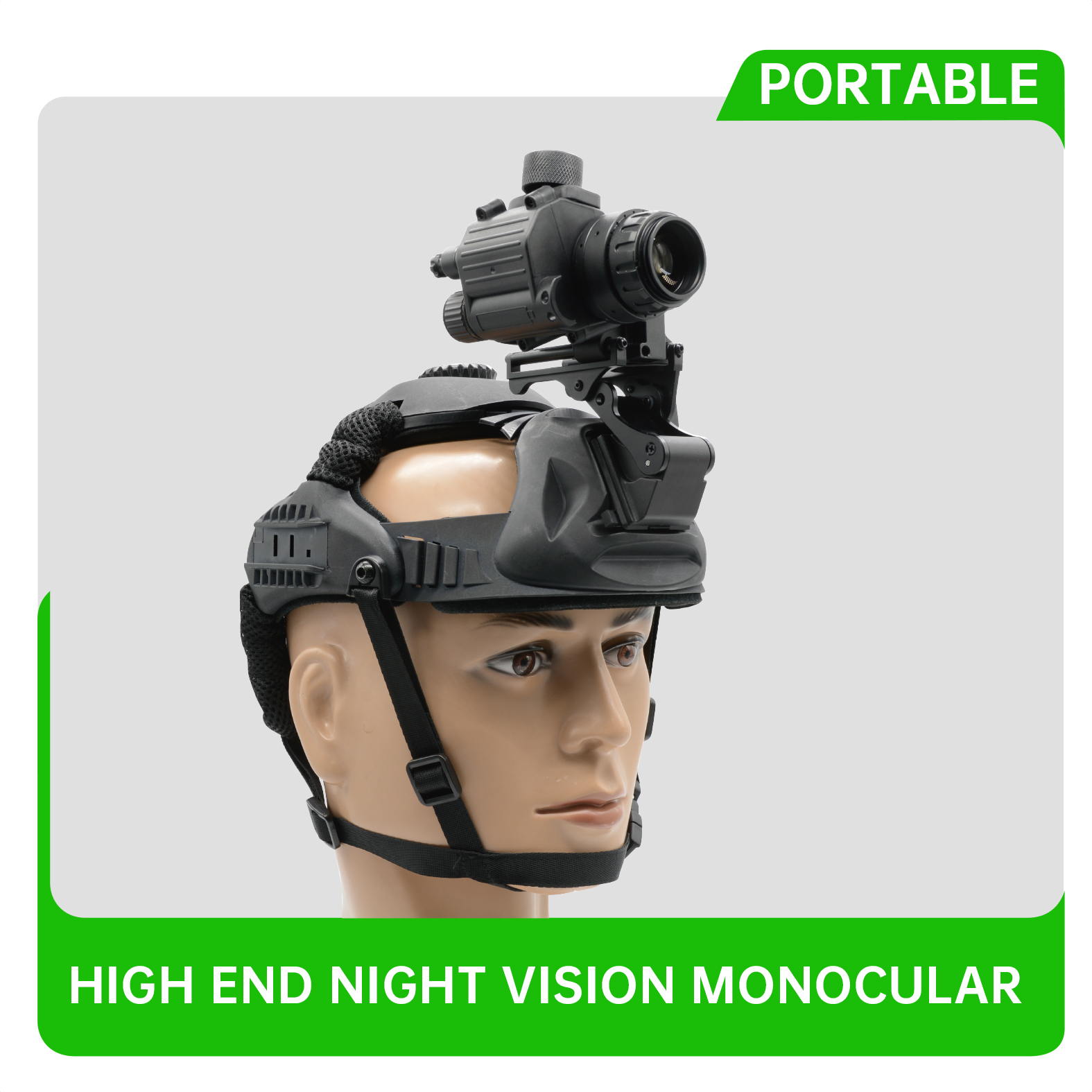

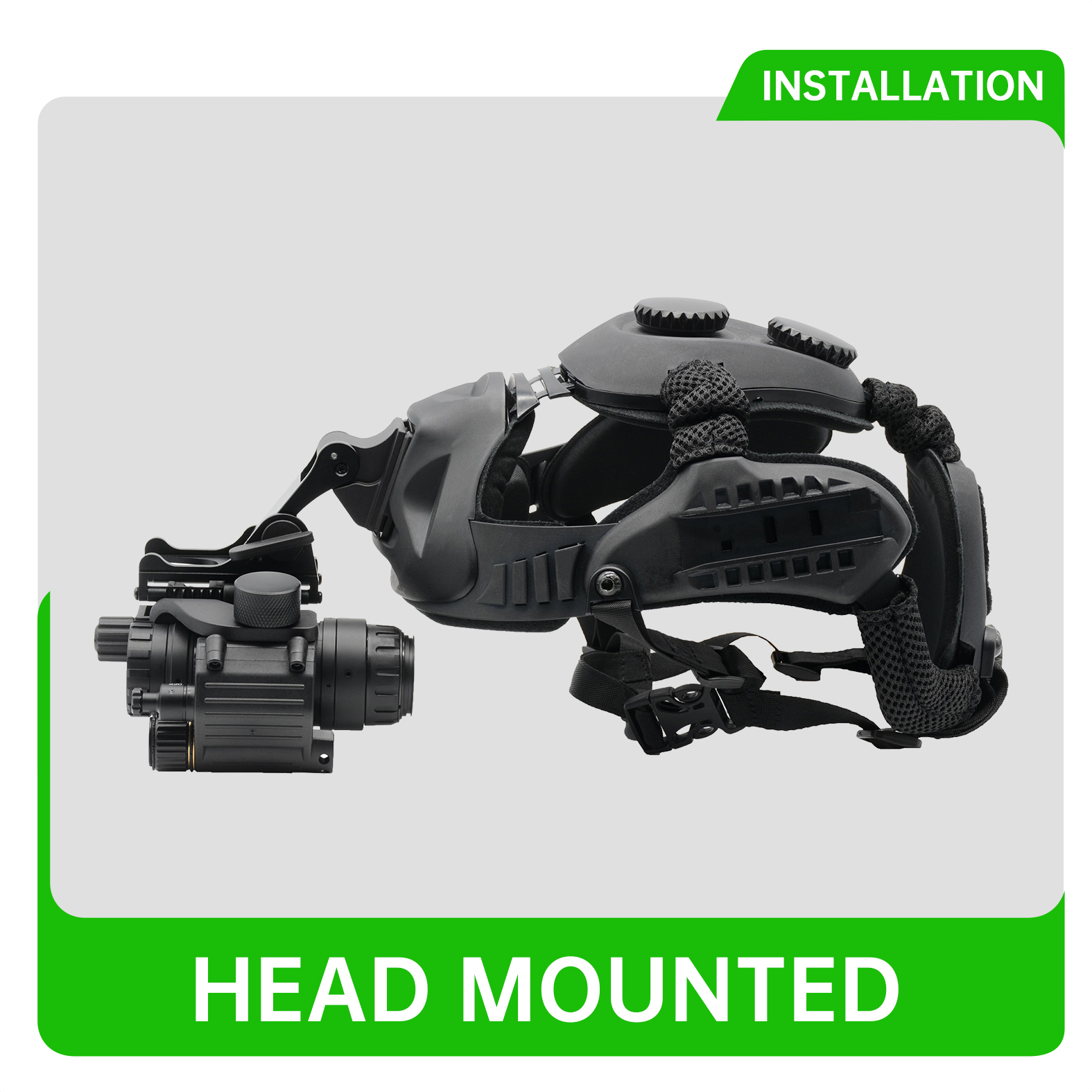

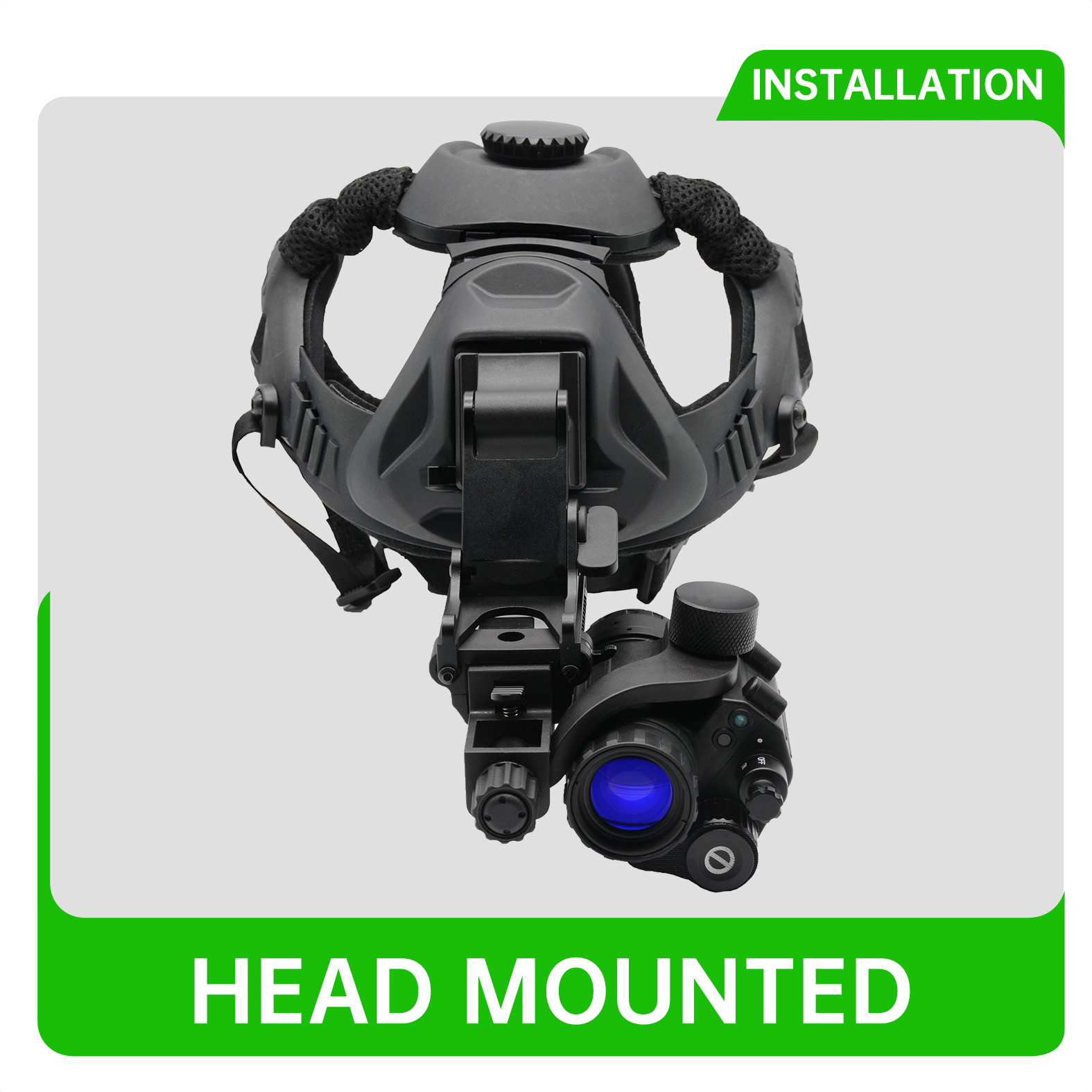

DTS-14 night vision is a new product developed based on Detyl technology with a field of view of 50 degrees. The quality is military standard and can be mounted on helmets. it an be changed by replacing the A focal lens. It has a built-in IR and an autogated system.

FOV:	40/50 deg
Weight:	240 g
Service:	ODM/OEM
Availability:

Quantity:



Inquire Add to Basket

Model:
DTS-14
Brand:
Detyl

微信图片_20240511103642

Product Feature:

1. IP65 waterproof standard(IP67 optional);
2. Build in IR indicator and low battery indicator;
3. Mil-spec multi-coated optics;
4. 30mm diameter eyepeice lens;
5.use CR123A battery, AA battery
6. AUTO shut OFF/ON when flip up/down, save power when not use;
7. Offer 3X and 5X magnifier lens;
8. Eyepiece lens and objective lens coated with demist coating;
9. Offer sacrificial windows(optional);
10. Strong light auto shut off;

Night vision outdoor equipment military and police supplies military equipment PVS14 NVG Night vision monoculars gen3 autogated FOM 1800

Product Catalog

Contact Us

(+86)15625269625

jenny@detyl.com

301A/3F (Yanluo-Chuanggu Park), No. 96, Yangyong Road, Tang sha Chung Community, Song-gang Town , Baoan District, Shenzhen, China.

MODE	DTS-14
Generation	Gen 2+/Gen3(optional)
Magnification	1X
Resolution ( lp/mm)	60-64
S/N （dB）	18-24
Luminous sensitivity（uA/lm）	600-800

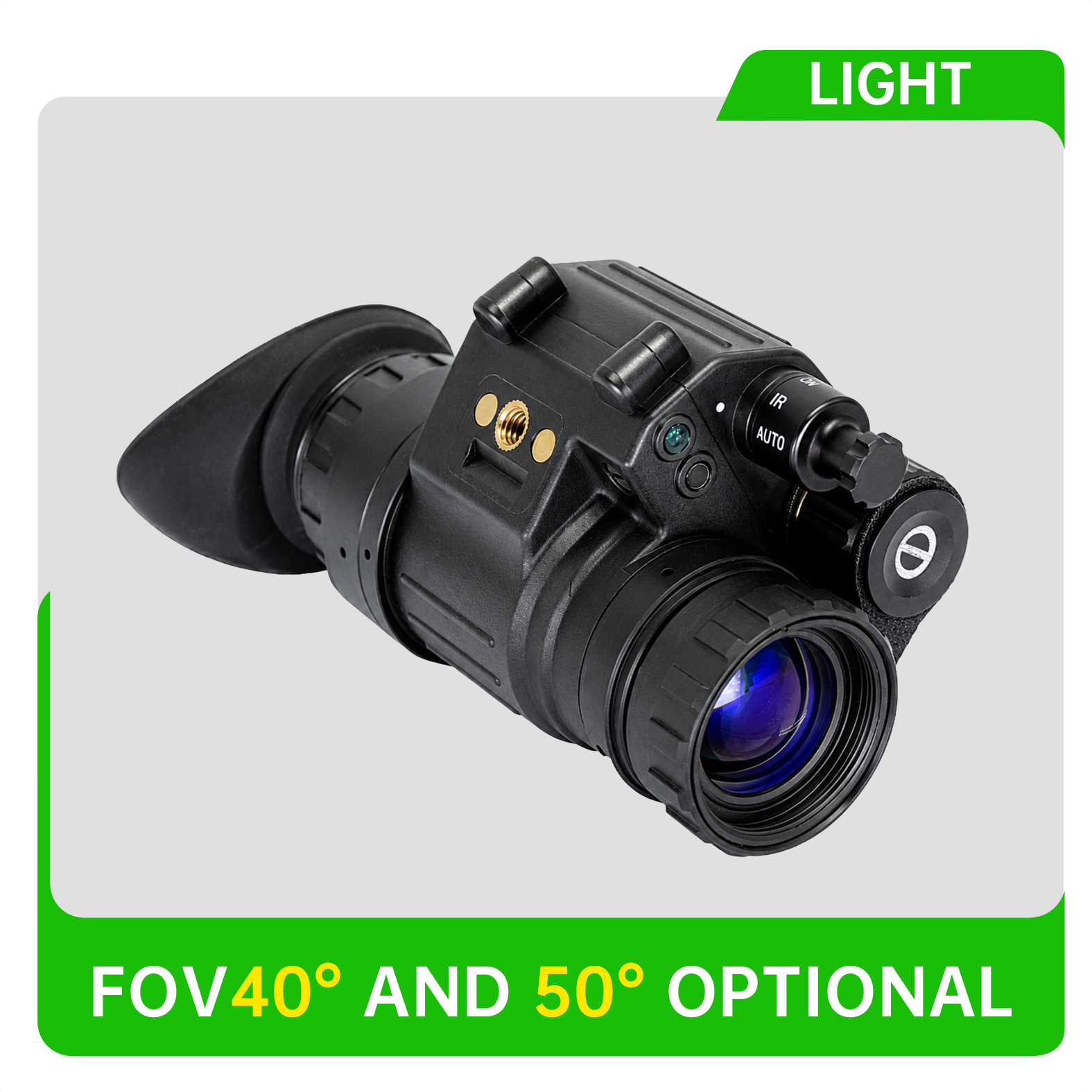

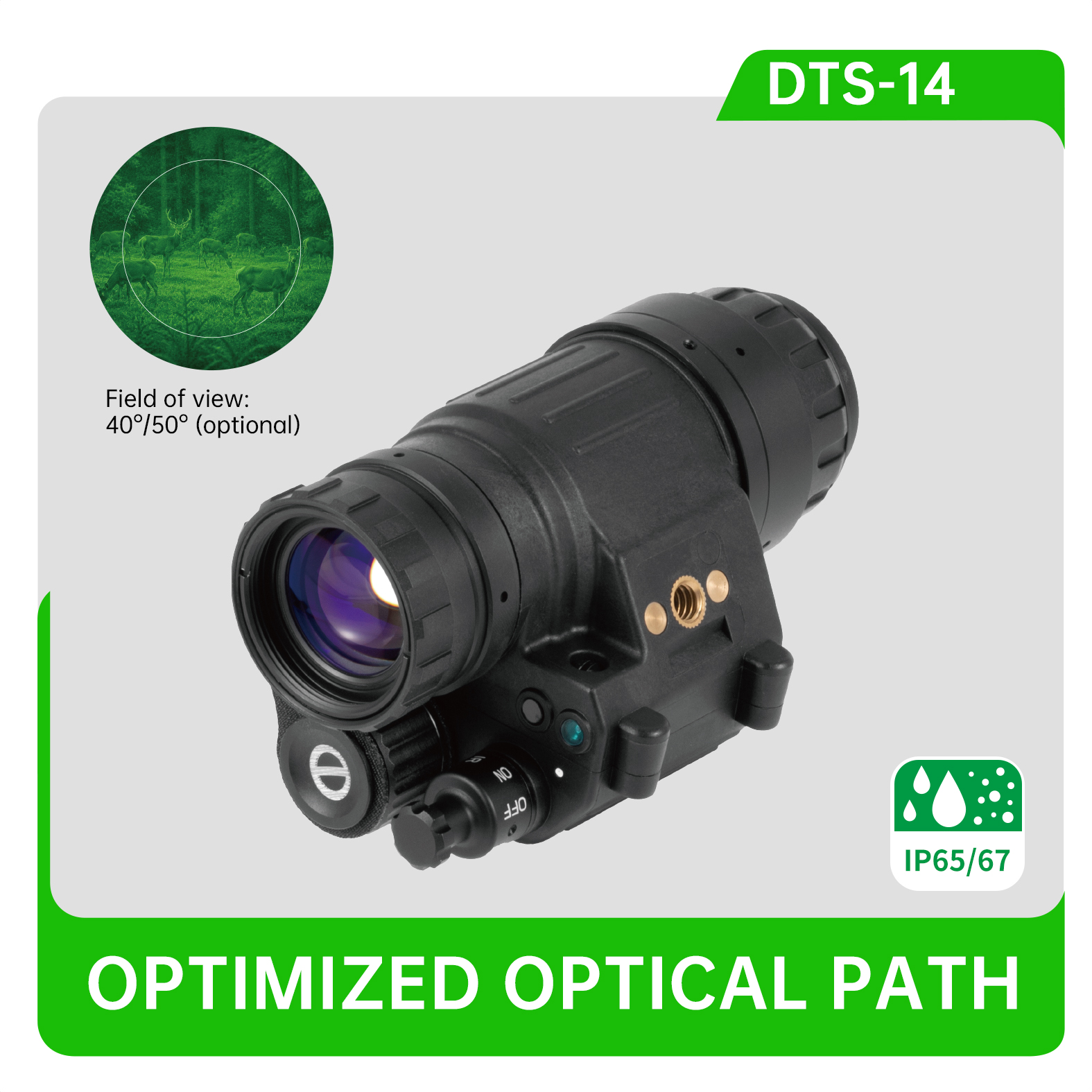

FOV(°)	50+/-2 (40 optional)
Diopter	-6~+4 / -4~+6
Capability	Flip-Up On-Off
Automatic Brightness Control	YES
Bright Light Cut-off	YES
Infrared Illuminator	Built-in(850nm 10mW)
IR Indicator	YES
Low Battery Indicator	YES

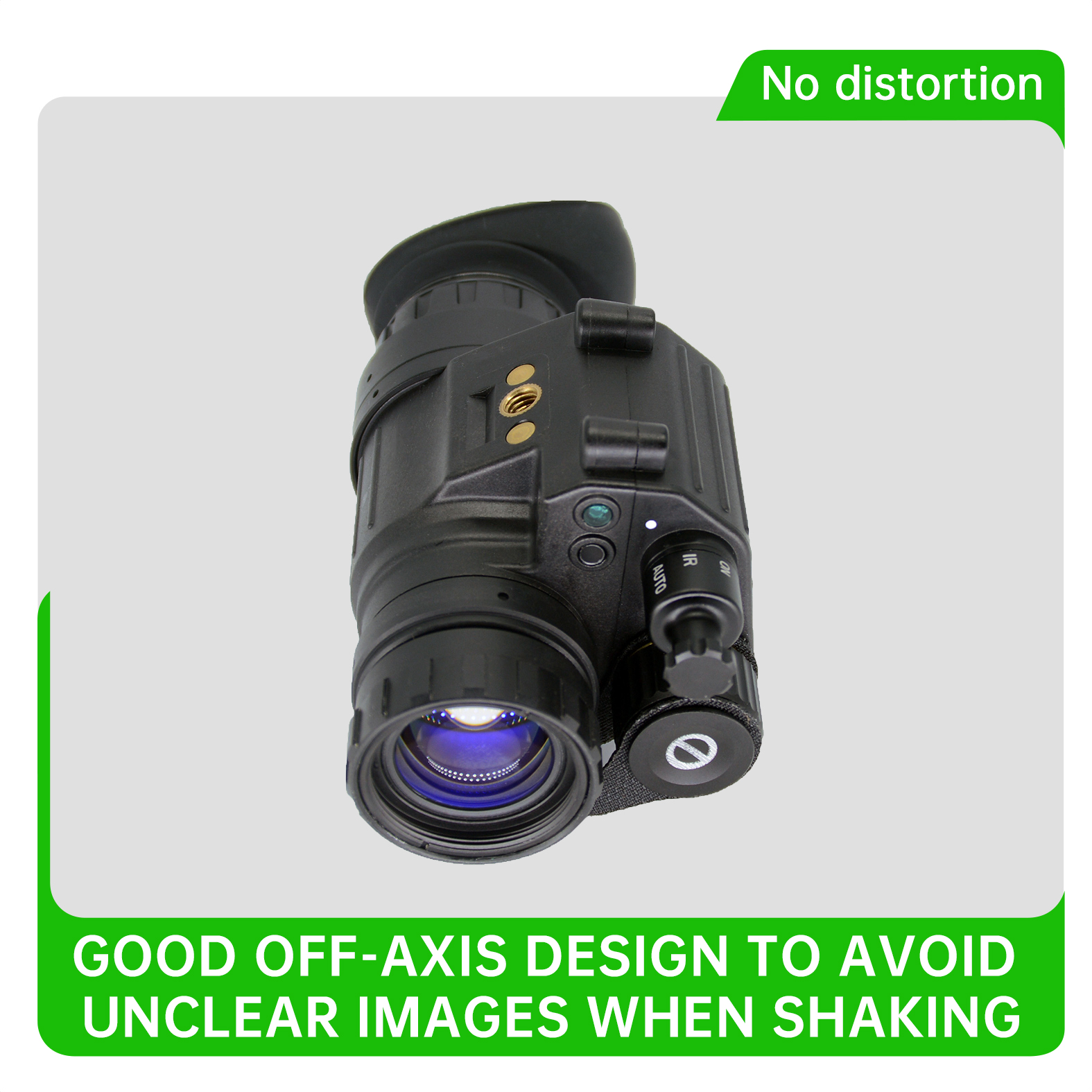

Optical distortion	<0.5%
Pupil distance（mm）	20-45
Battery Voltage	1.2-1.6V/2.4-4.2V
Battery type	CR123(A)x1/AA（1）
Temperature range（℃）	-40/+55
Humidity range	5%-98%
Waterproof	IP65（IP67 optional）
Dimensions（mm）	110x63x42
Weight（no battery）	180g(housing)/240g(finished)

MODE	DTS-14
Generation	Gen 2+/Gen3(optional)
Magnification	1X
Resolution ( lp/mm)	60-64
S/N （dB）	18-24
Luminous sensitivity（uA/lm）	600-800
FOV(°)	50+/-2 (40 optional)
Diopter	-6~+4 / -4~+6
Capability	Flip-Up On-Off
Automatic Brightness Control	YES
Bright Light Cut-off	YES
Infrared Illuminator	Built-in(850nm 10mW)
IR Indicator	YES
Low Battery Indicator	YES
Optical distortion	<0.5%
Pupil distance（mm）	20-45
Battery Voltage	1.2-1.6V/2.4-4.2V
Battery type	CR123(A)x1/AA（1）
Temperature range（℃）	-40/+55
Humidity range	5%-98%
Waterproof	IP65（IP67 optional）
Dimensions（mm）	110x63x42
Weight（no battery）	180g(housing)/240g(finished)
