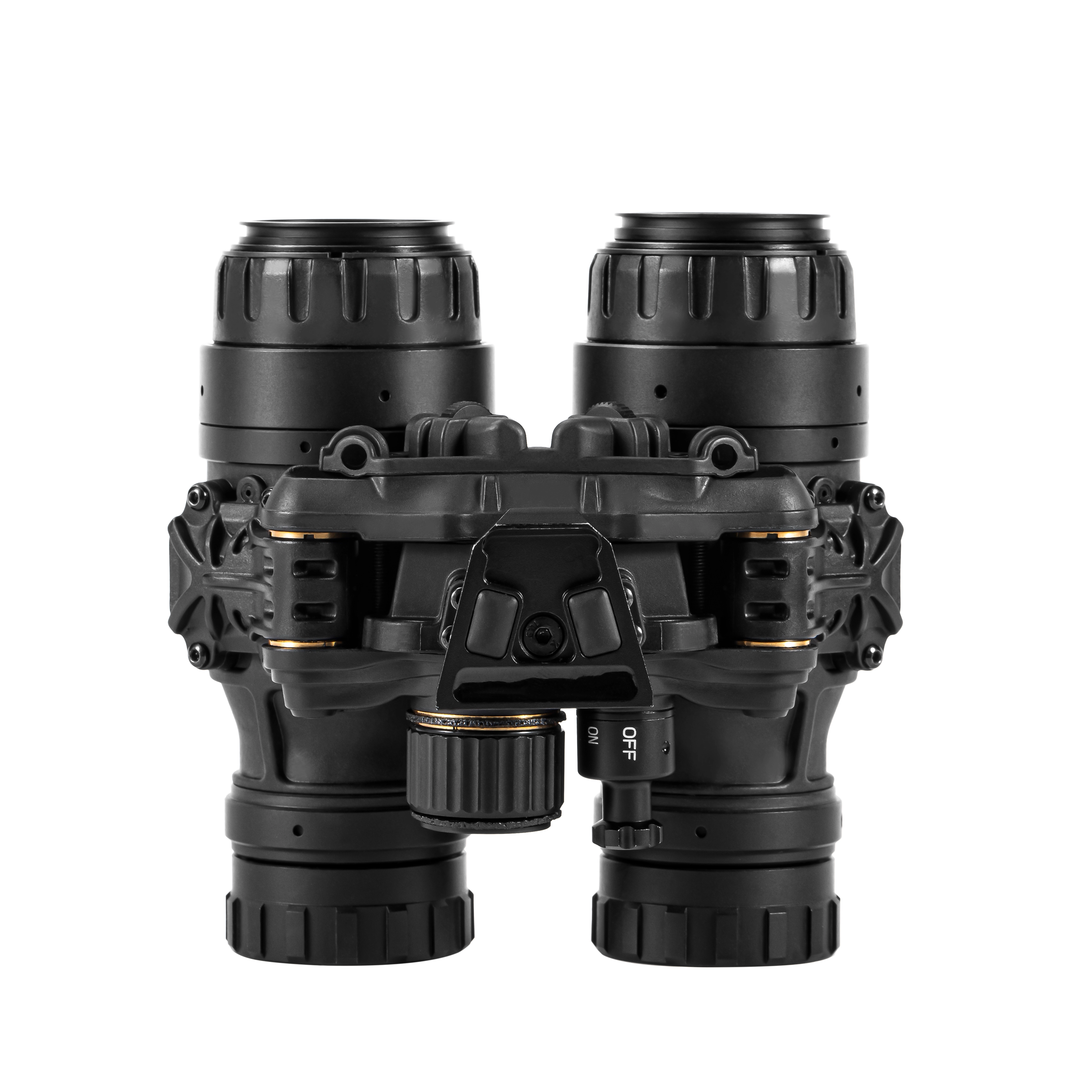

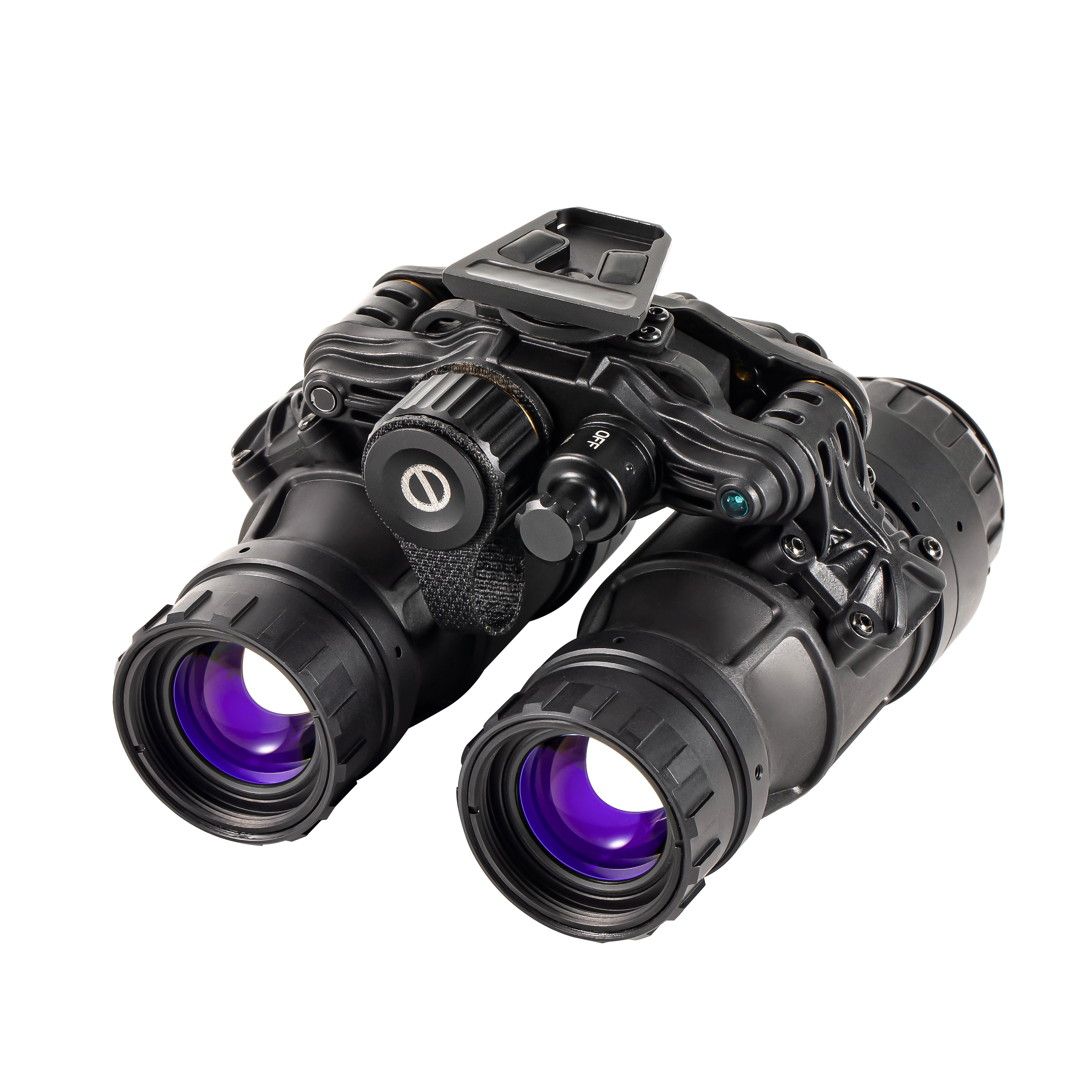

Military Night Vision Binoculars DTS-33

             DTS-33 is the high-end night vision binocular developed by Detyl Optoelectronics. It has a FOV 50° which allows you to see more information . It also has long pupil distance and an largeeyepiece design. DTS33 has an exclusive patented design, lock the focus range of the objective lens, a custom eyepiece diopter, and side/filp up on off . It is easy to use, and its overall performance exceeds that of other dual tubes devices.
FOV:
Weight:
Service:
Availability:
Quantity:
  • DTS-33

  • Detyl

微信图片_20240517110349微信图片_20240517110354

Product feature

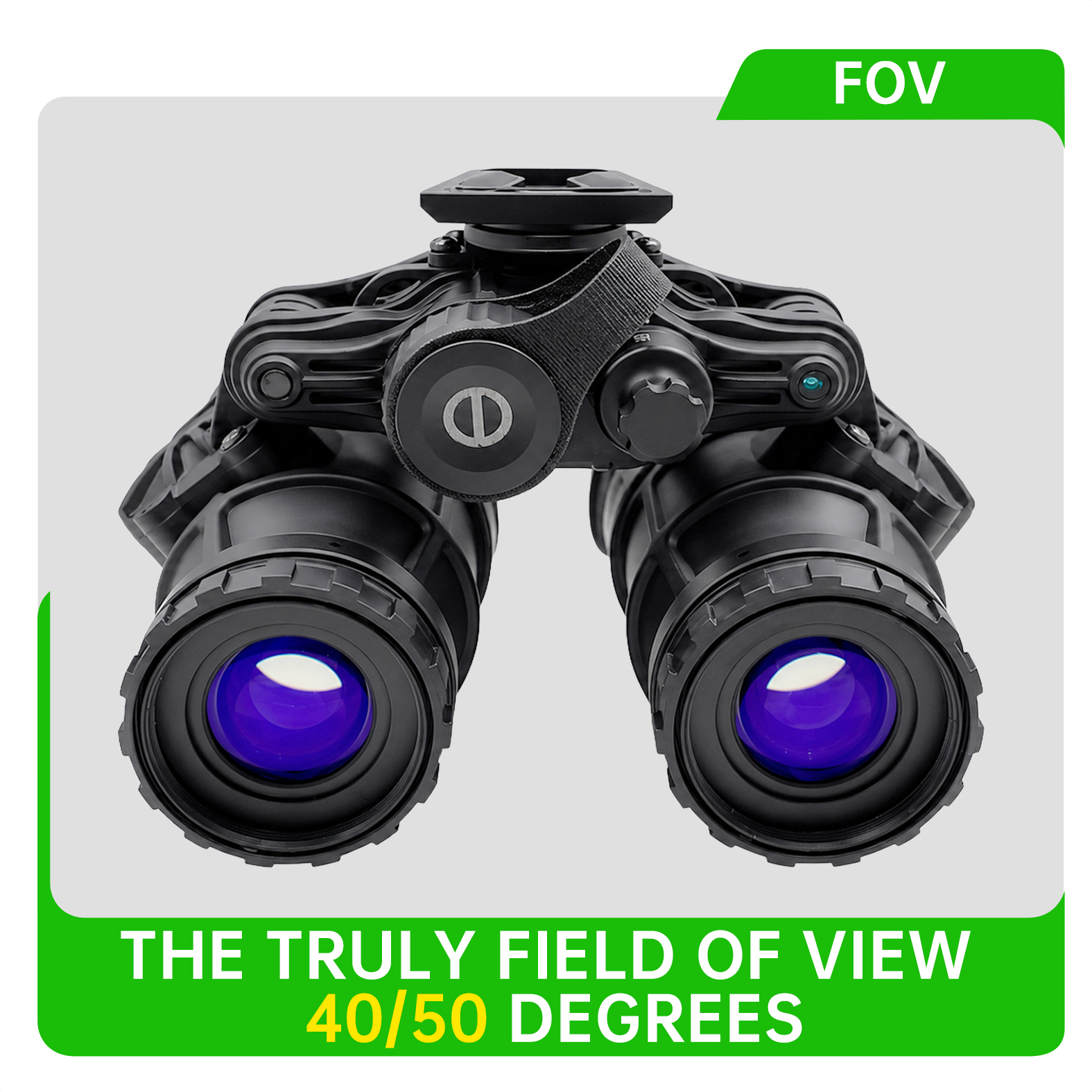

  1. FOV 40 ° and FOV 50   °(optional)  ,We are the only that can achieve FOV 50 °.

 2.High-fidelity image, and no distortion in the observation screen.

3.Built-in working indicator , keep abreast of the using status.

4.In the Auto mode,environmental brightness monitoring, auto adjustment of IR.

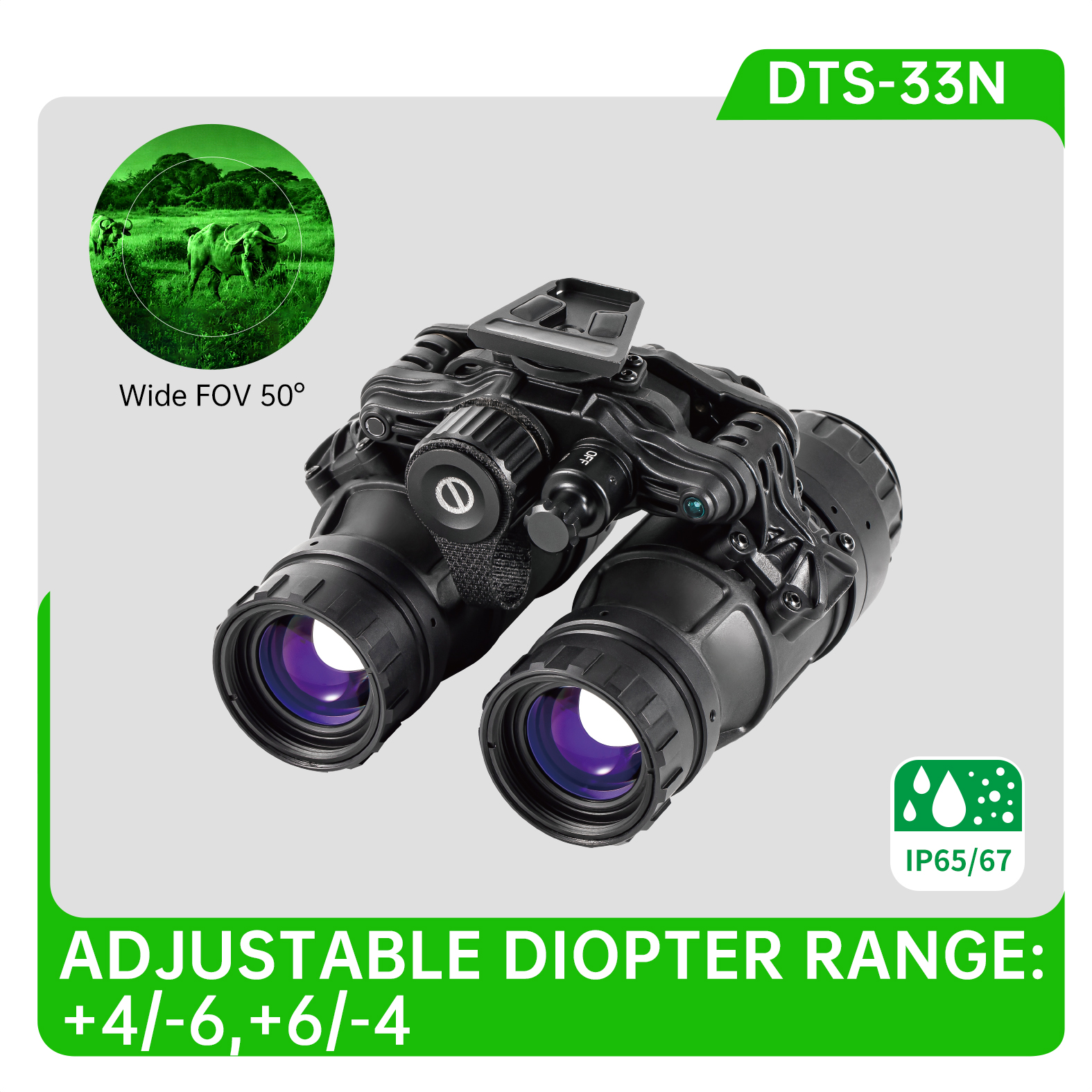

5.Control the range of the dioptre setting(+4/-6, +6/-4), strong adaptability.

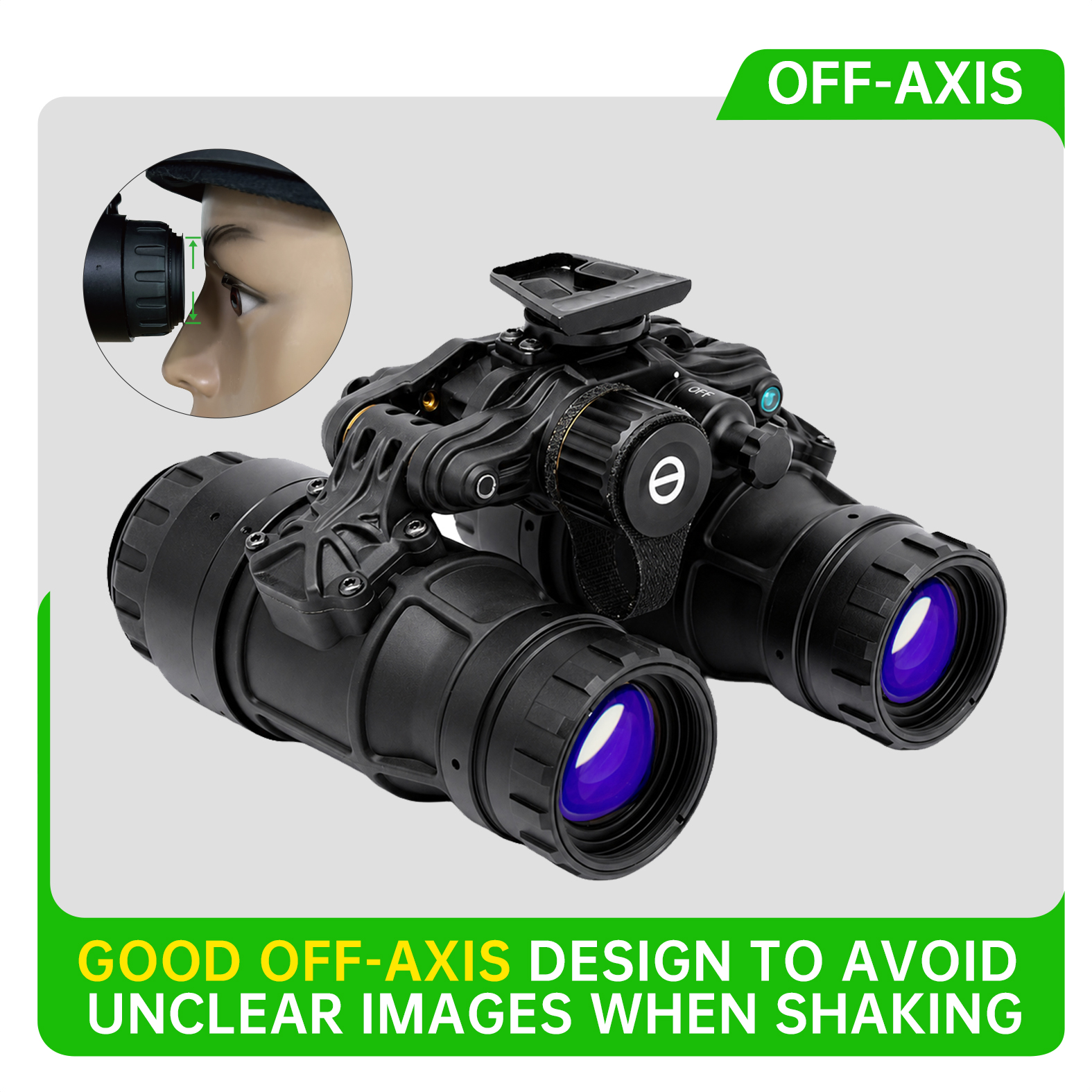

6.Good off-axis design to avoid unclear images when shaking.

7.Manual aperture is optional, and the objective lens can be protected at any time.

8.The exit pupil distance is 25-40mm, which can meet the wearing needs of different types of customers.

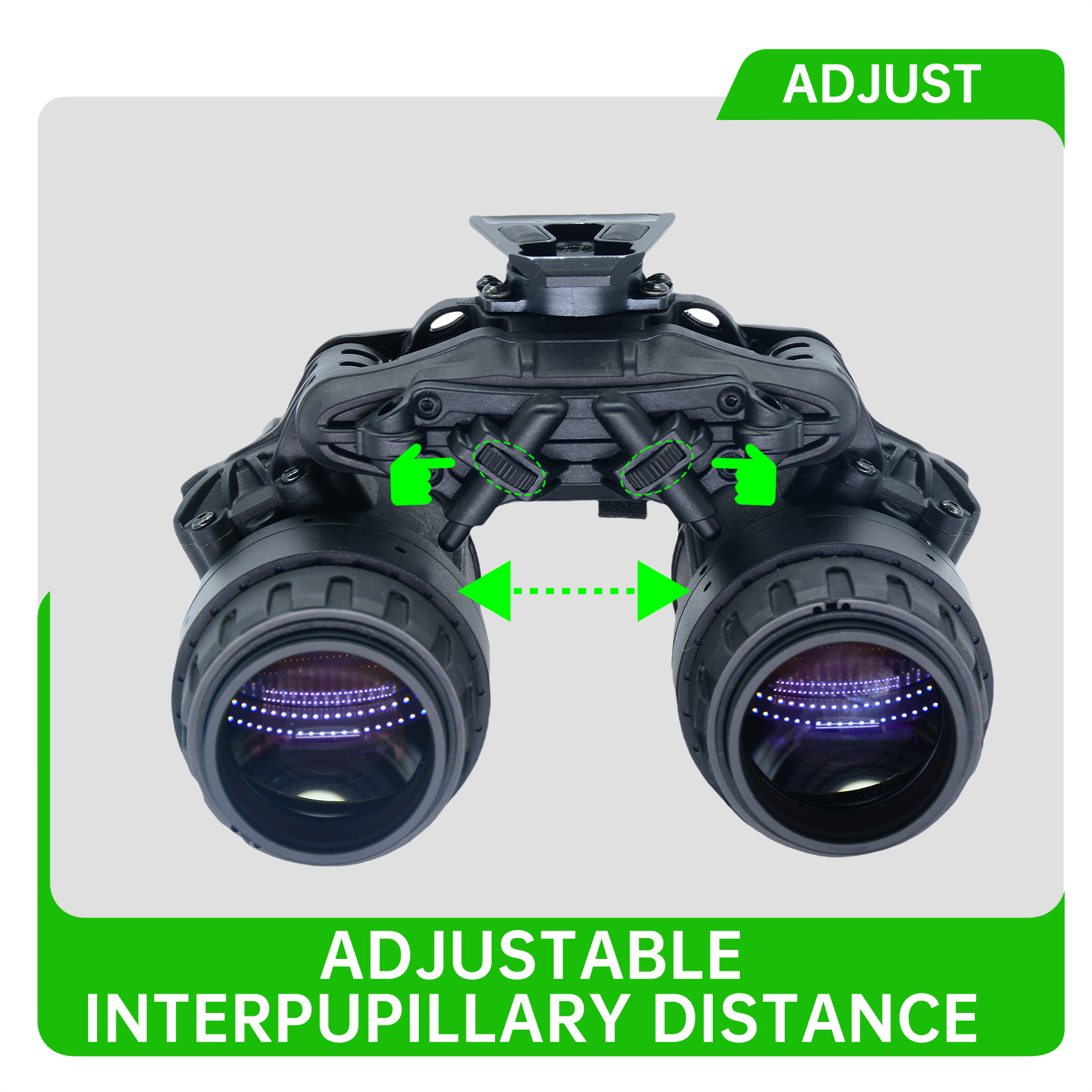

9.Eye spacing locking function, avoiding repeated debugging when homing.

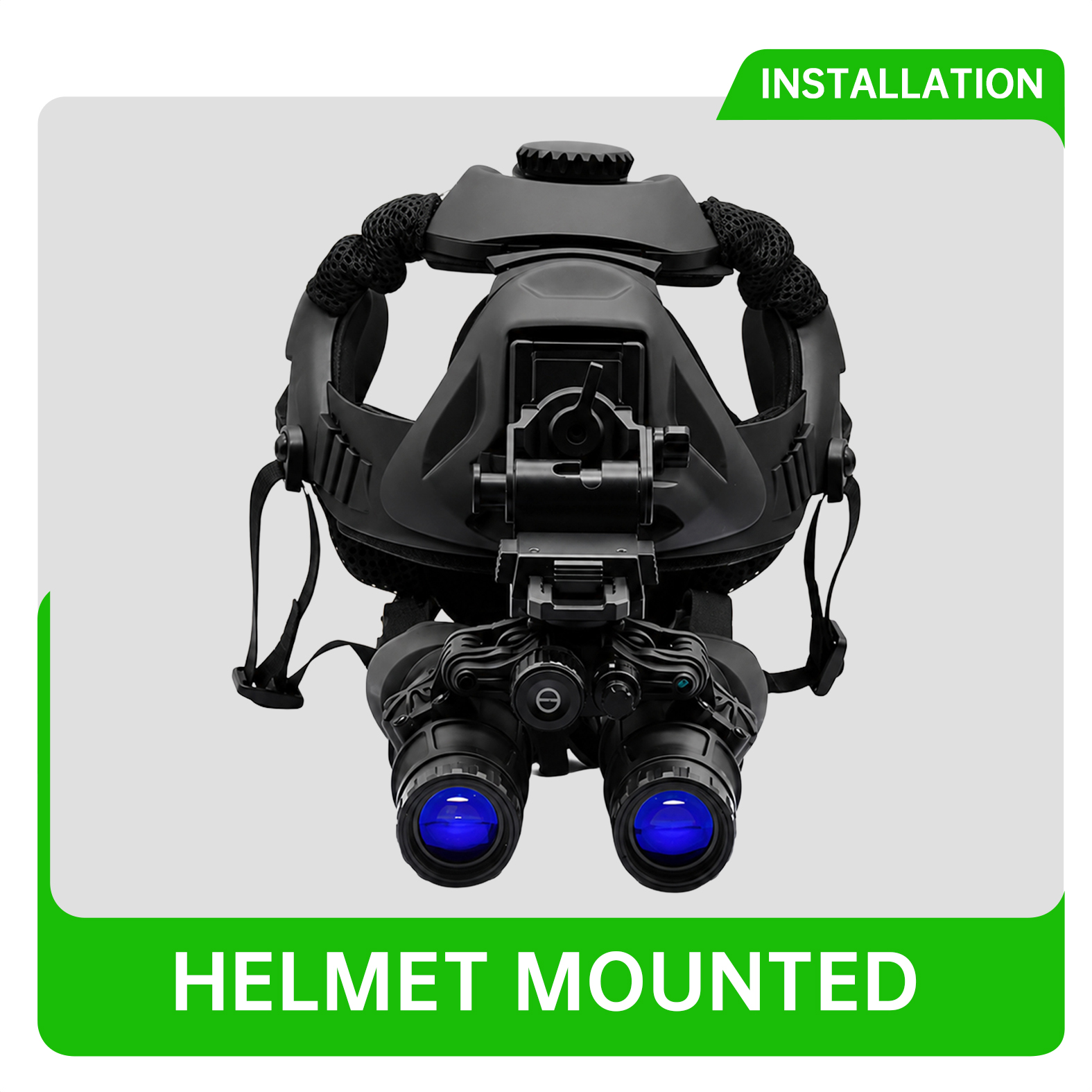

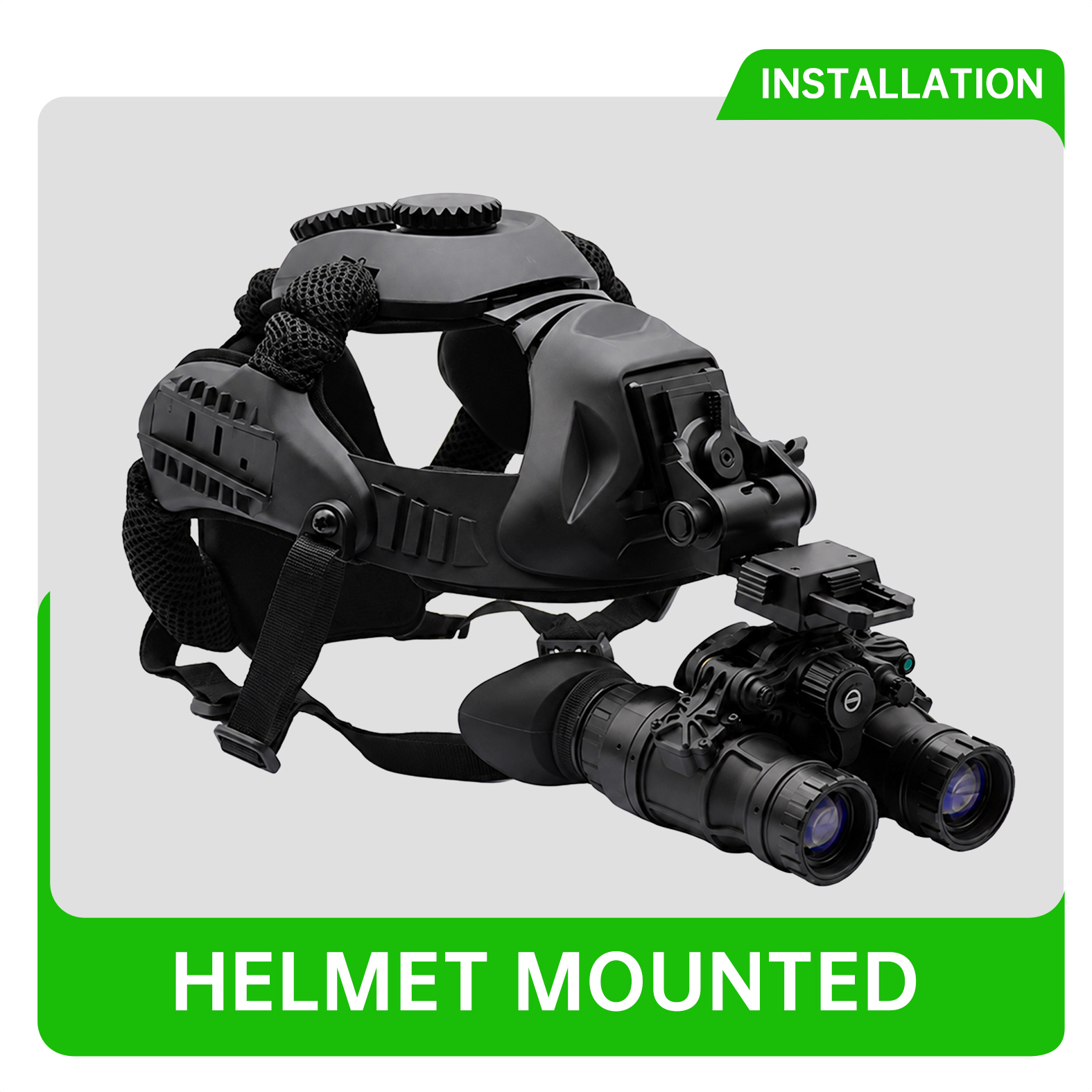

10.We achieved Flip up down ON/OFF and side up down ON/OFF. (must use the original Detyl mounts).

11.Universal battery design, both CR123 battery and AA battery can be used.

12.The waterproof can reach IP65/IP67.

13. Self-developed special materials, high strength, high temperature resistance, light weight, and battery radiation resistance.




MODE

DTS-33N

Generation

Gen2+/Gen3(optional)

Magnification

1X

FOV( °)

50+/-2    (40 optional)

Resolution

60-72 lp/mm

Diopter

-6~+4    / -4~+6    (Optional)

Capability

Flip-Up On-Off, Side Flip-Up On-Off

Optical distortion

0.5% Max

Automatic Brightness Control

YES

Bright Light Cut-off

YES

Infrared Illuminator

Built-in(850nm 20mW)

IR Indicator

YES

Low Battery Indicator

YES

Power Supply

CR123x1/AAx1/Battery pack

Battery life

40- 100H

Optical distortion

<0.5% Max

Eyepiece exit pupil distance

25-40mm

Eyepiece exit pupil diameter

9mm

Eye     distance     adjustment

range

50-80mm


Eye distance locking method

Manual locking(optional)

Operating temperature

-40--+55℃

Relative humidity

5%-95%

Waterproof

IP65/IP67

Dimensions

108x106x83

Weight

325g(housing)/465g(finished)
