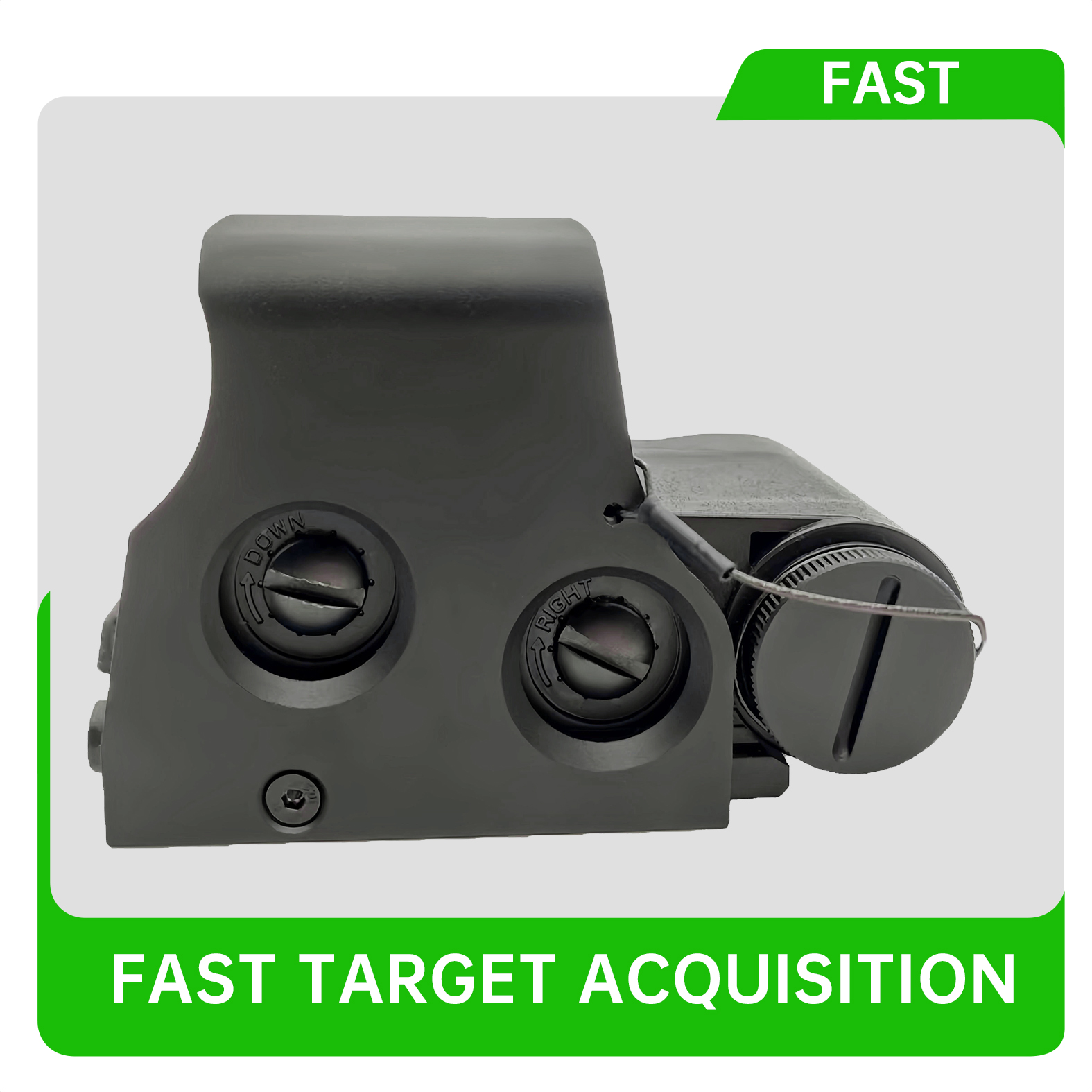

Holographic weapon sight DT-QX8

DT-QX8 is a high-performance, high-precision day-and-night laser holographic sight developed by Detyl Optoelectronics and Sichuan University of Electronic Science and Technology based on EOTECH products of the United States.

Availability:

Quantity:



Inquire Add to Basket

Model:
DT-QX1

holograghic weapon sight

Product feture

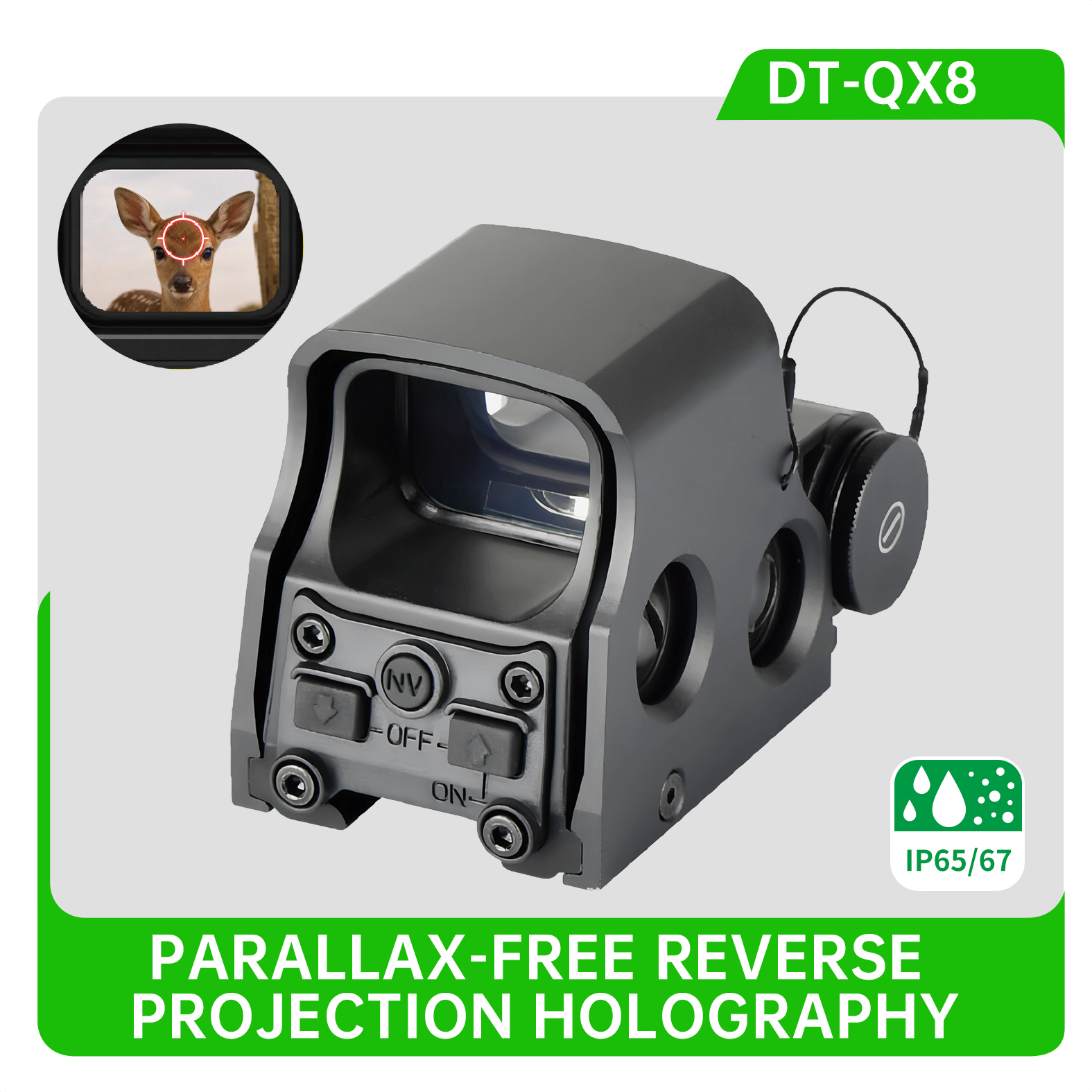

1. No parallax-parallax-free reverse projection holography
2.Optical solid glas-good permeability and clear image
3. Iming and zero adjustment;

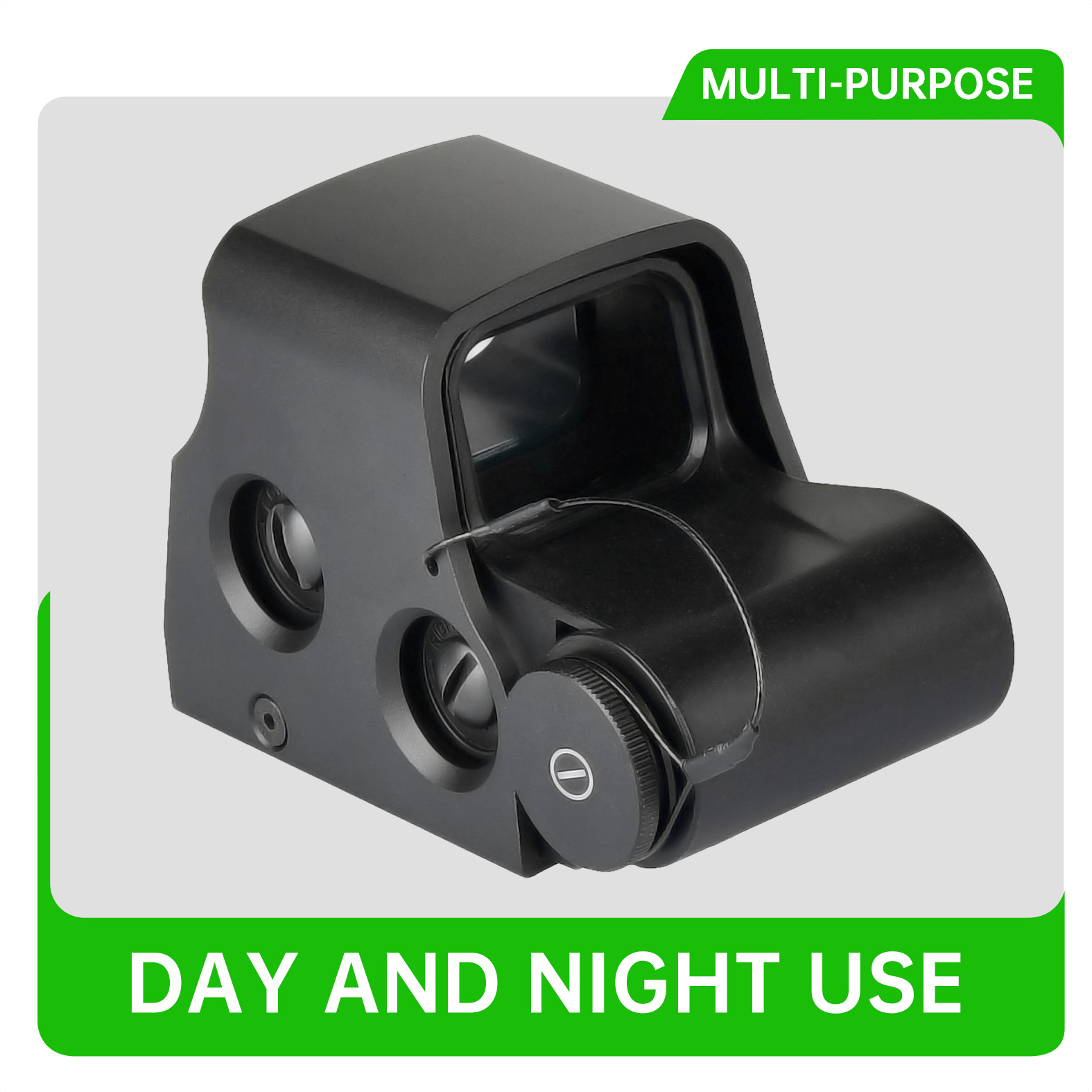

4. Two modes-day and night use
5. Fully metal body

Night vision R&D and design military and police supplies outdoor equipment telescopes riflescope red dot weapon sight Holographic weapon sight

Product Catalog

Contact Us

(+86)15625269625

jenny@detyl.com

301A/3F (Yanluo-Chuanggu Park), No. 96, Yangyong Road, Tang sha Chung Community, Song-gang Town , Baoan District, Shenzhen, China.

	Model	DT-QX81
Optical system	Projection method	Full No parallax Reverse projection
	Magnification	1X

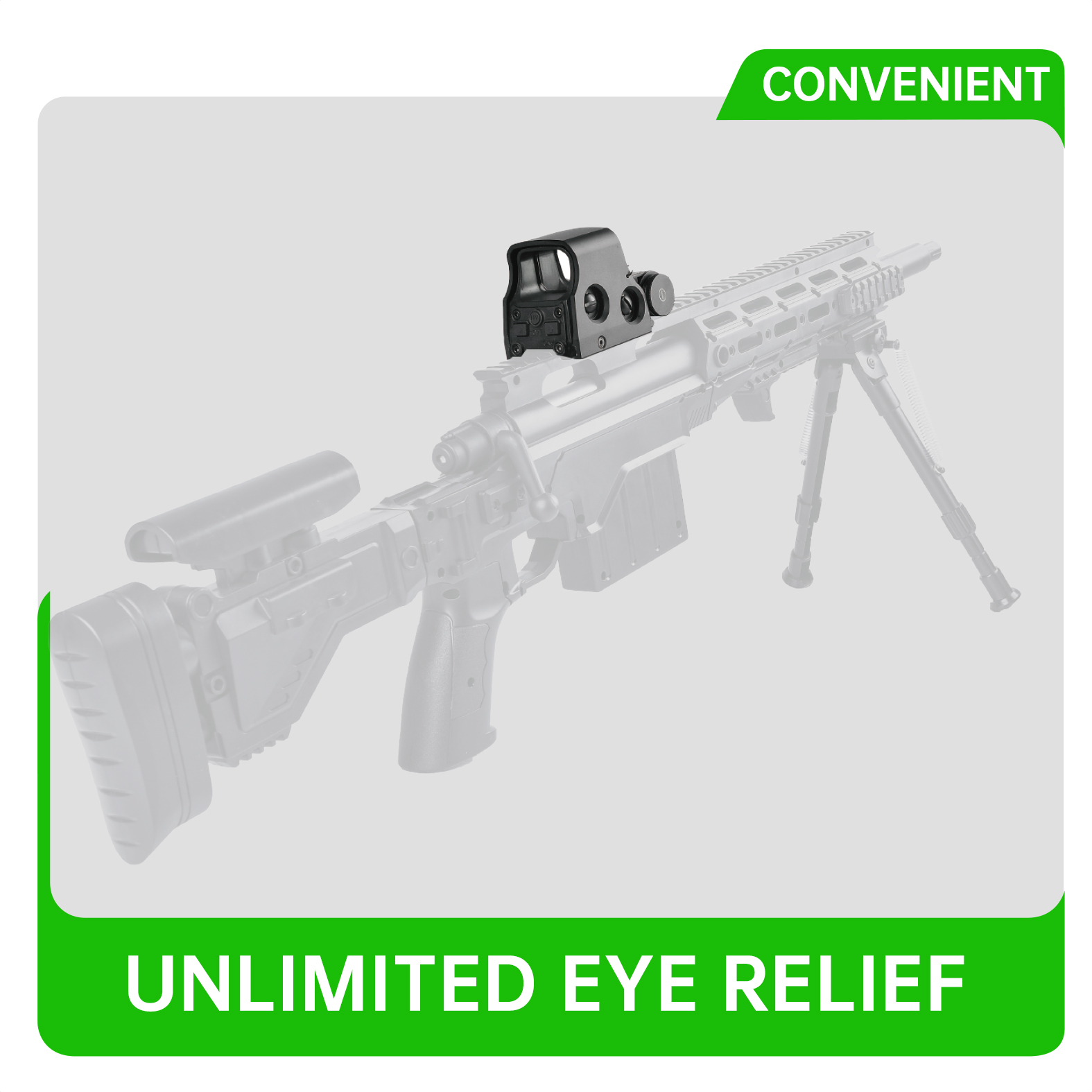

	Distance of pupil	Unlimited
	Material	Optical solid glass
	Dimensions	30x23+/-1mm
	Glass coating	Anti-glare (MIL-0-13830A) Antifogging
	FOV（100mm）	>15(°)

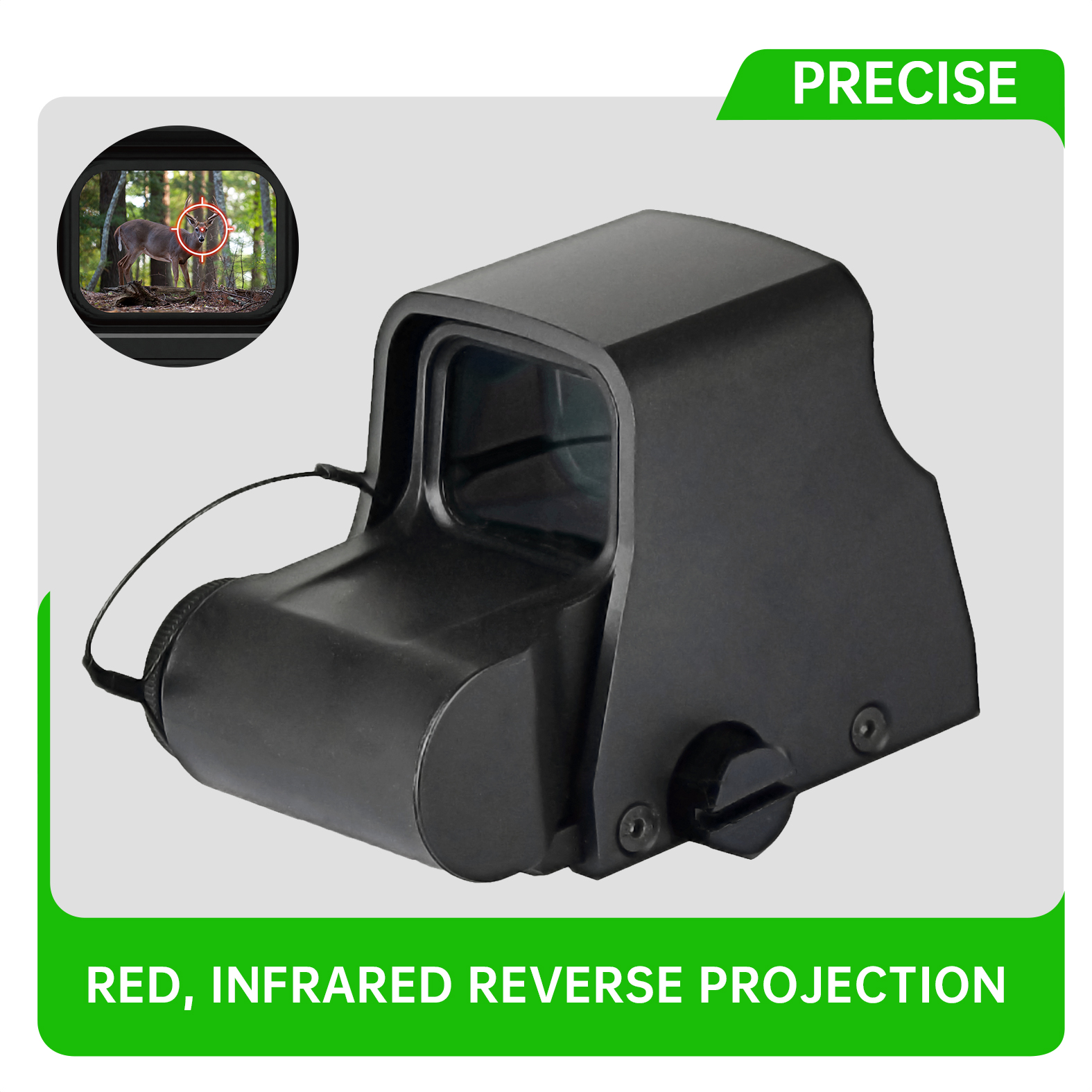

Graduation cursor	Graduation type	Red，infrared Reverse projection(NV)
	Daytime brightness adjustment	146000:1 20 steps
	Nighttime brightness adjustment	1280:1 10 steps
Power spec.	Battery type	CR123(A)x1
	Battery life	>550H (daytime mode step 2)
	Low battery warning	Power Low than 20%,flash cursor
	Auto shut off	8H/4H no operation auto shut off(can be set)
Graduation mil	Mil range	+/-40MOA
Graduation mil	Minimum mil	1/2MOA

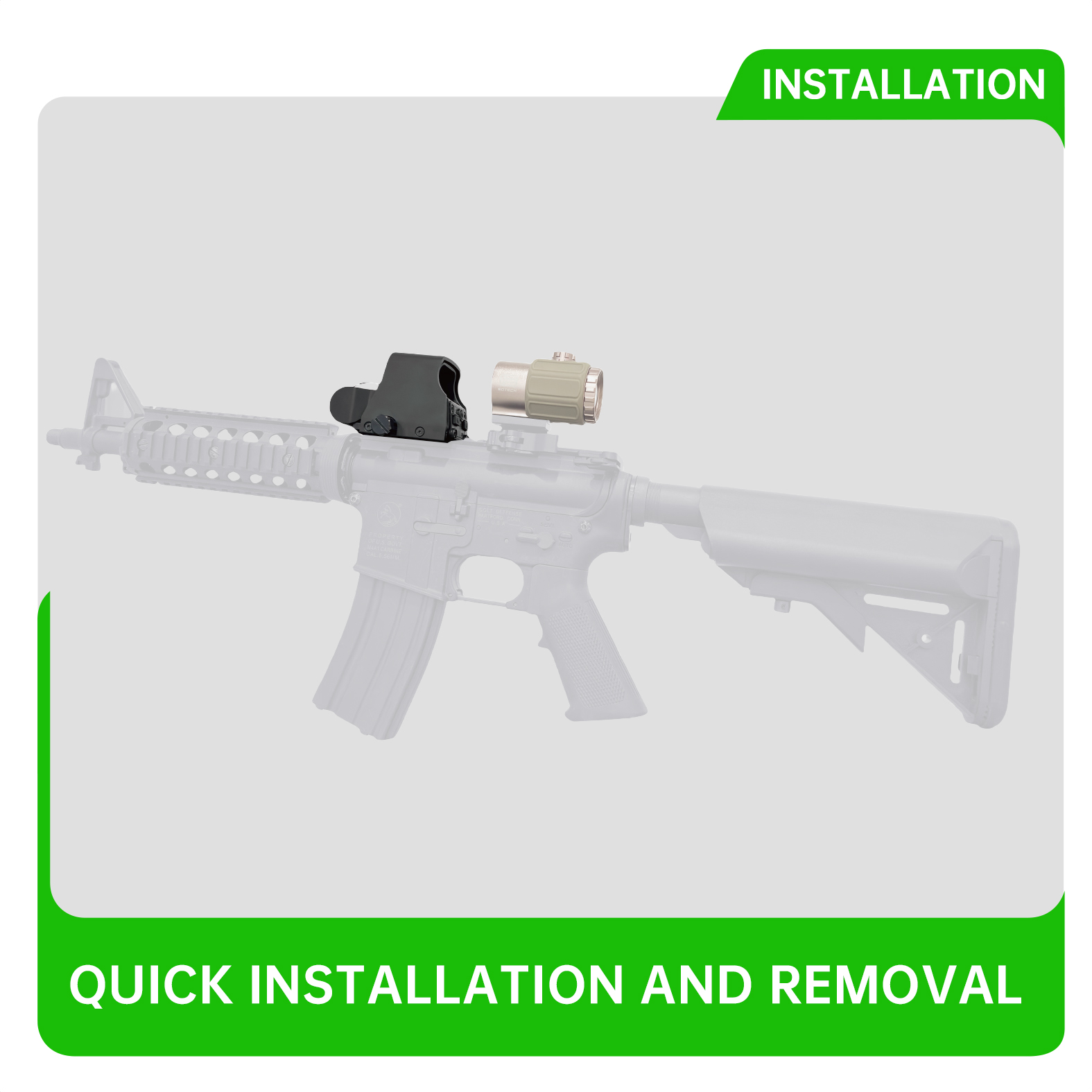

Mechanical	Mountting Fixture	MIL-STD-1913
	Lock	screw
	Remountting accuracy	2MOA
Product-Size	Dimensions	<95x55x65mm
Product-Size	Weight(No battery)	<230g
Environmental adaptation	Environment specification	MIL-STD-810F
	Waterproof	IP65（IP67 optional）
	Temperature(℃)	Operating：-40~+65 Storage：-50~+75

	Model	DT-QX81
Optical system	Projection method	Full No parallax Reverse projection
	Magnification	1X
	Distance of pupil	Unlimited
	Material	Optical solid glass
	Dimensions	30x23+/-1mm
	Glass coating	Anti-glare (MIL-0-13830A) Antifogging
	FOV（100mm）	>15(°)
Graduation cursor	Graduation type	Red，infrared Reverse projection(NV)
	Daytime brightness adjustment	146000:1 20 steps
	Nighttime brightness adjustment	1280:1 10 steps
Power spec.	Battery type	CR123(A)x1
	Battery life	>550H (daytime mode step 2)
	Low battery warning	Power Low than 20%,flash cursor
	Auto shut off	8H/4H no operation auto shut off(can be set)
Graduation mil	Mil range	+/-40MOA
Graduation mil	Minimum mil	1/2MOA
Mechanical	Mountting Fixture	MIL-STD-1913
	Lock	screw
	Remountting accuracy	2MOA
Product-Size	Dimensions	<95x55x65mm
Product-Size	Weight(No battery)	<230g
Environmental adaptation	Environment specification	MIL-STD-810F
	Waterproof	IP65（IP67 optional）
	Temperature(℃)	Operating：-40~+65 Storage：-50~+75
