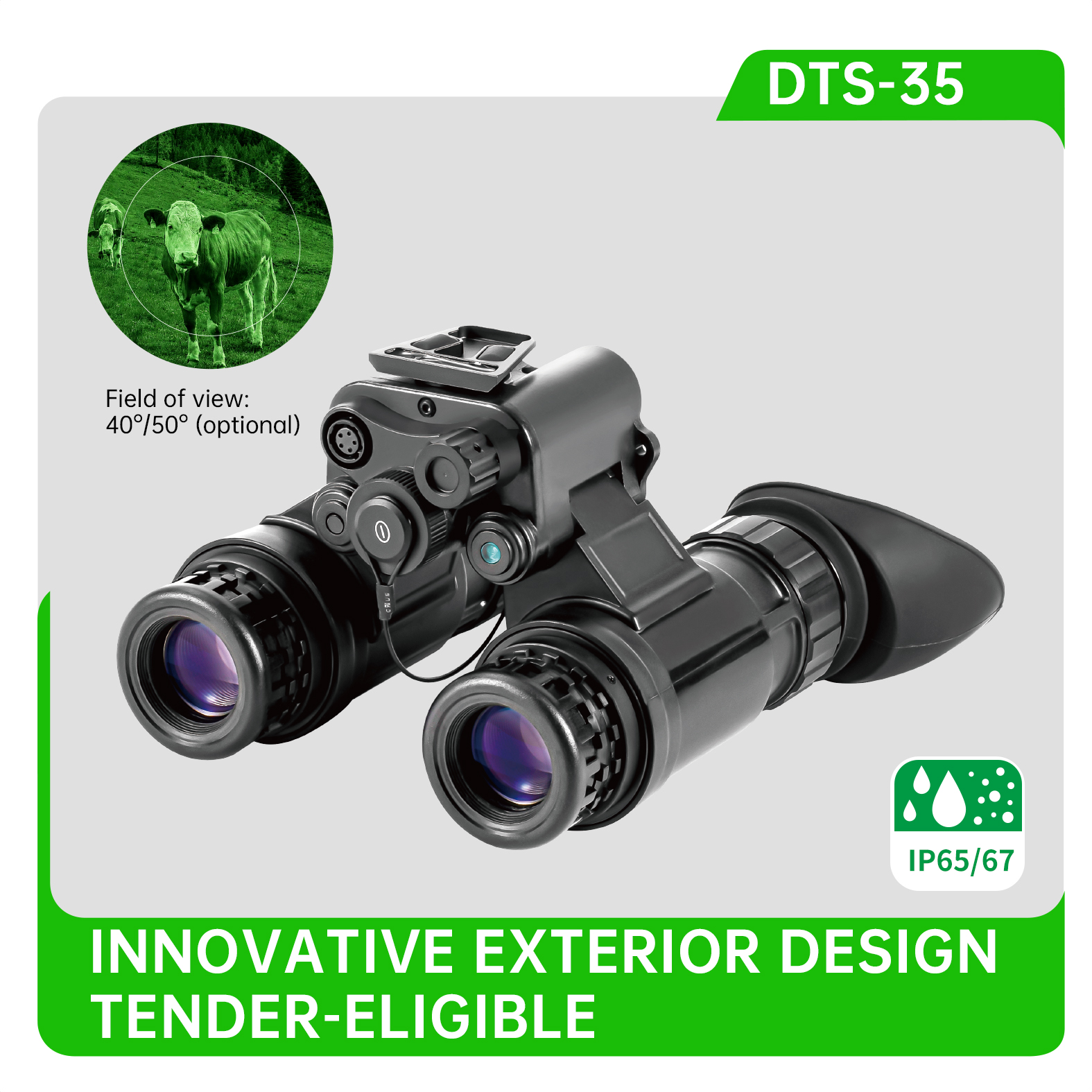

High Quanlity Night Vision Goggles DTS-35

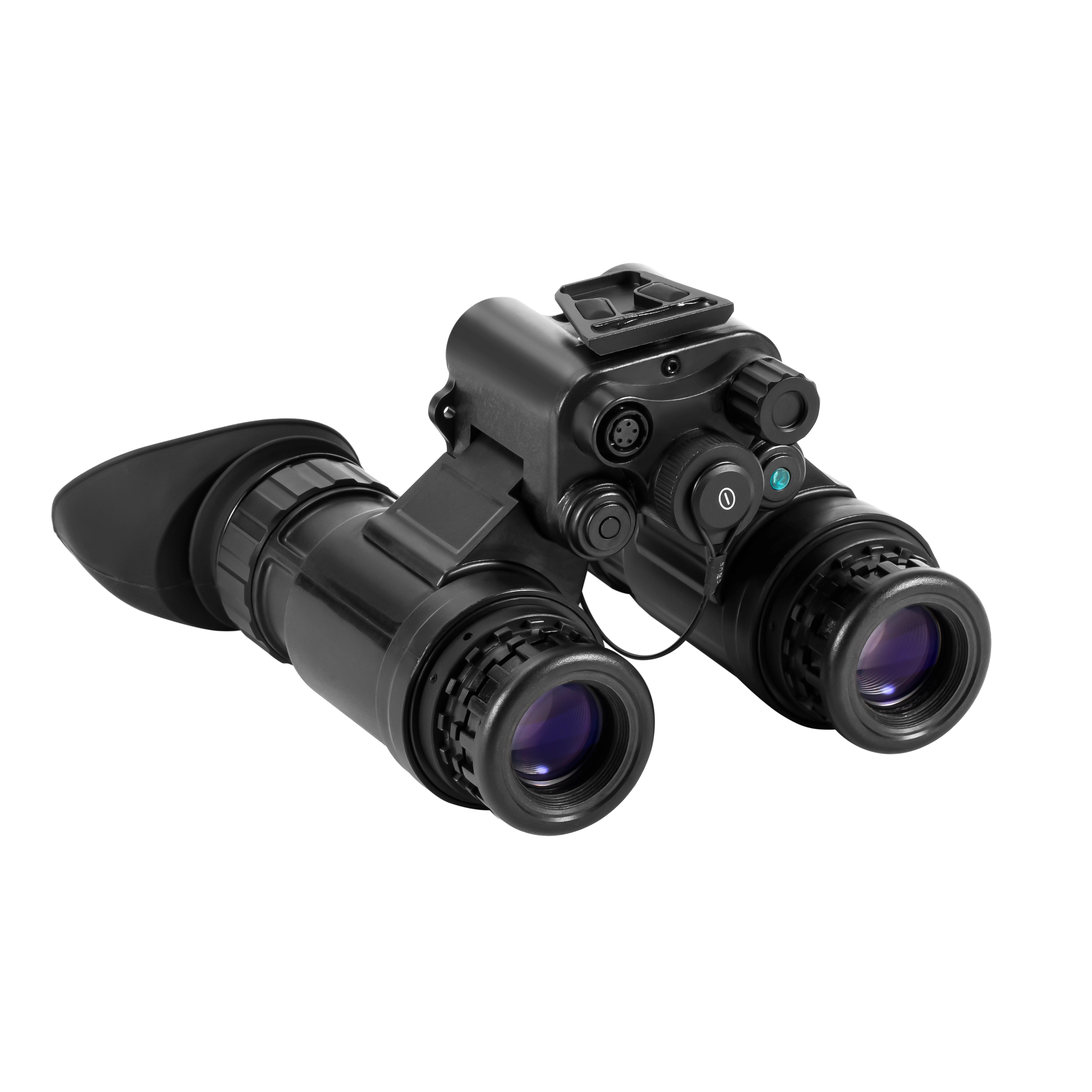

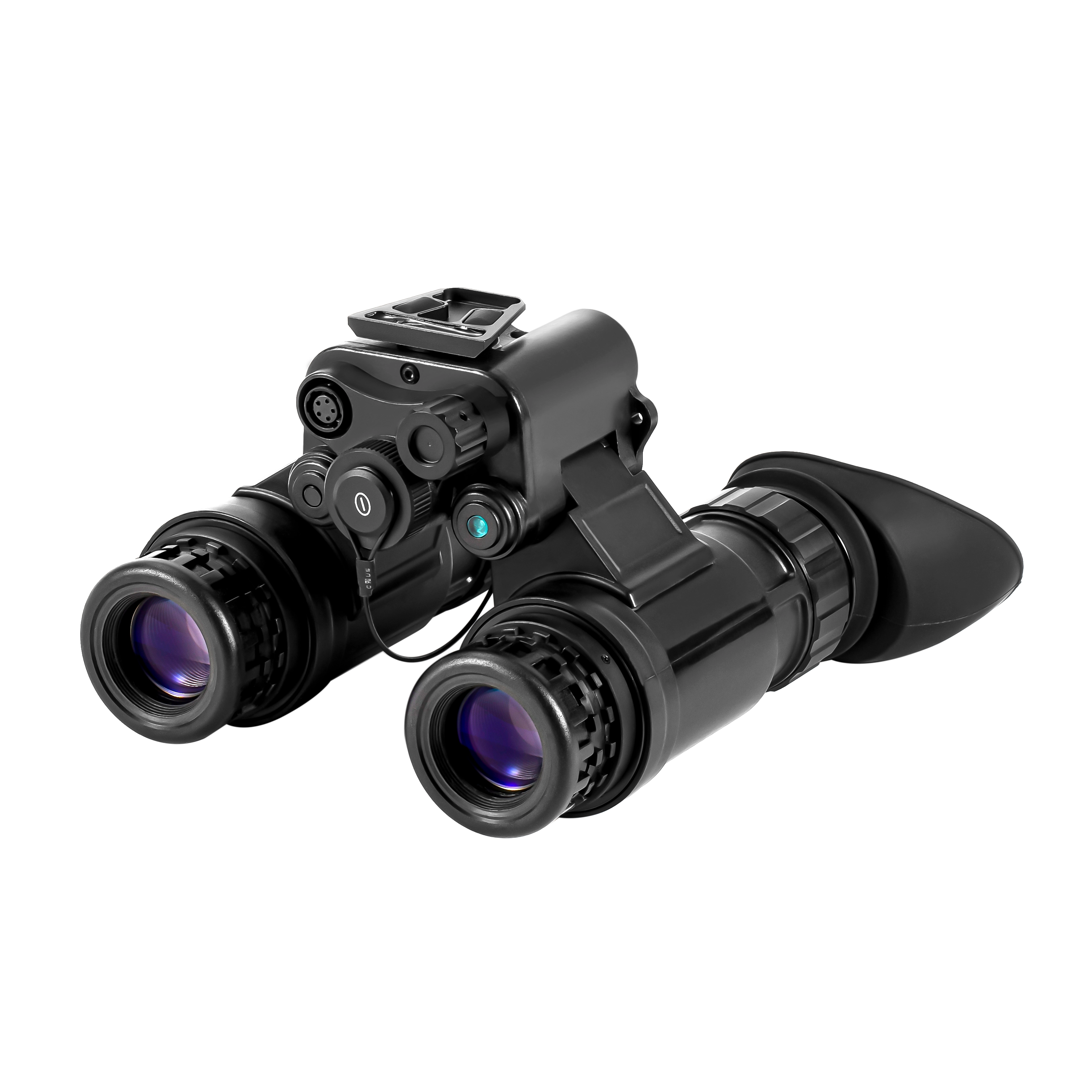

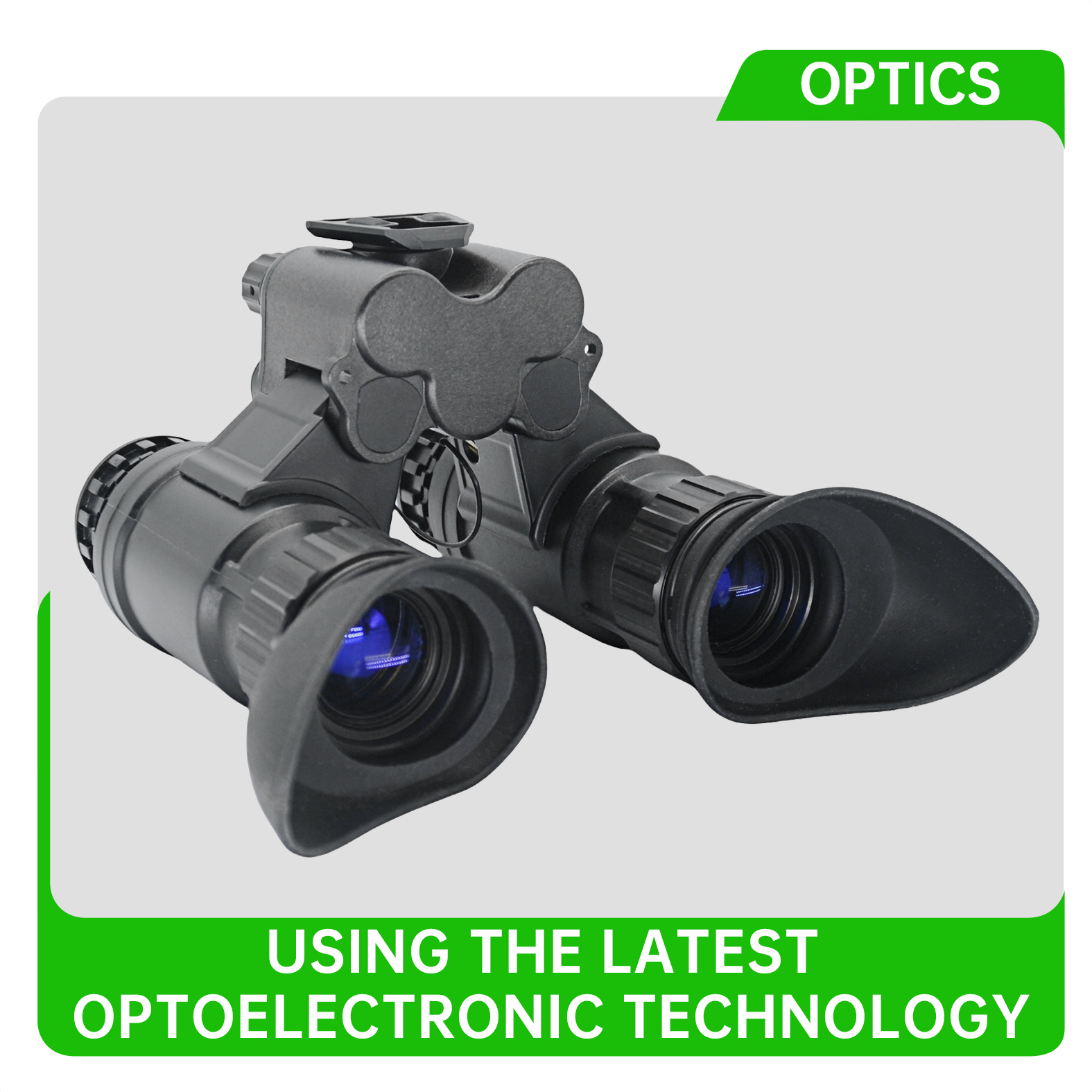

DTS-35 is a high-performance military head mounted night vision binocular built by Detyl Optoelectronics .It is an active head mounted night vision binocular in the United States.DTS-35 has super large field of view 50 deg, high definition, no distortion, light weight, high strength (the overall performance is much better than the original version of the U.S. military products), which isthe ideal choice for military night equipment.

FOV:	40/50 deg
Weight:	480g
Service:	ODM/OEM
Availability:

Quantity:



Inquire Add to Basket

Model:
DTS-35
Brand:
Detyl

cedb554134b8eeb2318ebea03b747a6 b1d81872957048df709ce9444a20d77 Product feature:

1.The truly field of view 50 degrees
2.Flip-Up On-Off, Side Flip-Up On-Off
3.The diopter can be adjusted -5/+5
4.No distortion , full screen clearly without distortion

Night vision military and police supplies PVS14 monoculars outdoor equipment telescopes Night vision binoculars Night vision goggles PVS 31 PVS-15

Product Catalog

Contact Us

(+86)15625269625

jenny@detyl.com

301A/3F (Yanluo-Chuanggu Park), No. 96, Yangyong Road, Tang sha Chung Community, Song-gang Town , Baoan District, Shenzhen, China.

MODE	DTS-35
Generation	Gen 2+/Gen3(optional)
Magnification	1X

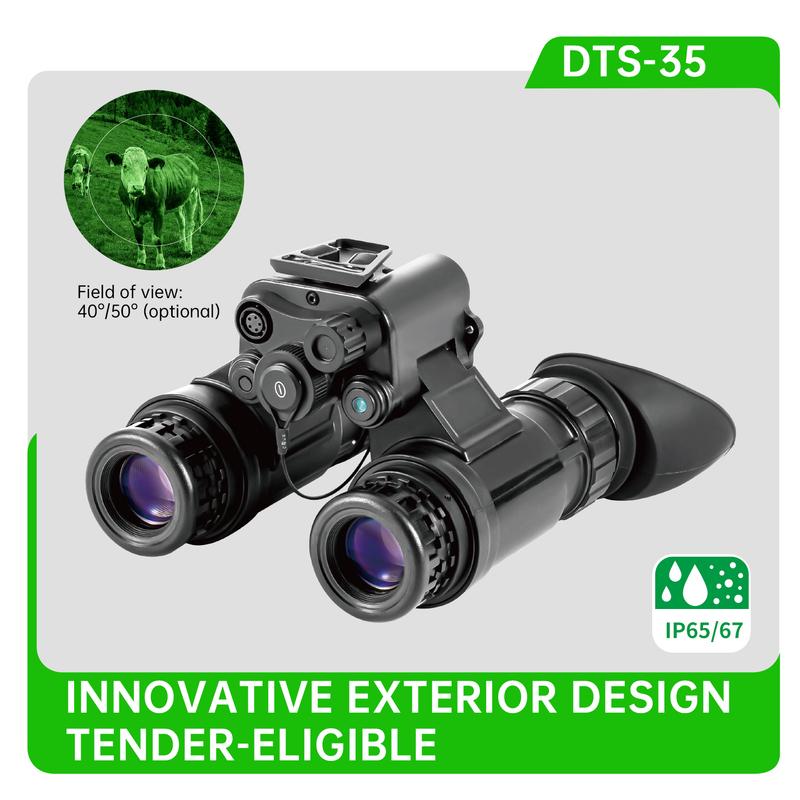

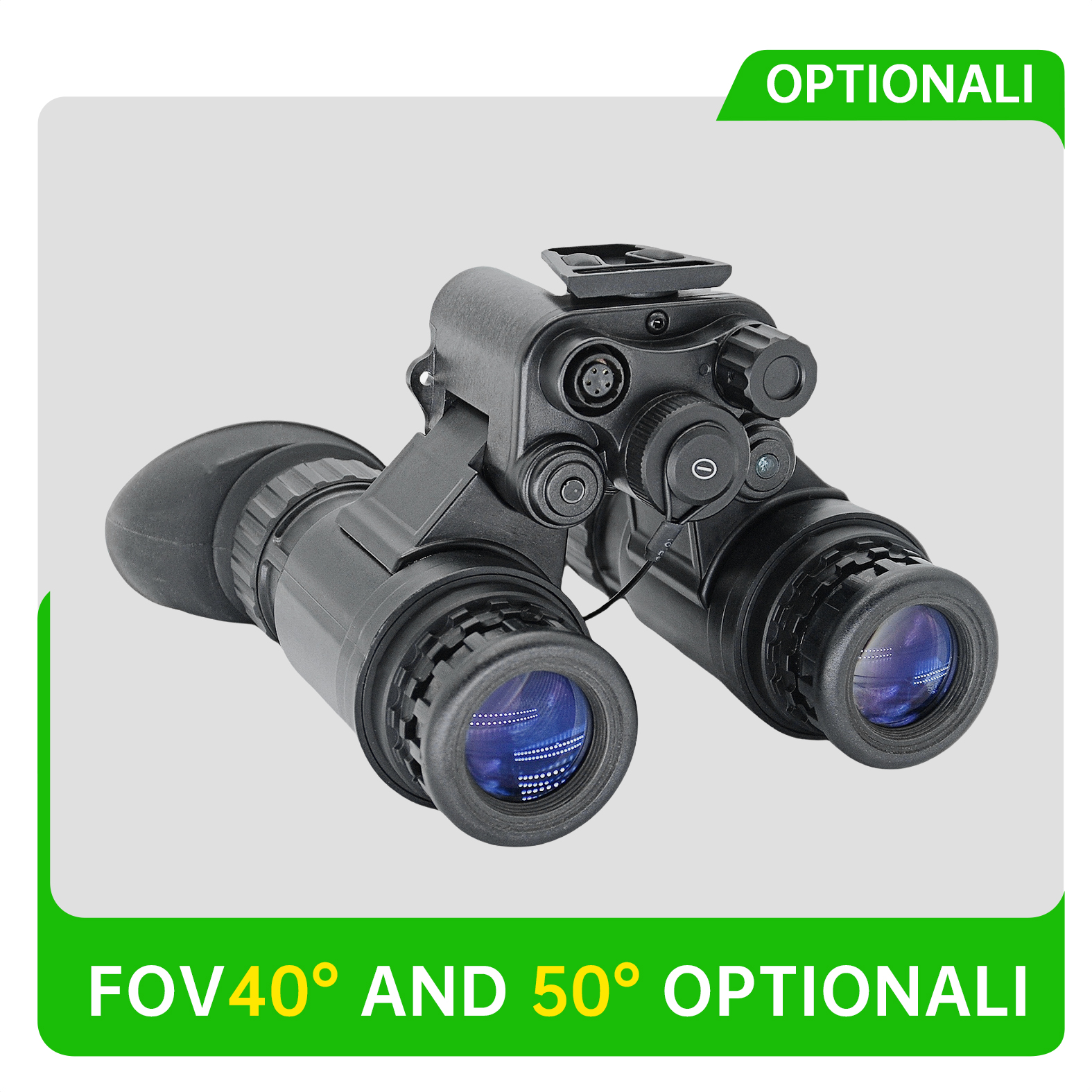

FOV(°)	50 +/-1(40 optional)
Automatic Brightness Control	YES
Bright Light Cut-off	YES
Infrared Illuminator	Built-in(850nm 20mW)
IR Indicator	YES
Low Battery Indicator	YES
Battery type	AA battery (AA x1) / CR123x4 Battery pack
Power supply	1.2-1.6V

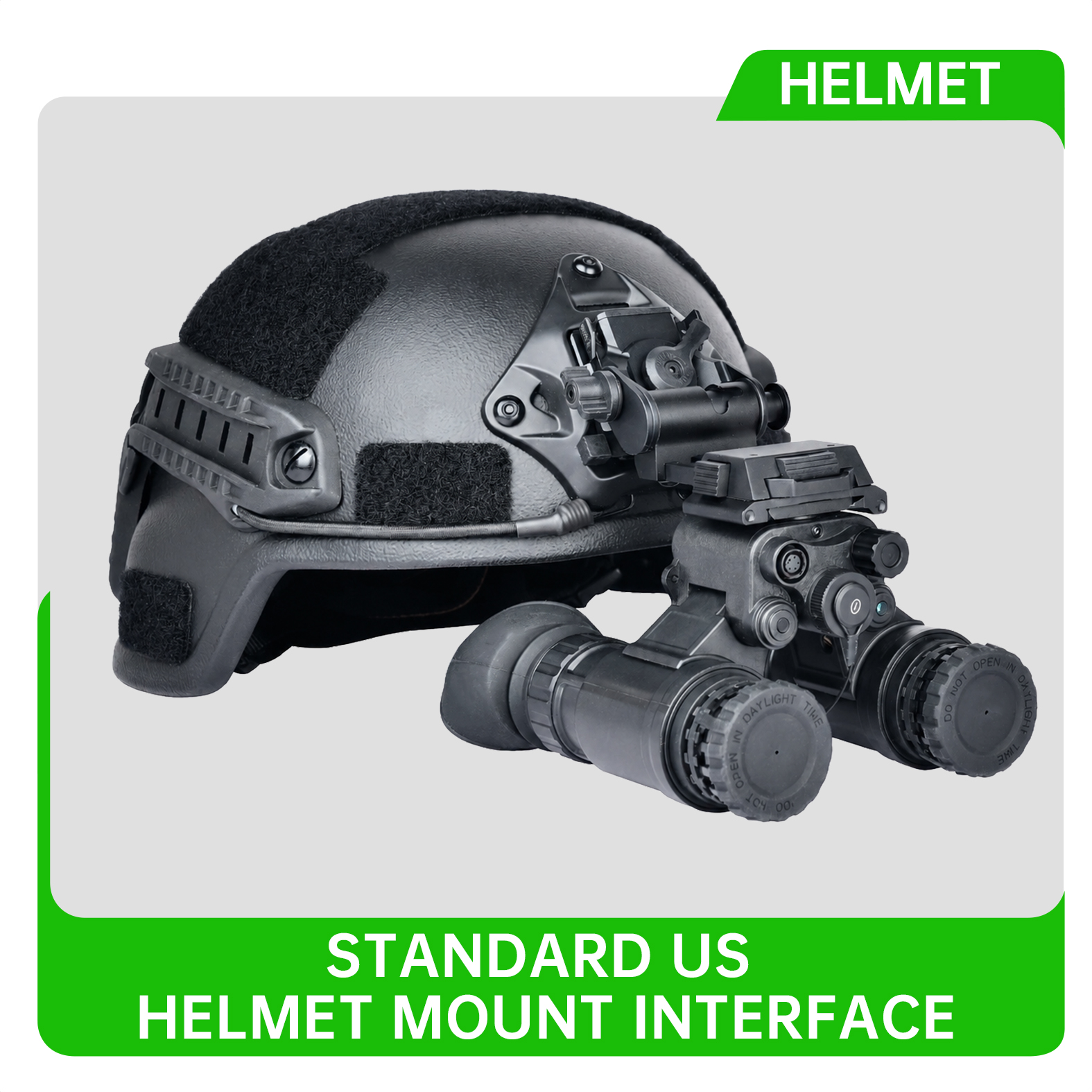

Installation	Head mounted(standard American helmet interface)
Control mode	ON/IR/AUTO
Battery capacity	800-3200maH
Battery life	40-100H
Optical distortion	0.1% Max
Distance of pupil	20-45mm
Eyepiece aperture	9mm
Diopter adjustment	+ / - 5
Off-axis （mm）	5-10

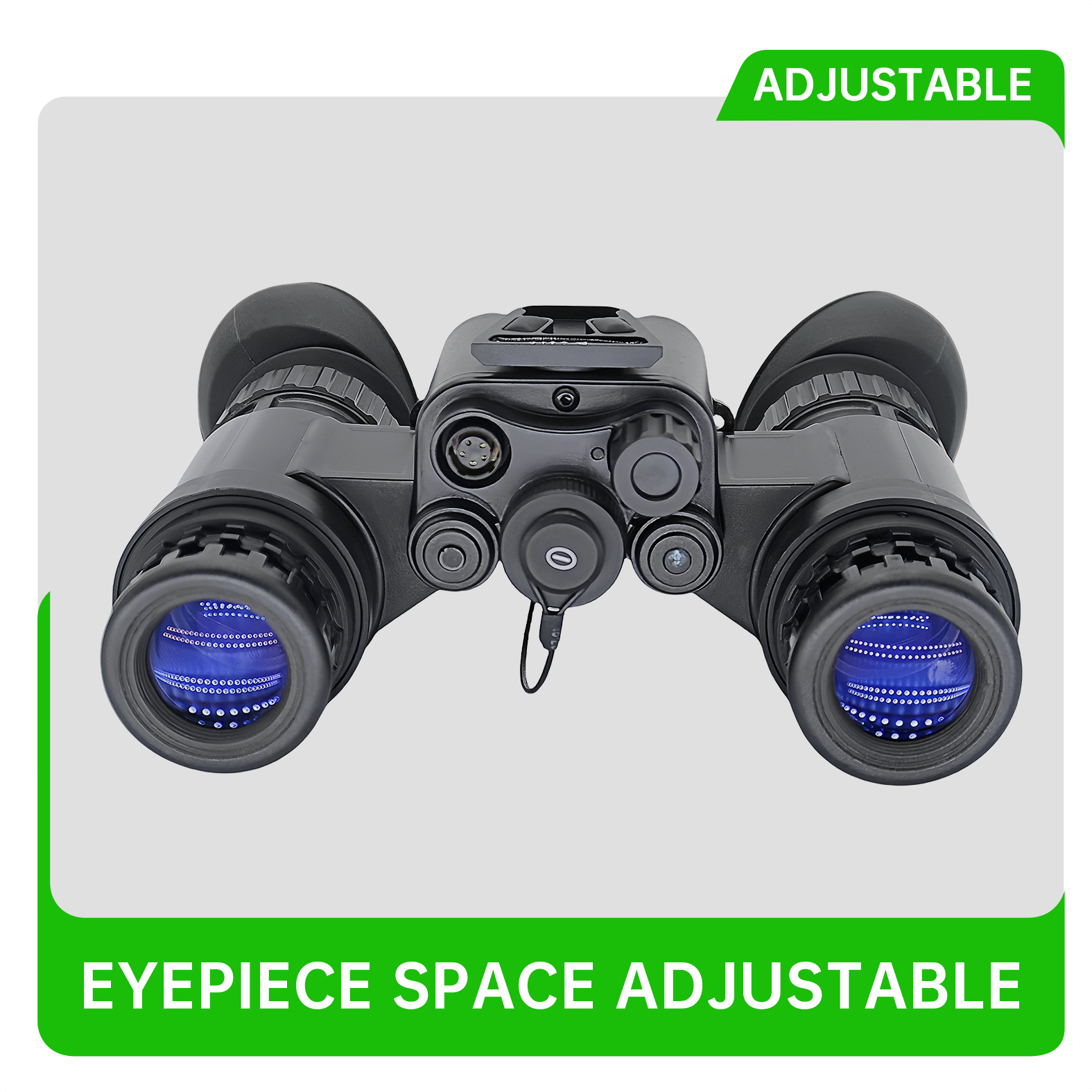

Eye distance adjustment range	50-80mm
Operating temperature	-40--+55℃
Relative humidity	5%-95%
Waterproof	IP65/IP67
Dimensions	110x100x90
Weight	330g(housing)/480g(finished)
