Gen 2+ Dayscope Clip on Systems DT-NSCB1

Share to:

Gen 2+ Dayscope Clip on Systems DT-NSCB1

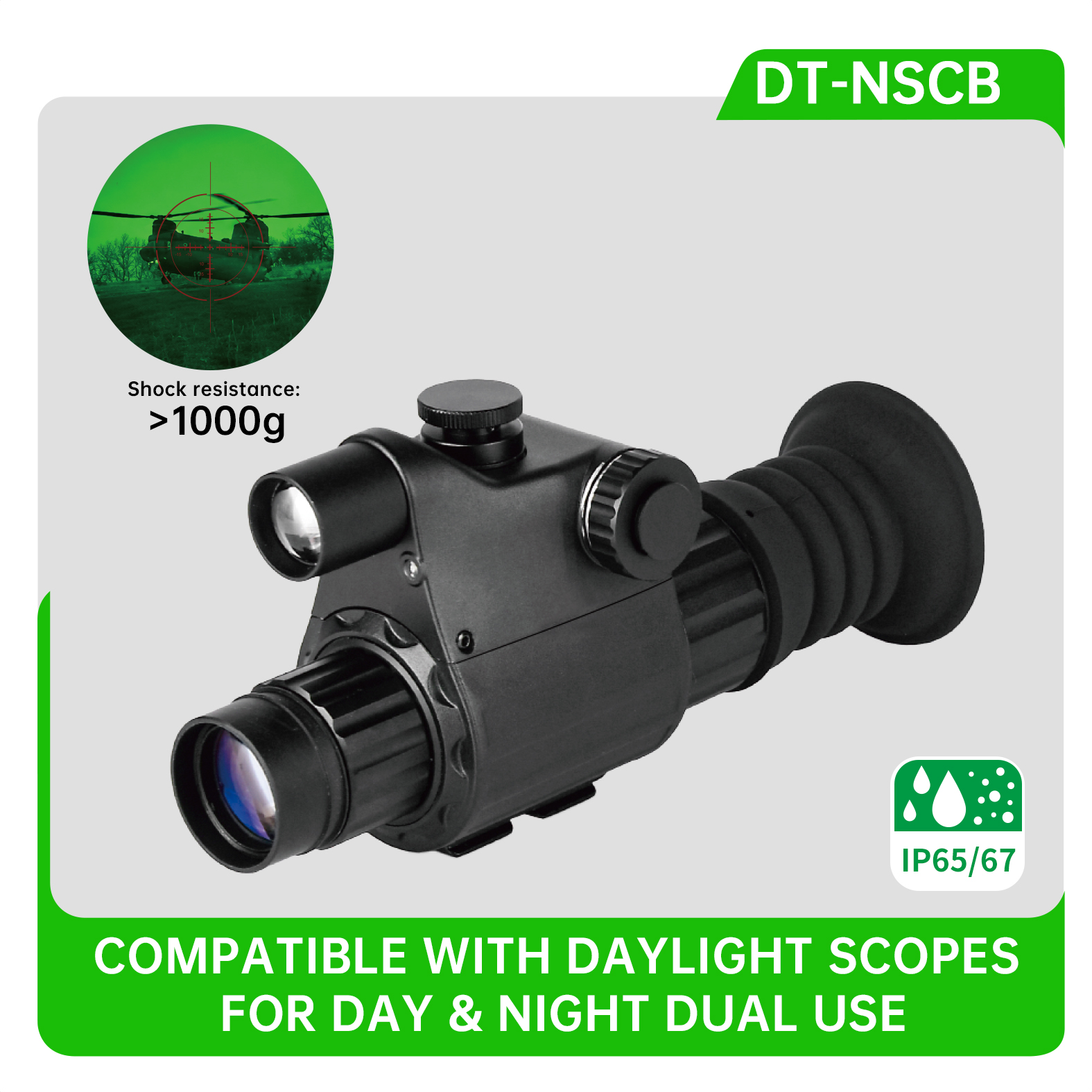

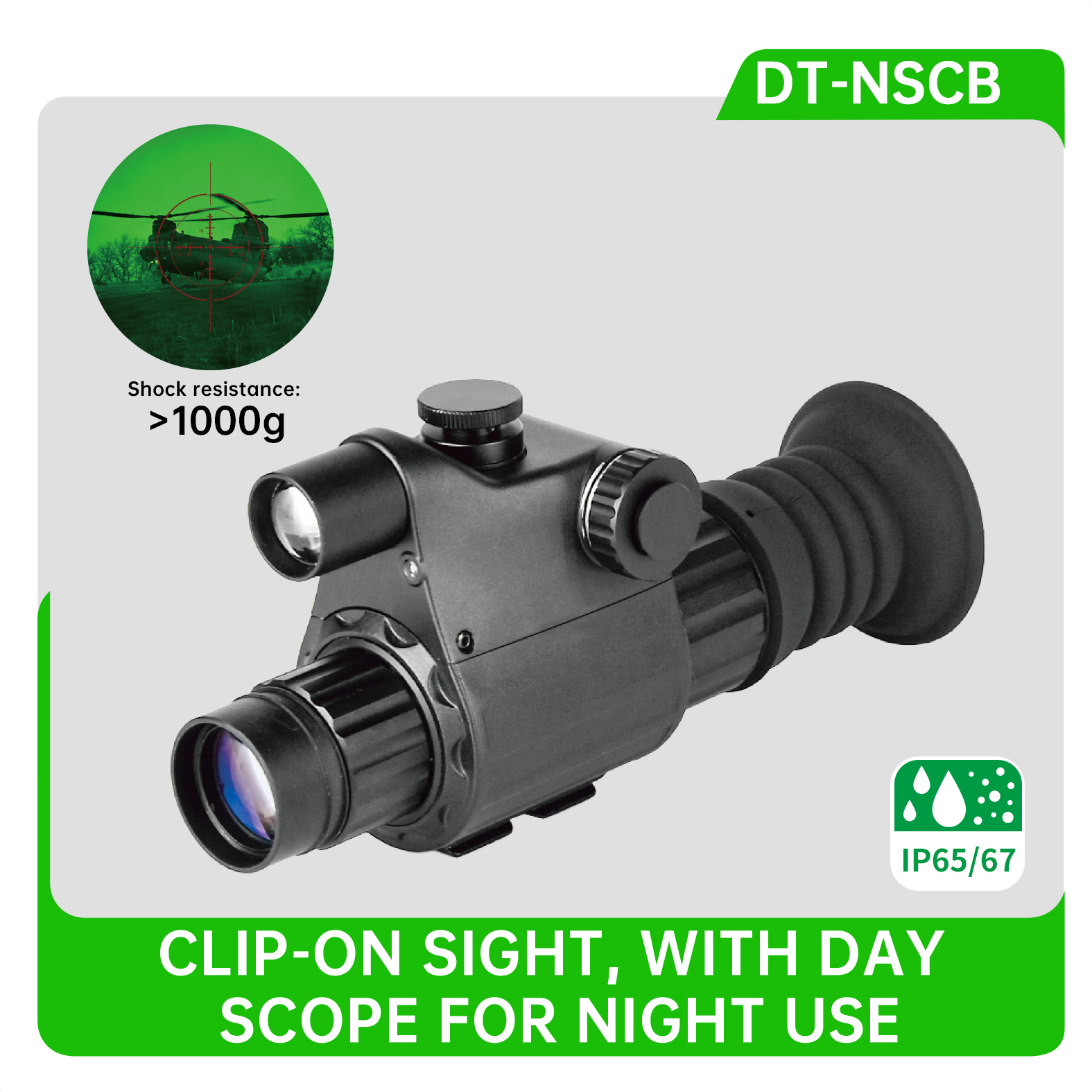

DT-NSCB has a professional clip-on behind sight design, adopts an all- metal body structure

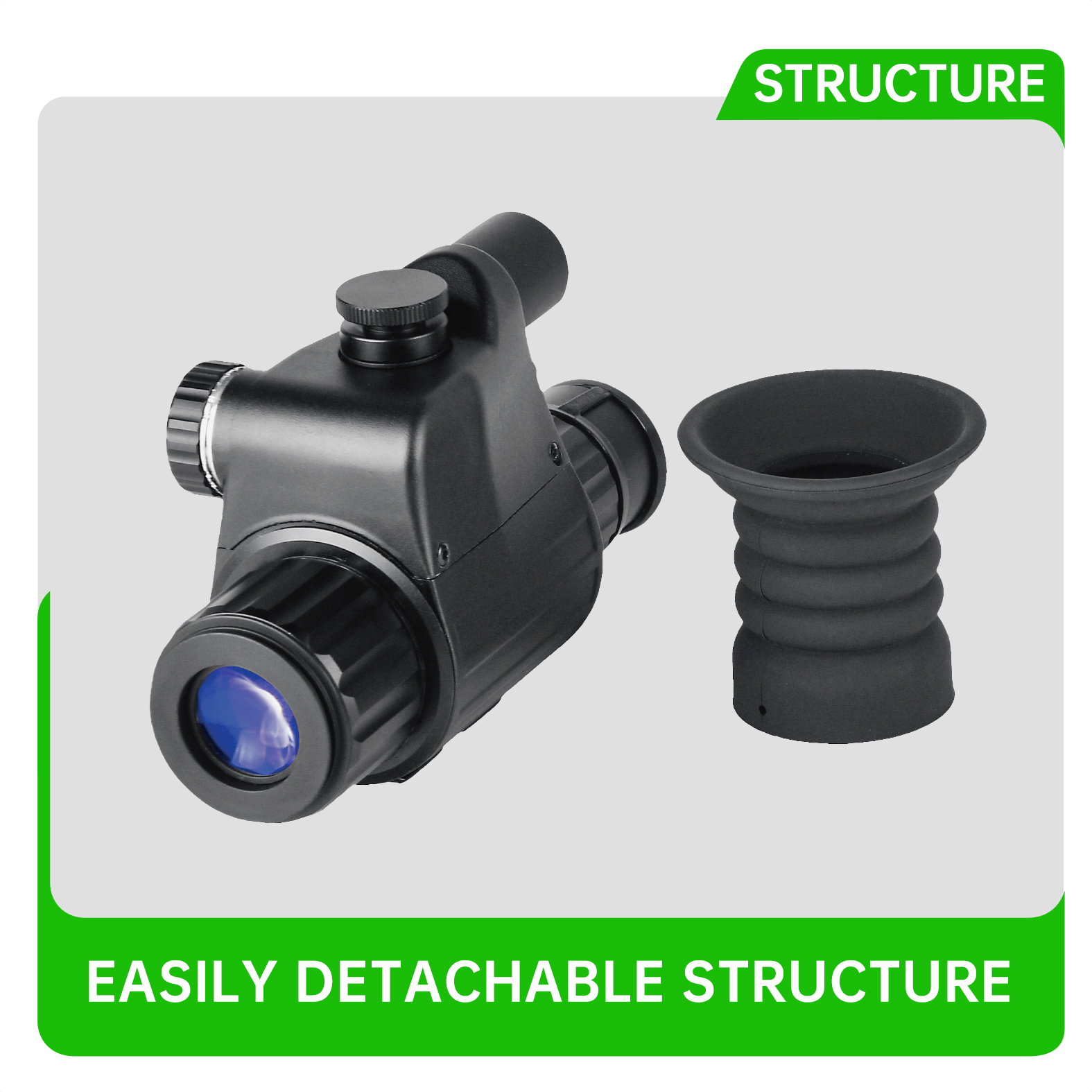

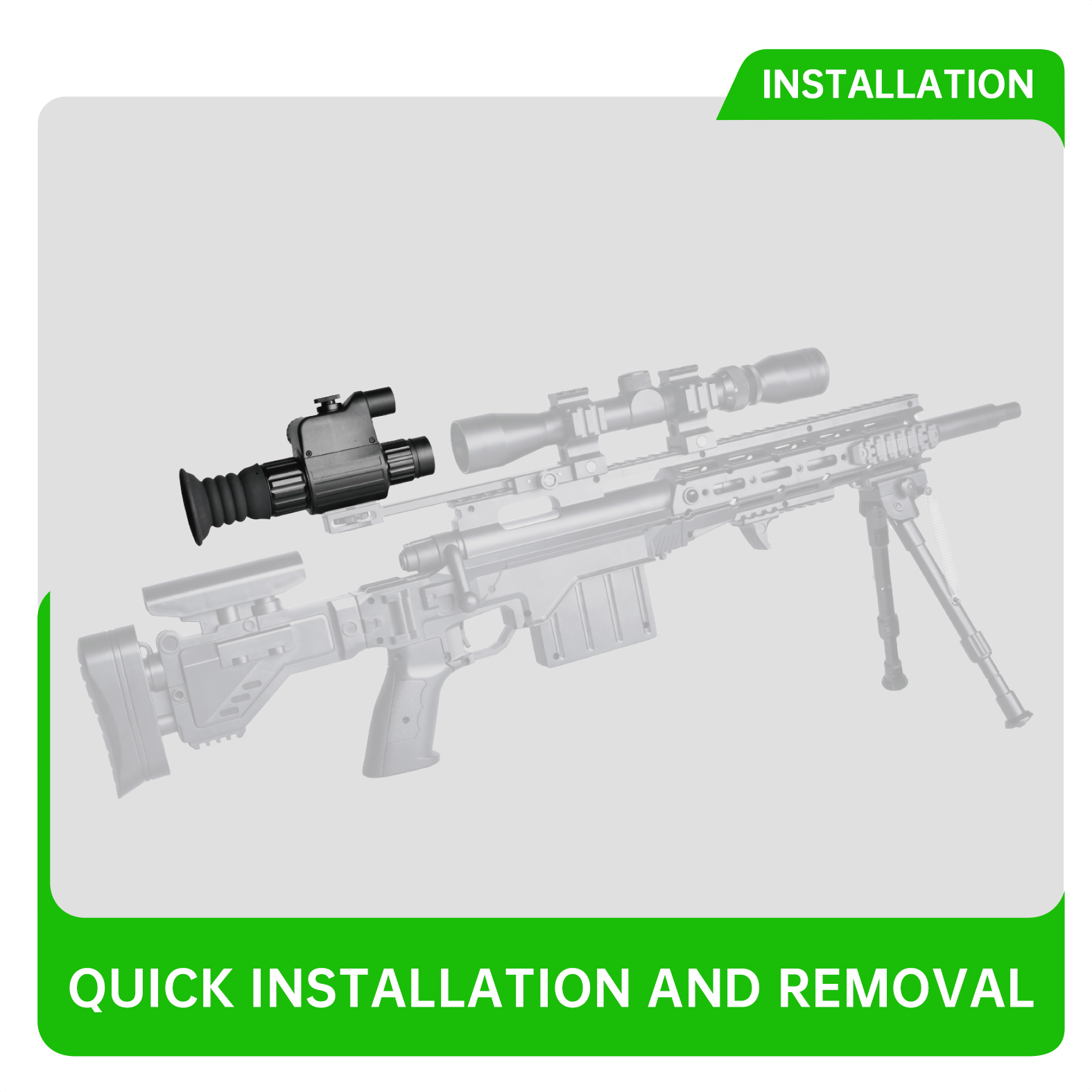

with high mechanical strength. The quick-release design is easy to remove or assemble. When used
with a daylight sight (daysight of an 8-10x lens), it can achieve a good sighting imaging at night.

Availability:

Quantity:



Inquire Add to Basket

Model:
DT-NSCB
Brand:
Detyl

微信图片_20240517112813 微信图片_20240517112818 Product feature:

1.Simple operation and convenient connection
2.With white sight for day and night use

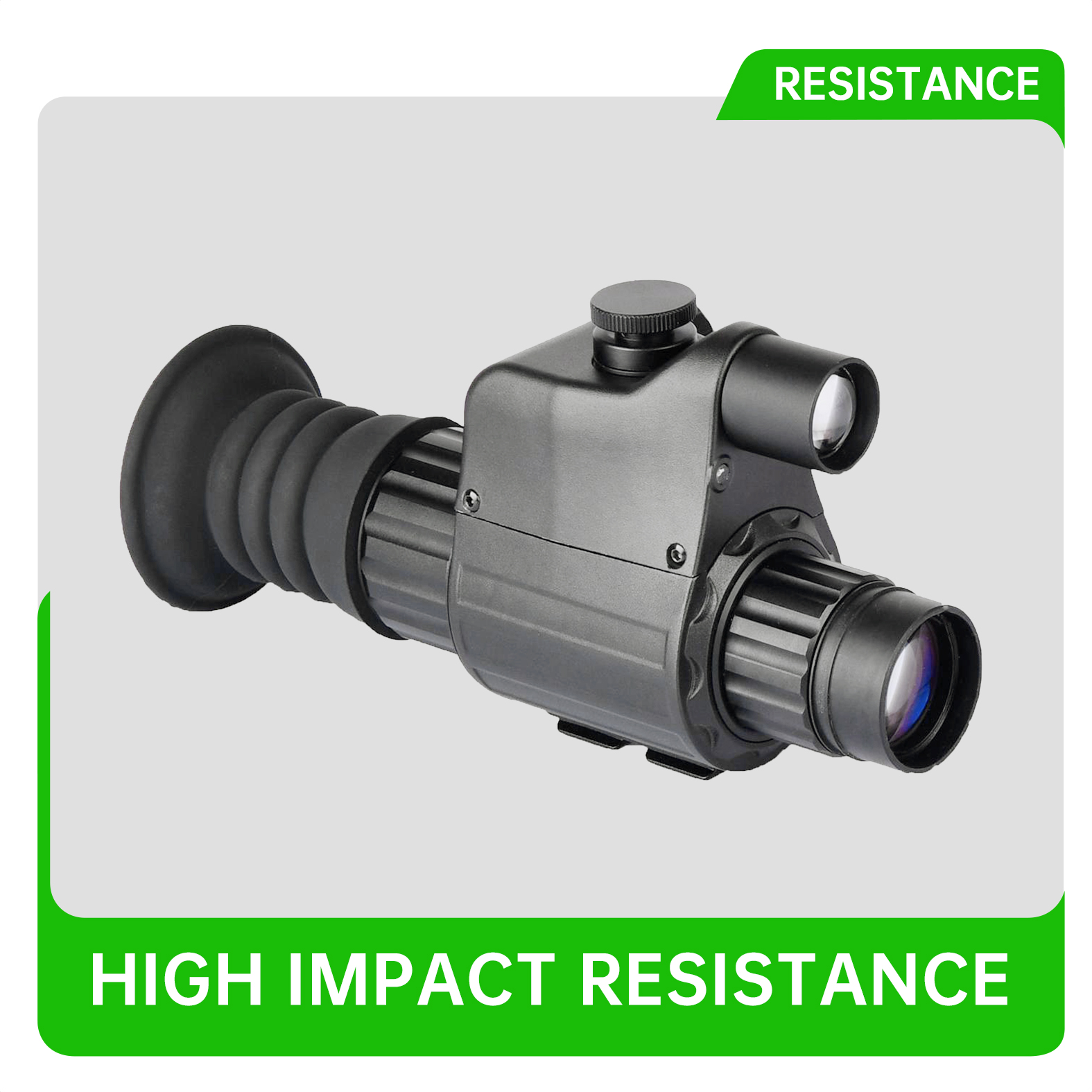

3.Impact resistance strength＞1000g

Night vision monoculars military and police supplies outdoor equipment weapon sight Night vision sight clip on system

Product Catalog

Contact Us

(+86)15625269625

jenny@detyl.com

301A/3F (Yanluo-Chuanggu Park), No. 96, Yangyong Road, Tang sha Chung Community, Song-gang Town , Baoan District, Shenzhen, China.

MODEL	DT-NSCB1	DT-NSCB3
Generation	Gen 2+/Gen3(optional)	Gen 2+/Gen3(optional)
Magnification	1X	2X
Resolution	60-64	60-64
Objective pupil	22mm	40mm
FOV(°)	40	13.5
Exit pupil diameter (mm)	50	50
Distance of pupil	9	9
Eyepiece aperture（mm）	+/-5	+/-5
Battery type（v）	The 1 section 3V lithium battery	The 1 section 3V lithium battery
Battery life（h）	40-50	40-50
Operating temperature（℃）	-40 /+50	-40 /+50
Relative humidity	5%-98%	5%-98%
Impact resistance	>800G	>800G
Waterproof	IP65/（IP67optinal）	IP65/（IP67optinal）
Dimensions（mm）	160x55x69(including eye mask)	250x58x70(including eye mask)
Weight （g）	295g(finished)	338g(finished)

MODEL	DT-NSCB1	DT-NSCB3
Generation	Gen 2+/Gen3(optional)	Gen 2+/Gen3(optional)
Magnification	1X	2X
Resolution	60-64	60-64
Objective pupil	22mm	40mm
FOV(°)	40	13.5
Exit pupil diameter (mm)	50	50
Distance of pupil	9	9
Eyepiece aperture（mm）	+/-5	+/-5
Battery type（v）	The 1 section 3V lithium battery	The 1 section 3V lithium battery
Battery life（h）	40-50	40-50
Operating temperature（℃）	-40 /+50	-40 /+50
Relative humidity	5%-98%	5%-98%
Impact resistance	>800G	>800G
Waterproof	IP65/（IP67optinal）	IP65/（IP67optinal）
Dimensions（mm）	160x55x69(including eye mask)	250x58x70(including eye mask)
Weight （g）	295g(finished)	338g(finished)
