FOV 50 Night Vision Monoculars DTS-13

DTS-13 is a new product developed based on the latest Detyl technology with a FOV 50 degrees.The weight only 220g. The magnification can be changed by replacing the objective lens. The night vision device has a built-in IR and an auto- gain system.

FOV:	40/50 deg
Weight:	220g
Service:	ODM/OEM
Availability:

Quantity:



Inquire Add to Basket

Model:
DTS-13
Brand:
Detyl

9a5f9956f4973e0031dd6a86edd7d56 Product feature:

1. Weight only 220g with tubes;
2. IP65 waterproof (IP67 optional);

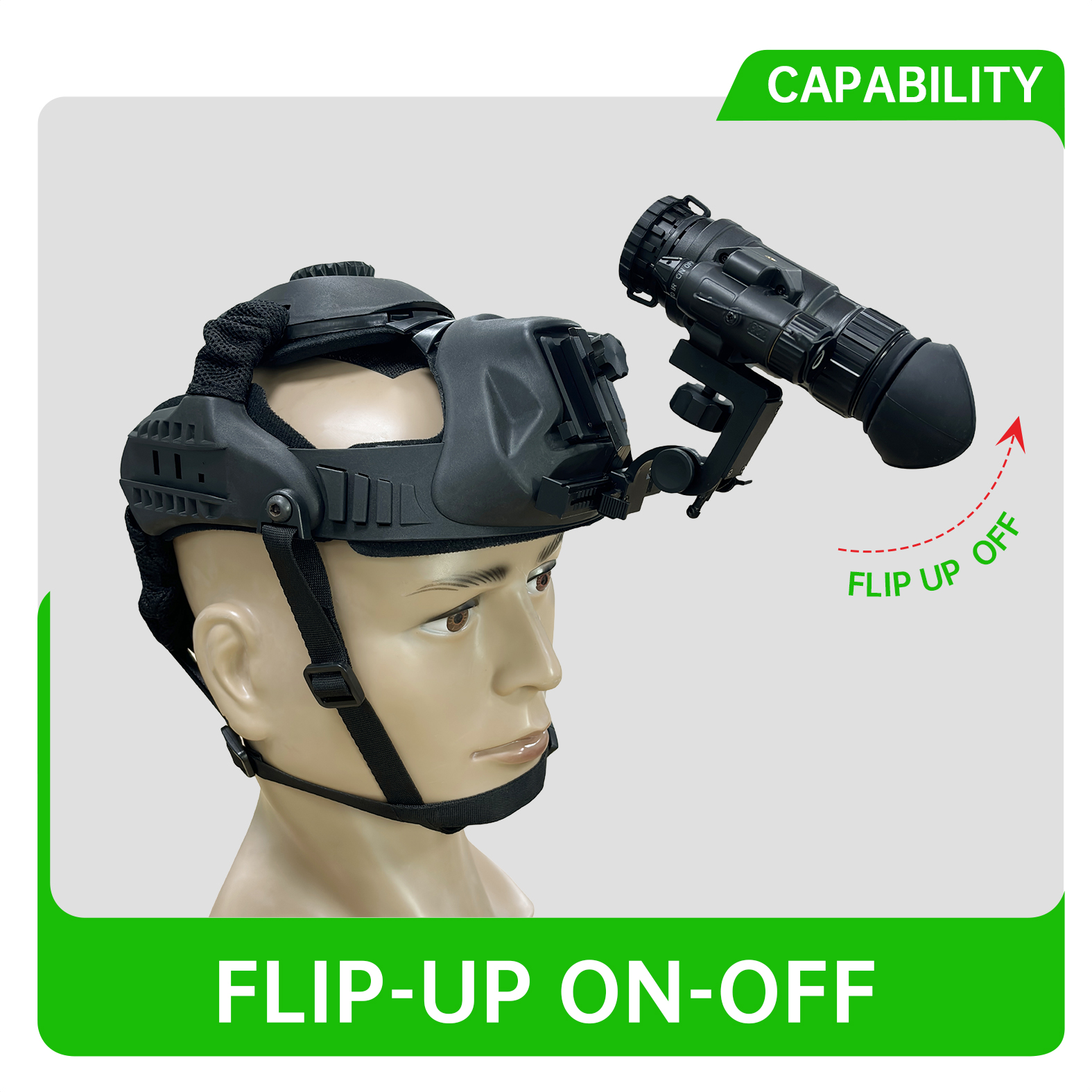

3. AUTO shut OFF/ON when flip up/down,
4. Build-in IR
5. Strong light auto shut off;
6. Eyepiece lens and objective lens coated with demist coating;
7. Offer sacrificial windows(optional);
8. IR indicator and low battery indicator;

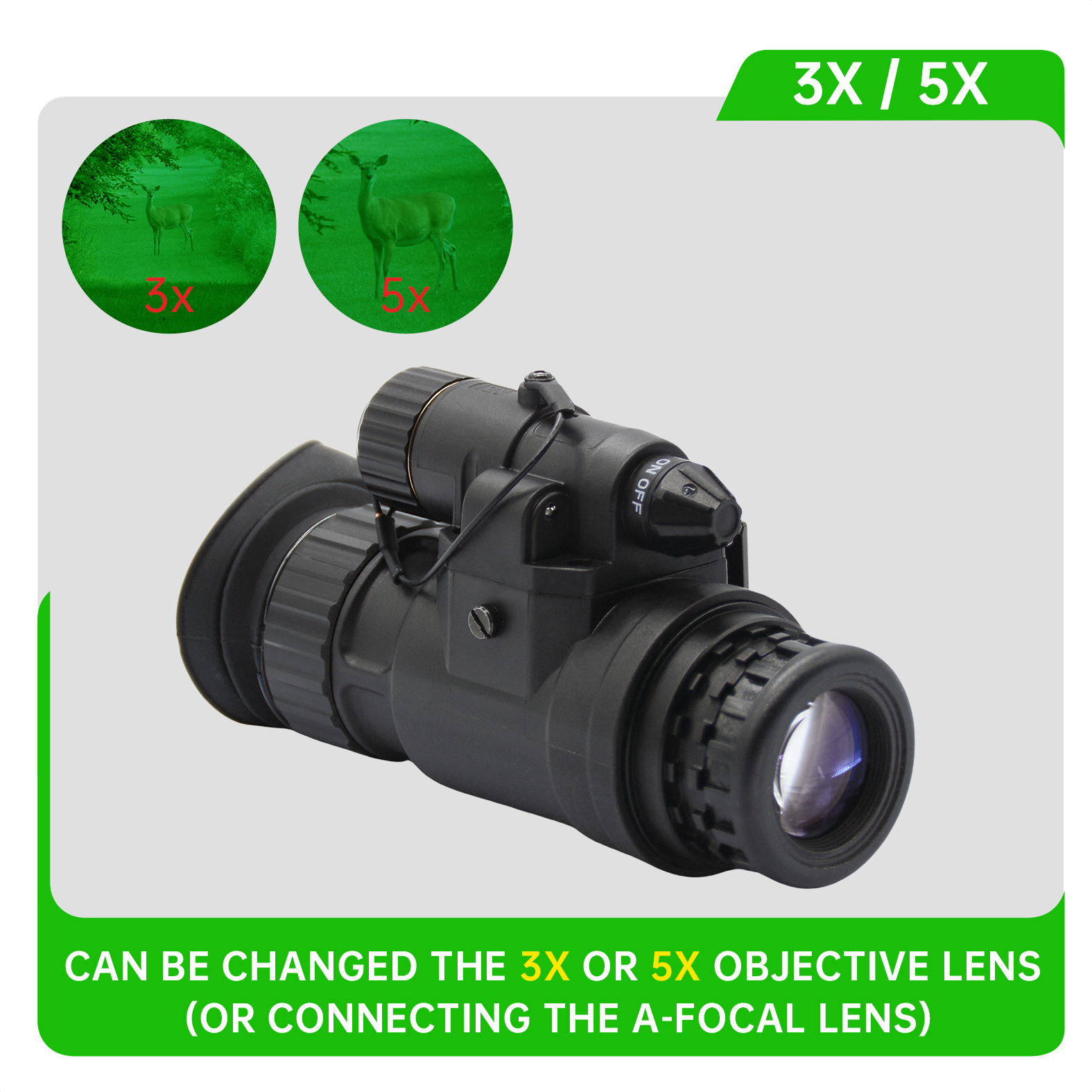

9. Offer 3X and 5X magnifier Objective lens(optional);

Night vision PVS-14 PVS14 monoculars military and police supplies optics telescopes outdoor equipment Night vision monoculars Flip shutdown gen3 tubes autogated

Product Catalog

Contact Us

(+86)15625269625

jenny@detyl.com

301A/3F (Yanluo-Chuanggu Park), No. 96, Yangyong Road, Tang sha Chung Community, Song-gang Town , Baoan District, Shenzhen, China.

MODE	DTS- 13
Generation	Gen 2+/Gen3(optional)
Magnification	1X
Resolution ( lp/mm)	60-64
S/N （dB）	18-24
Luminous sensitivity（uA/lm）	600-800
FOV(。)	50+/-2 (40 optional)
Diopter	+5/-5
Capability	Flip-Up On-Off
Automatic Brightness Control	YES
Bright Light Cut-off	YES
Infrared Illuminator	Built-in(850nm 20mW)
IR Indicator	YES
Low Battery Indicator	YES
Optical distortion	<0.5%
Pupil distance（mm）	20-45
Battery Voltage	2.6-4.2V
Battery type	CR123(A)x1
Temperature range (℃)	-40/+50
Humidity range	5%-98%
Waterproof	IP65（IP67 optional）
Dimensions（mm）	110x63x42
Weight（no battery）	171g(housing)/220g(finished)

MODE	DTS- 13
Generation	Gen 2+/Gen3(optional)
Magnification	1X
Resolution ( lp/mm)	60-64
S/N （dB）	18-24
Luminous sensitivity（uA/lm）	600-800
FOV(。)	50+/-2 (40 optional)
Diopter	+5/-5
Capability	Flip-Up On-Off
Automatic Brightness Control	YES
Bright Light Cut-off	YES
Infrared Illuminator	Built-in(850nm 20mW)
IR Indicator	YES
Low Battery Indicator	YES
Optical distortion	<0.5%
Pupil distance（mm）	20-45
Battery Voltage	2.6-4.2V
Battery type	CR123(A)x1
Temperature range (℃)	-40/+50
Humidity range	5%-98%
Waterproof	IP65（IP67 optional）
Dimensions（mm）	110x63x42
Weight（no battery）	171g(housing)/220g(finished)
