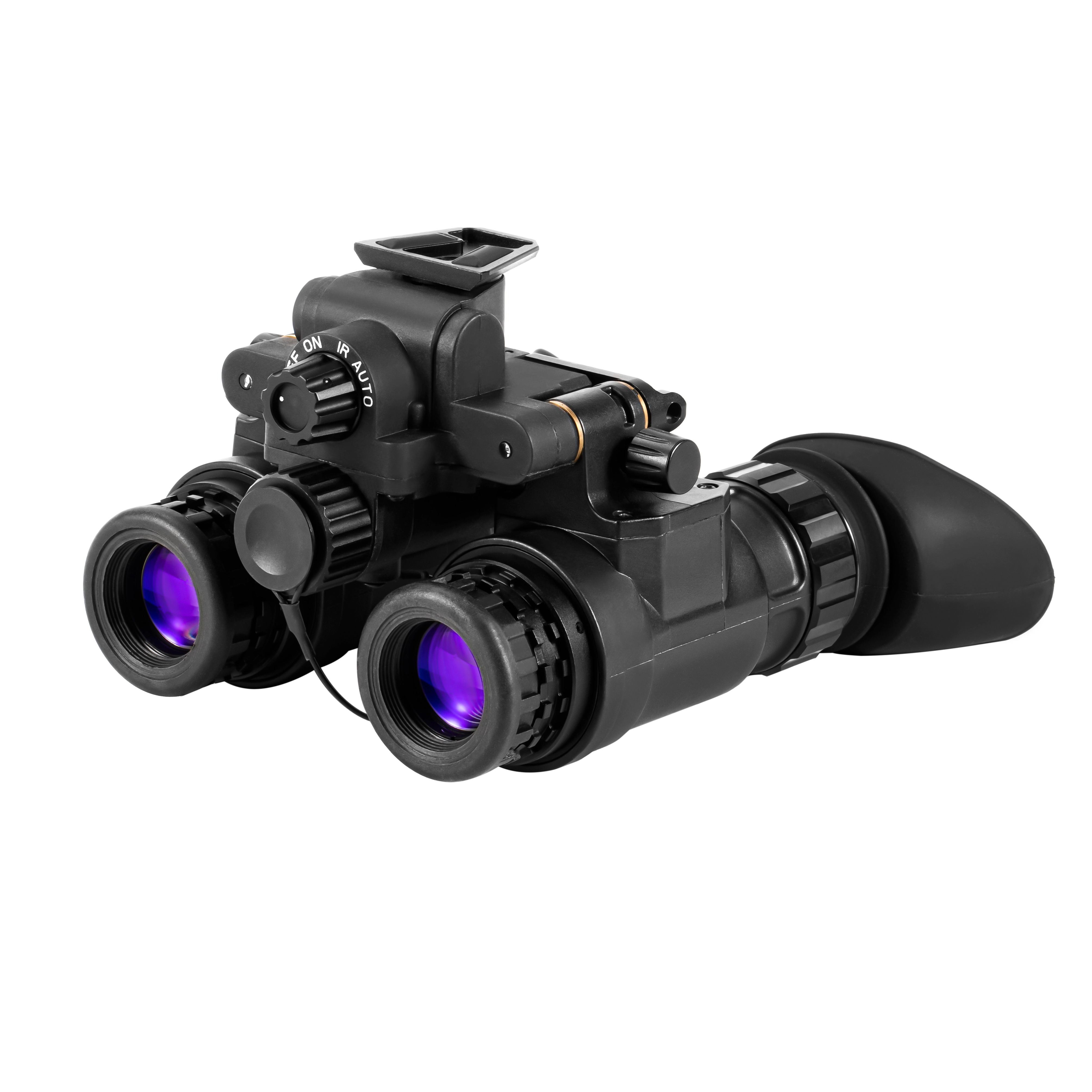

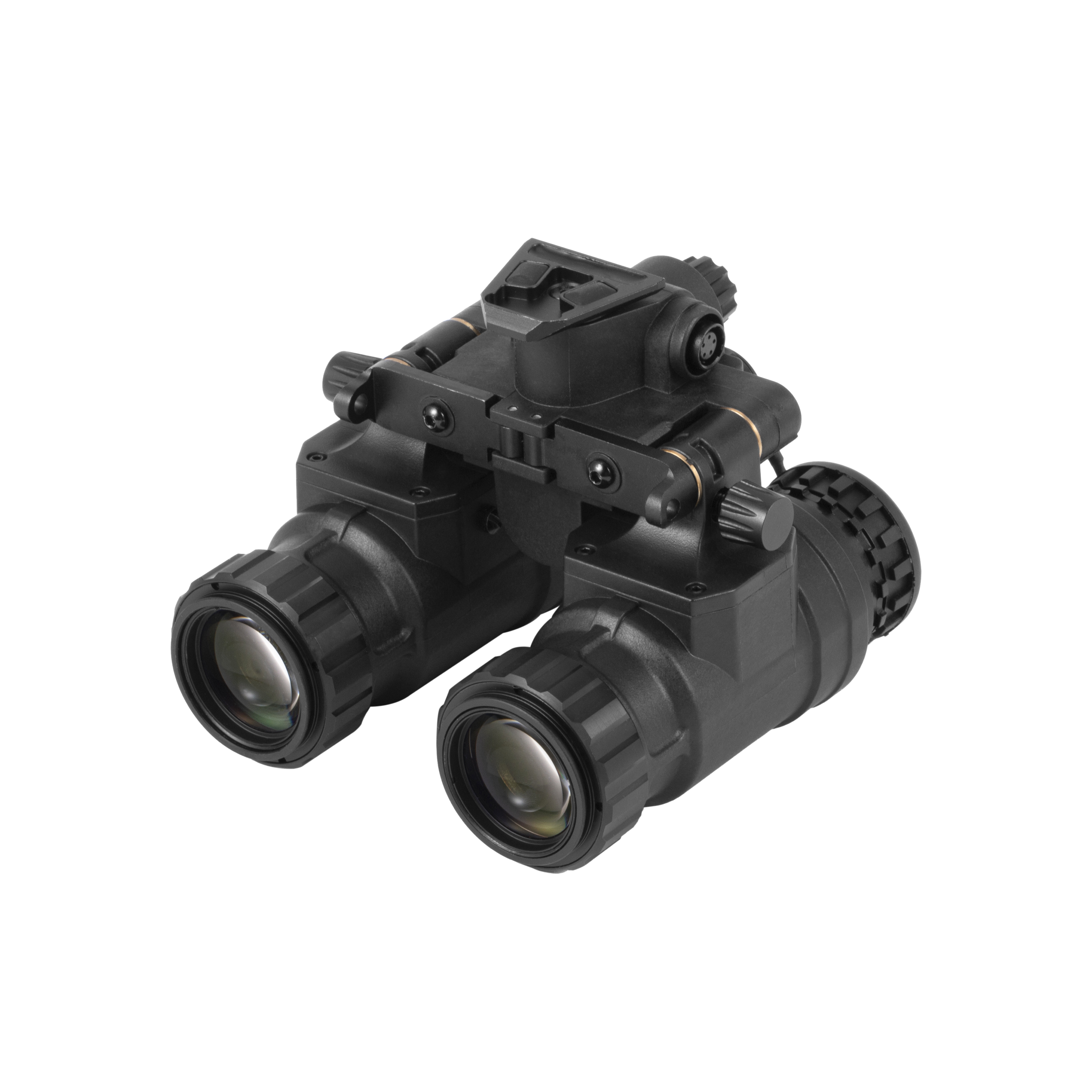

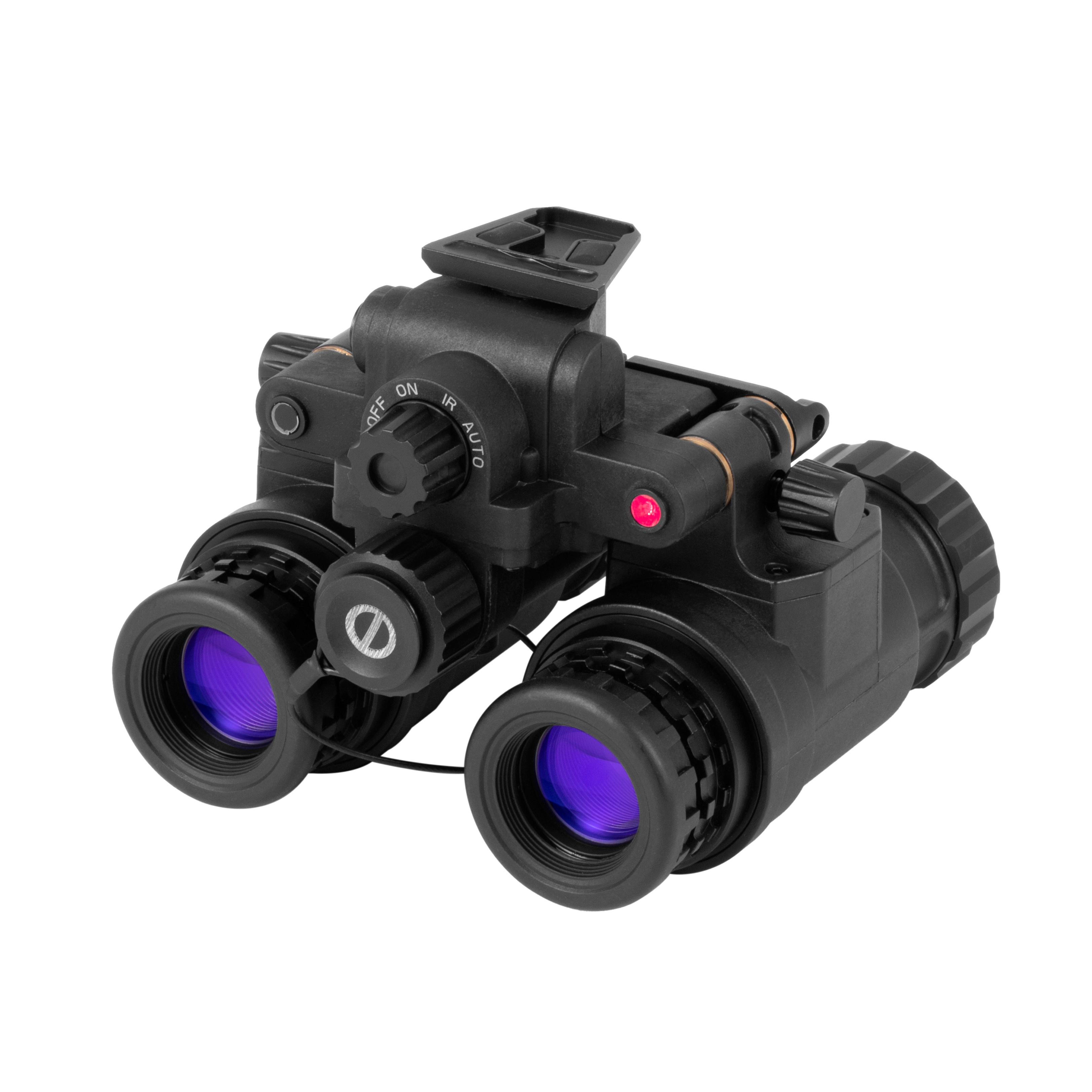

FOV 50 Night Vision Binocualrs DTS-31N

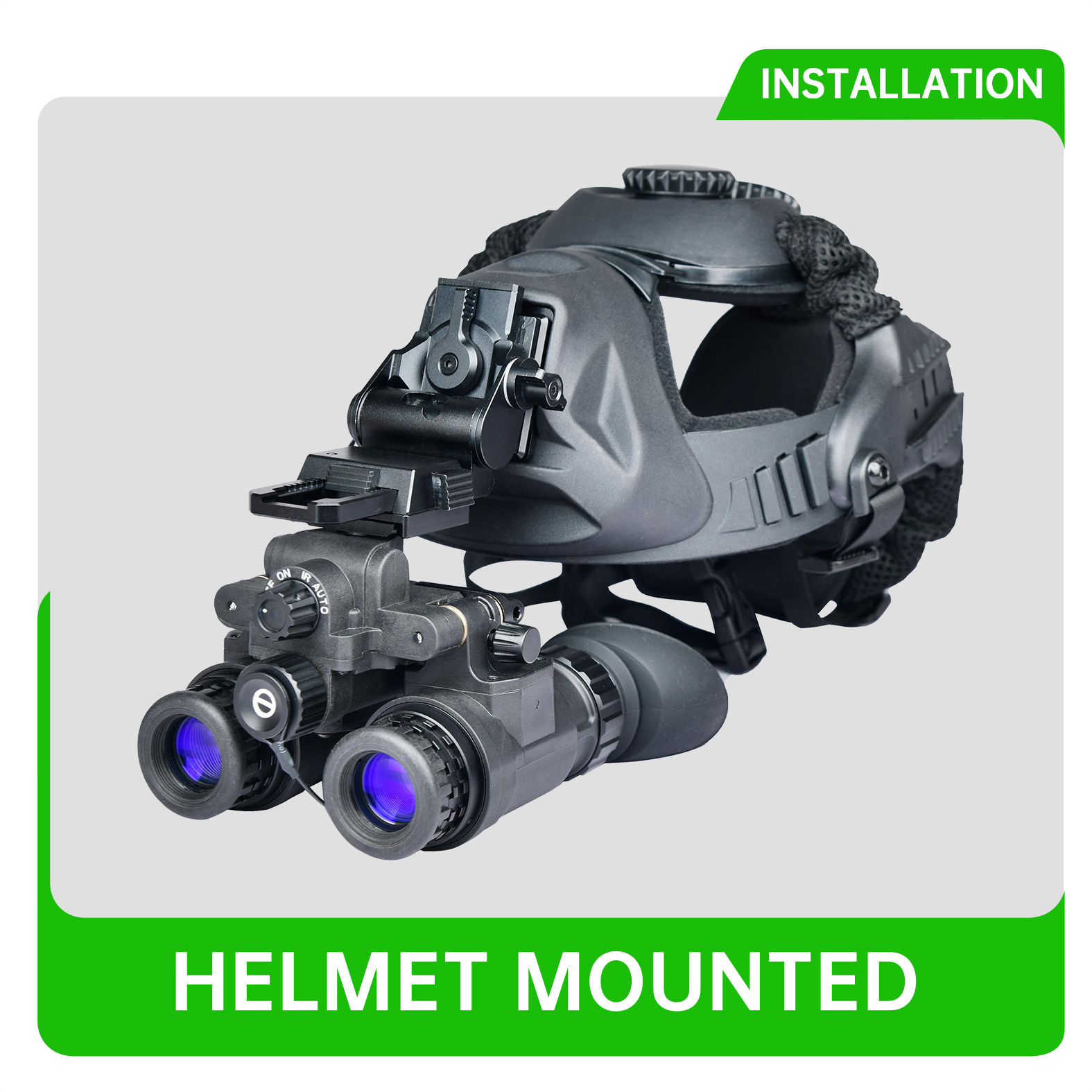

DTS-31N is a high-performance military head mounted night vision binocular built by Detyl
Optoelectronics with reference to PVS31, an active head mounted night vision binocular in the

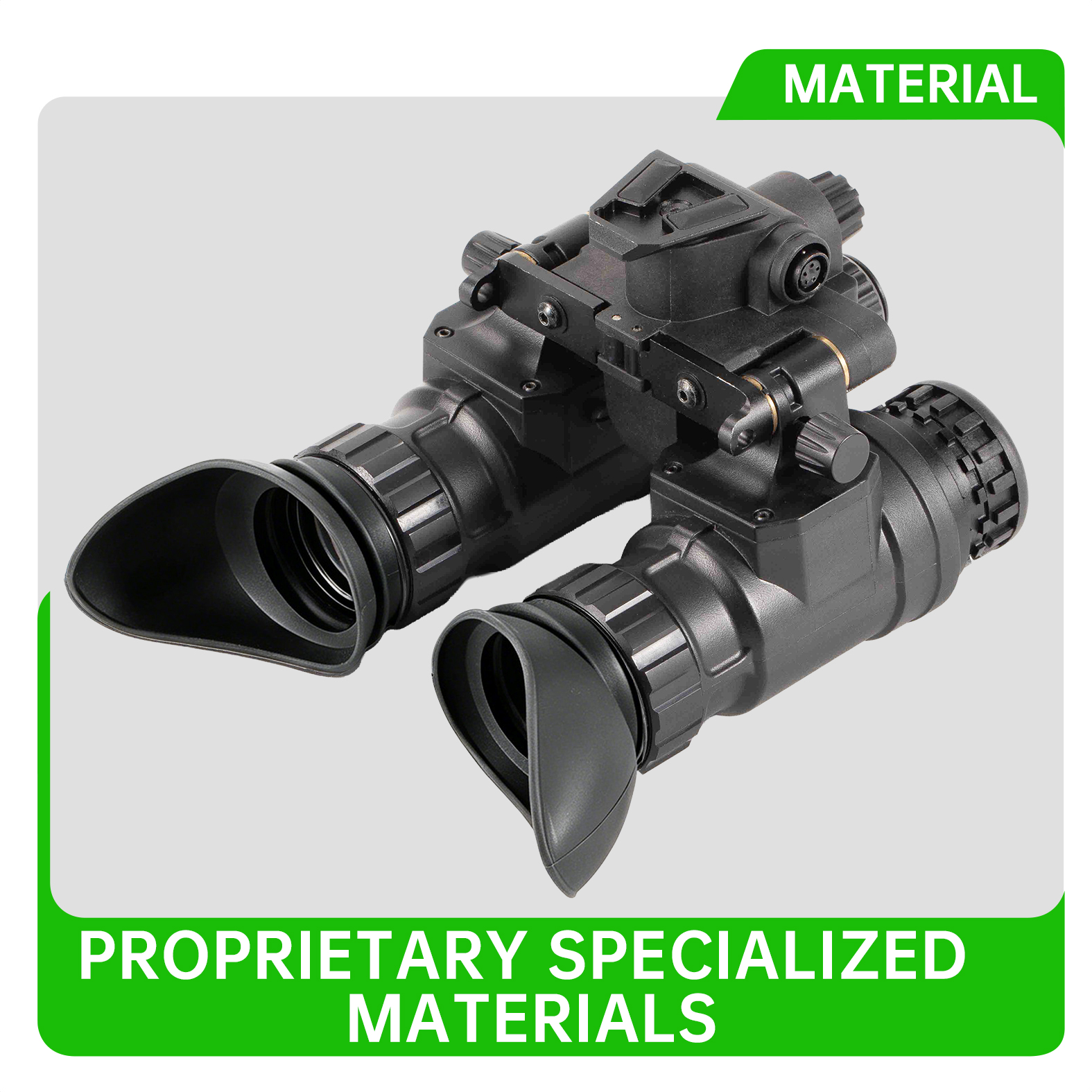

United States. DTS-31N has super large field of view, high definition, no distortion, light weight, high strength (the overall performance is much better than the original version of the U.S. military
products), which is the ideal choice for military night equipment.

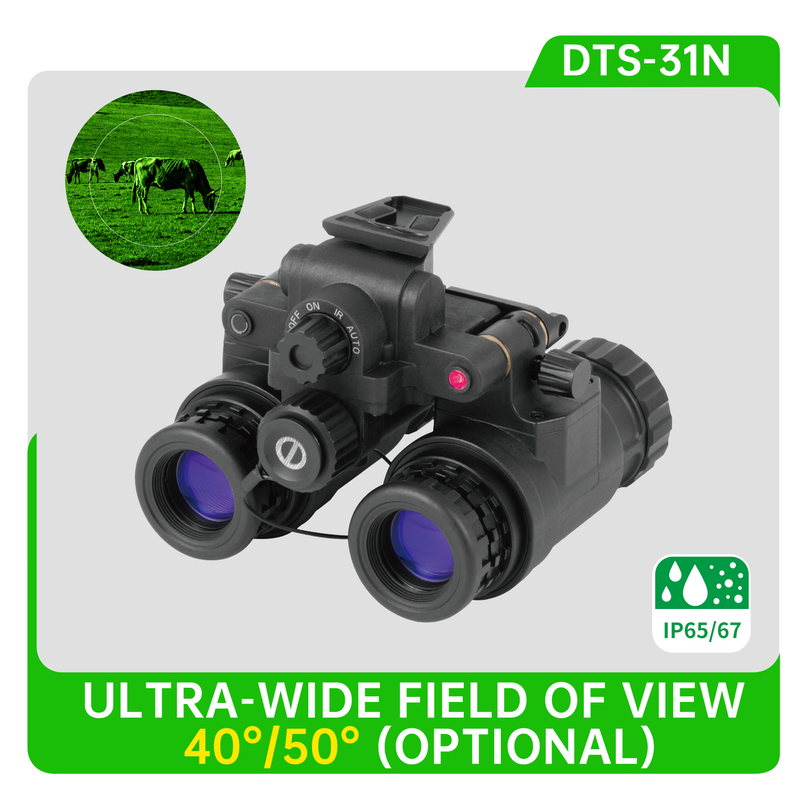

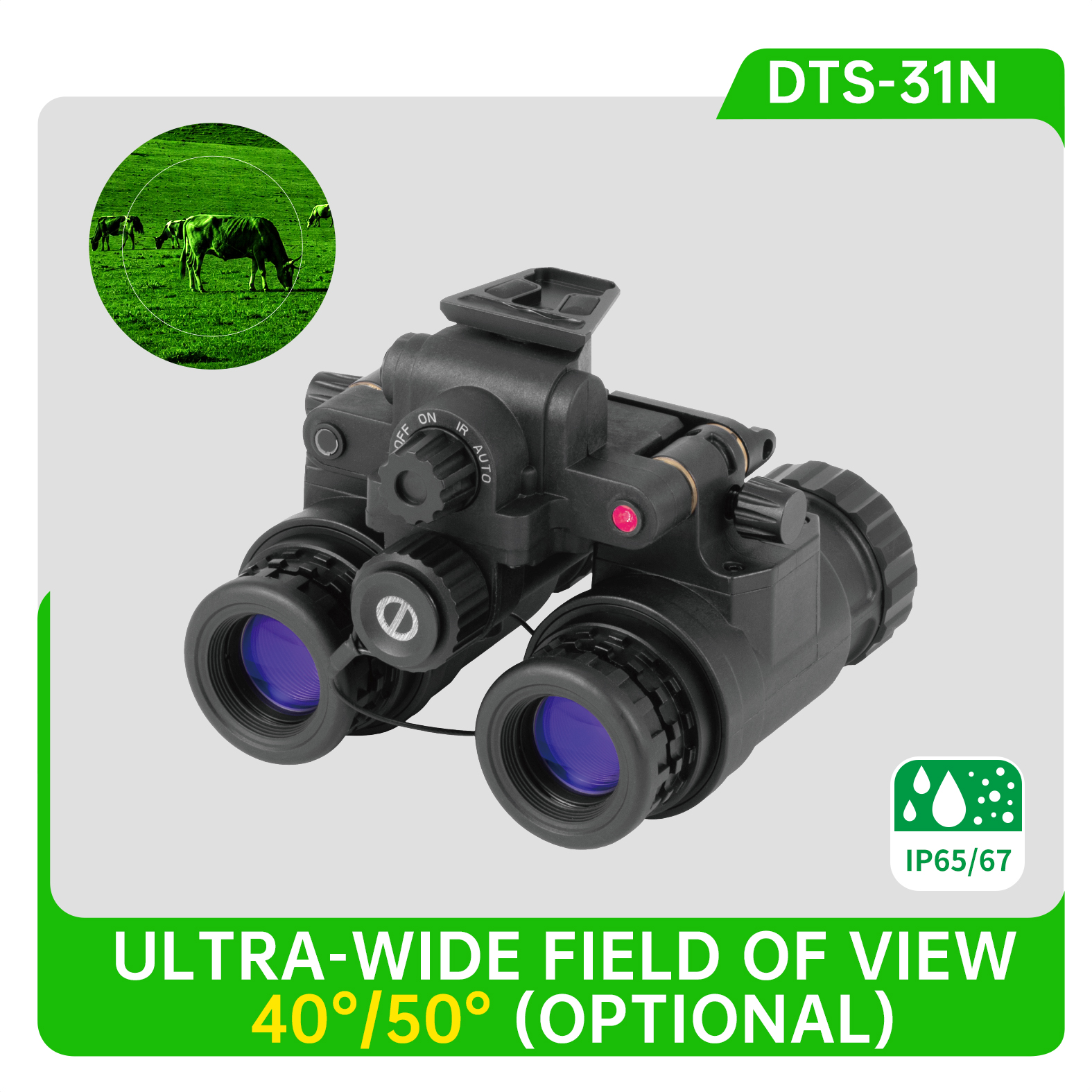

FOV:	40/50 deg
Weight:	520g
Service:	ODM/OEM
Availability:

Quantity:



Inquire Add to Basket

Model:
DTS-31
Brand:
Detyl

993e2d172bb126c5715fe3d5c6465d9 Product feature:

1.The truly field of view 50 degrees

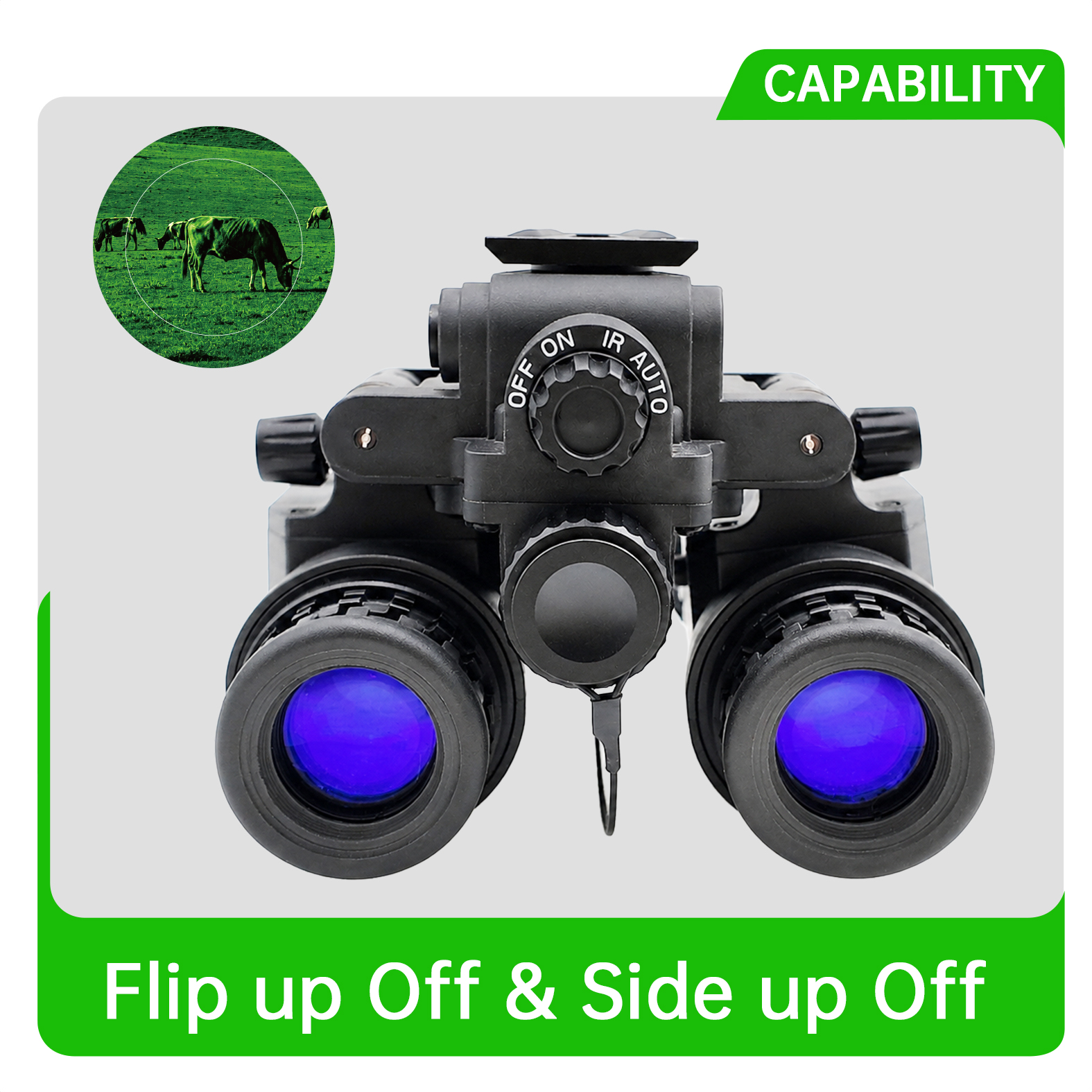

2.Flip-Up On-Off, Side Flip-Up On-Off
3.The diopter can be adjusted -5/+5

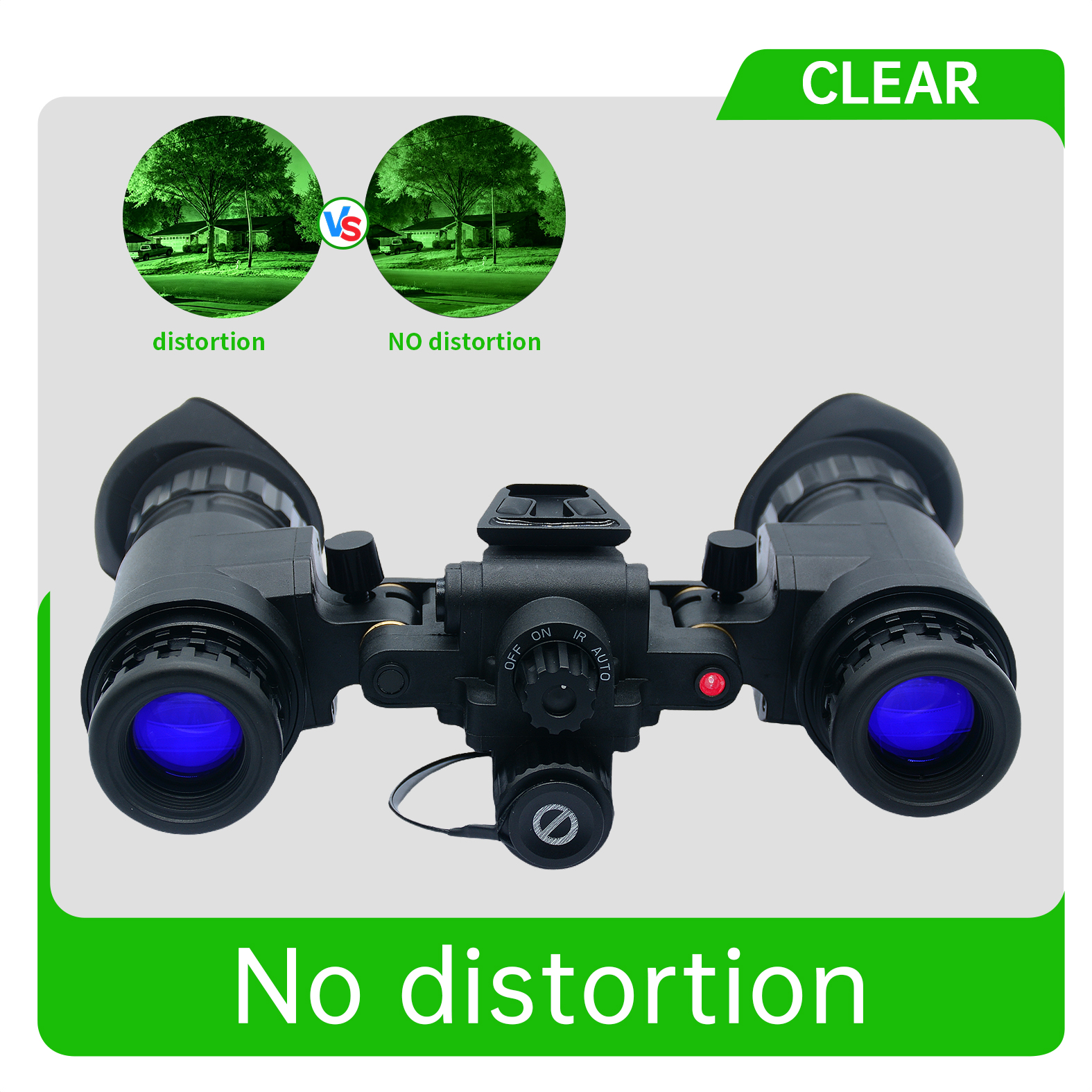

4.No distortion , full screen clearly without distortion

5. IR indicator and low battery indicator;
6. Offer 3X and 5X A focal lens(optional);
7. Large IPD range;

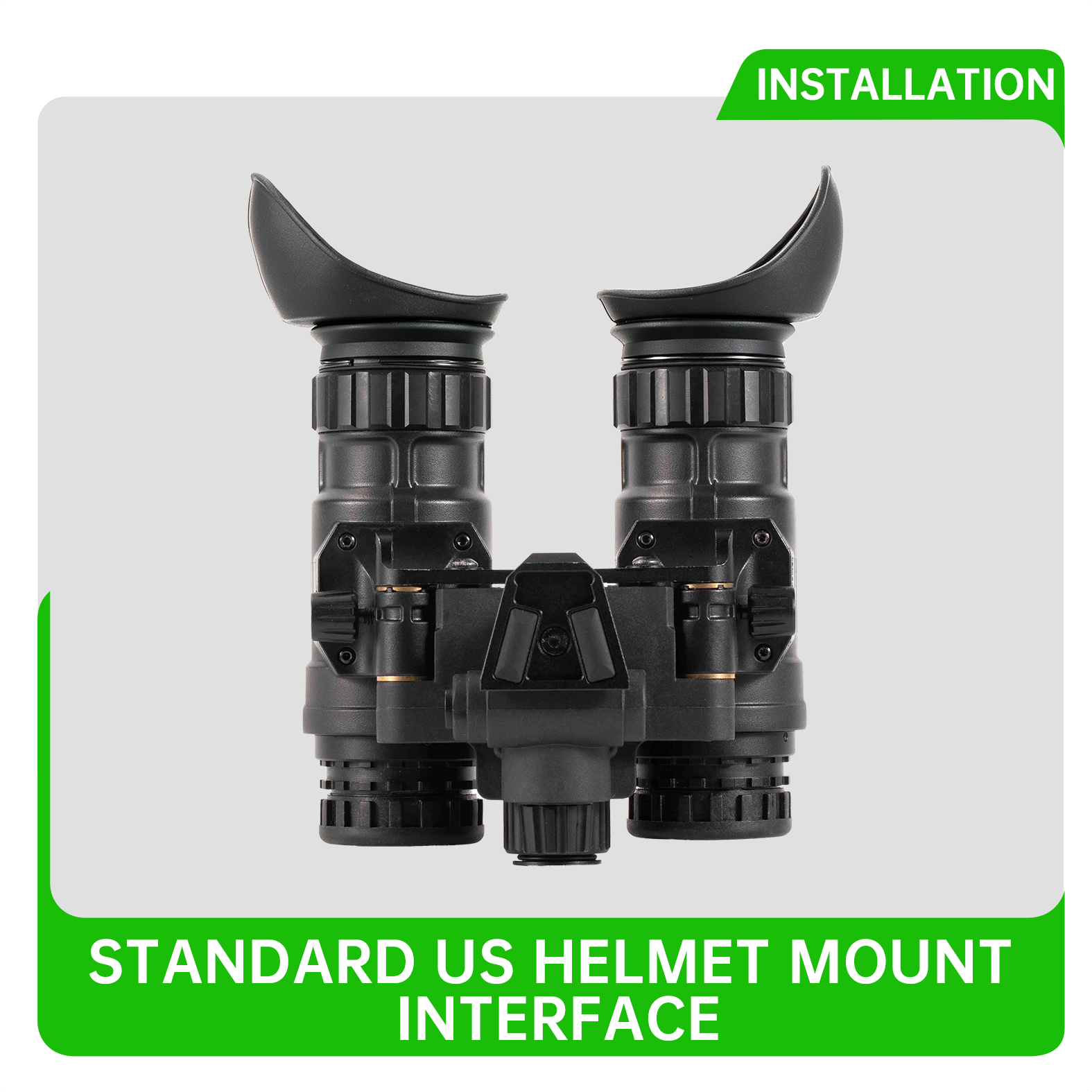

8. Battery packs and mounts
9. Manual gain control version is optional;

Night vision binoculars Night vision goggles military equipment PVS14 monoculars Night vision military and police supplies pvs-31 FOV 50

Product Catalog

Contact Us

(+86)15625269625

jenny@detyl.com

301A/3F (Yanluo-Chuanggu Park), No. 96, Yangyong Road, Tang sha Chung Community, Song-gang Town , Baoan District, Shenzhen, China.

MODEL	DTS-31N
Generation	Gen 2+/Gen3(optional)
Magnification	1X
Resolution	63-70 lp/mm
FOV（ °）	50+/-2 (40 optional)
Diopter	+ / - 5
Capability	Flip-Up On-Off, Side Flip-Up On-Off
Optical distortion	0.5% Max
Automatic Brightness Control	YES
Bright Light Cut-off	YES
Infrared Illuminator	Built-in(850nm 20mW)
IR Indicator	YES
Low Battery Indicator	YES
Power Supply	1x3V(CR123)
Battery Life	60 h - standard/ 300 h - with Battery Pack (optional)
Distance of pupil	30mm
Eyepiece aperture	8mm
Eye distance adjustment range	50-80mm
Operating temperature	-40--+55℃
Relative humidity	5%-95%
Waterproof	IP65/IP67
Dimensions	115mmx178 mm x 85mm
Weight	452g(housing )/520g(finished)

MODEL	DTS-31N
Generation	Gen 2+/Gen3(optional)
Magnification	1X
Resolution	63-70 lp/mm
FOV（ °）	50+/-2 (40 optional)
Diopter	+ / - 5
Capability	Flip-Up On-Off, Side Flip-Up On-Off
Optical distortion	0.5% Max
Automatic Brightness Control	YES
Bright Light Cut-off	YES
Infrared Illuminator	Built-in(850nm 20mW)
IR Indicator	YES
Low Battery Indicator	YES
Power Supply	1x3V(CR123)
Battery Life	60 h - standard/ 300 h - with Battery Pack (optional)
Distance of pupil	30mm
Eyepiece aperture	8mm
Eye distance adjustment range	50-80mm
Operating temperature	-40--+55℃
Relative humidity	5%-95%
Waterproof	IP65/IP67
Dimensions	115mmx178 mm x 85mm
Weight	452g(housing )/520g(finished)
