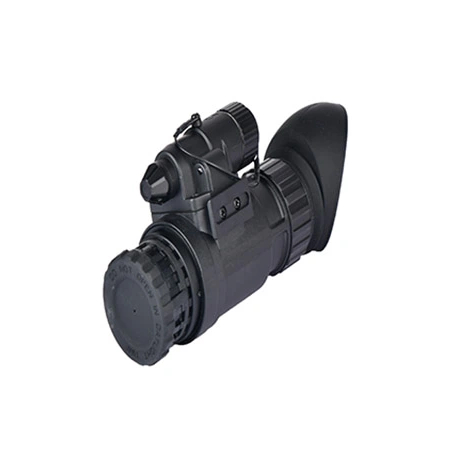

DTS-13

The DTS-13 night vision is a new product developed based on the latest optoelectronics technology with a field of view of 50 degrees. The imaging is clear, the operation is simple. The magnification can be changed by replacing the objective lens. The night vision device has a built-in infrared Illuminator and an auto- gain system. The product has strong practicability and can be used for military observation, border and coastal defense reconnaissance, public security surveillance, evidence collection, customs anti-smuggling, etc. in the night without lighting. It is equipment for public security departments, armed police forces, special police forces, and guarding patrols
Availability:
Quantity:

Product Description:

The DTS-13 night vision is a new product developed based on the latest optoelectronics technology with a field of view of 50 degrees. The imaging is clear, the operation is simple. The magnification can be changed by replacing the objective lens. The night vision device has a built-in infrared Illuminator and an auto- gain  system. The product has strong practicability and can be used for military observation, border and coastal defense reconnaissance, public security surveillance, evidence collection, customs anti-smuggling, etc. in the night without lighting. It is equipment for public security departments, armed police forces, special police forces, and guarding patrols



MODLE

DTS-13

Image intensifier

GEN2+)

Magnification

1X

Resolution ( lp/mm)

51-57

Photocathode

S25

S/N (dB)

15-21

Luminous sensitivity(uA/lm)



450-500

MTTF

10,000

FOV(degree)

42+/-3

Detection distance(M)

180-220

Graduation cursor

Internal(optional)

Diopter range

+5/-5

Optical system

F1.2, 25mm

Coating

Multilayer broadband coating

Distance range(M)

0.25--∞

Auto anti strong light

High sensitivity broadband detection

Rollover detection

Solid non-contact automatic detection

Dimensions(mm)

110*65*45

Materials

plastic

Weight(no battery)

240g

Battery Voltage

2.6-4.2V

Battery type

CR123(A)x1

Battery life(H)

80(IR OFF)    40(IR ON)

Temperature range(℃)

-40/+50

Humidity range

5%-98%

Waterproof

IP65(IP67 optional)
