DTG-18N
Home » Night Vision » Goggles » DTG-18N

DTG-18N

With the new technology, Detyl developed a new Ground Panoramic Night Vision Goggles which called DTG-18N, The purpose of the DTG-18N is to provide the operator more information under goggles, allowing him to more quickly move through the OODA Loop (Observe, Orient, Decide, Act).
Quantity:

Description

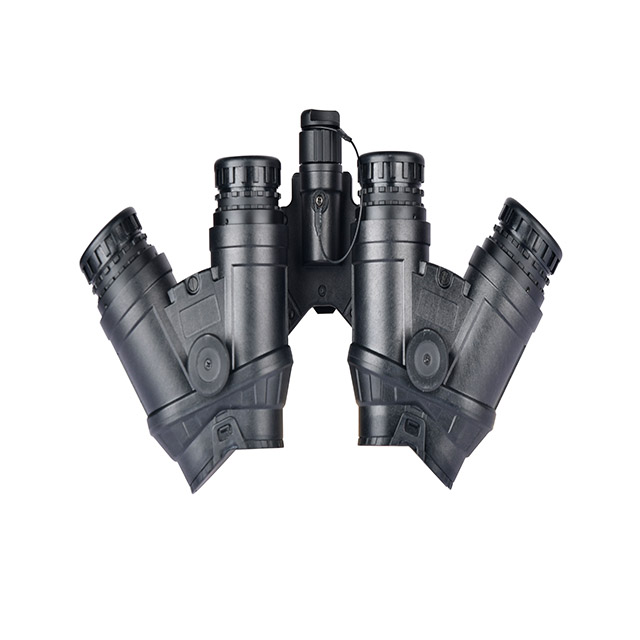

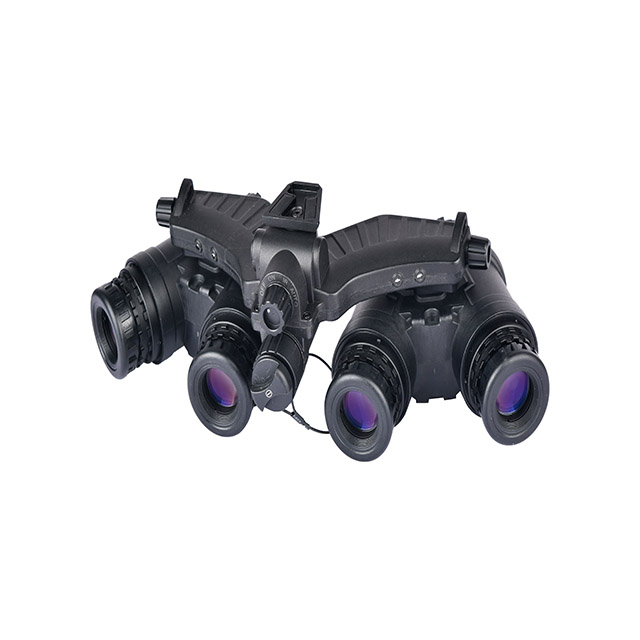

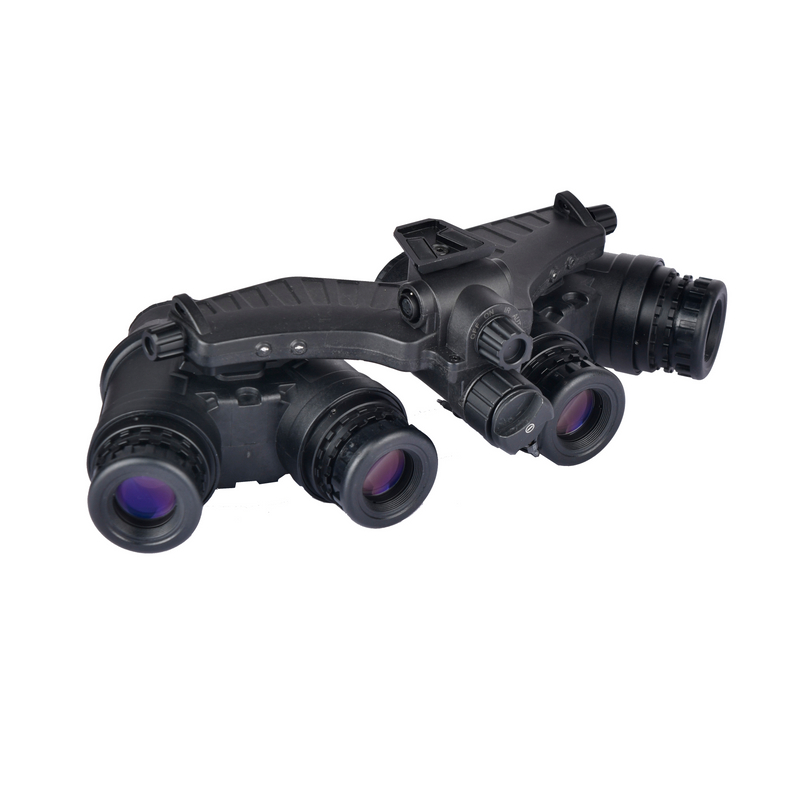

With the new technology, Detyl developed a new Ground Panoramic Night Vision Goggles which called DTG-18N, The purpose of the DTG-18N is to provide the operator more information under goggles, allowing him to more quickly move through the OODA Loop (Observe, Orient, Decide, Act). The most striking feature of the DTG-18N is the presence of four separate image intensifier tubes with four separate objective lenses arrayed in a panoramic orientation. The center two lenses point forward like traditional dual-tube goggles, giving the operator more depth perception, while two more tubes point slightly outward from the center to increase peripheral view. The two tubes on the right and the two on the left are spliced at the eyepieces. The operator sees the two center tubes somewhat overlapping the two outer tubes to produce an unprecedented 120° FOV. This is an absolute game-changer for the SOF community. The two right and two left tubes are housed in merged assemblies and are hung from a bridge, giving operators interpupillary adjustment options. They can also be easily removed and operated as independent handheld viewers. The IPD of the two system can be adjusted on the helmet mount.





The DTG-18N is not only powered by a battery on the device, but also by a remote battery packs, tethered to the unit via a standard DC cable. It comes with a pack that accepts four 3-Volt CR123A batteries that tend to power the unit for 50-80 hours (IR off). The remote battery pack provides a secondary function as a counterweight, which is needed considering the goggle weighs about 880g..





Model

DTG-18N

Structural mode

helmeted turnover four-eyed NVG

Battery type

Lithium battery (cr123Ax1) / cr123Ax4 external battery pack

Power supply

2.6-4.2V

Installation

Head mounted(standard American helmet interface)

Control mode

ON/IR/AUTO

Over power consumption

<0.2W

 Battery capacity

800-3200maH

Battery life

30-80H

Magnification

1X

 FOV(°)

120x50 +/-2 °

Horizontal 120+/-2 °

Vertical 50 +/-2 °

Parallelism of optical axis

<0.1°

IIT

 gen2+ / gen 3

GAIn

Auto

Lens system

F1.18  22.5mm

MTF

120LP/mm

Optical distortion

3% Max

Relative Illumination

>75%

Coating

Multilayer broadband coating

 Focus range

250mm-∞

Focus mode

 Manual focus facility

eye relief

30mm

Pupil diameter

8mm

 Visibility range

-1(+0.5~-2.5)

IPD adjust type

Arbitrary continuously adjustable

IPD adjust range

50-85mm

IPD lock type

 Manual lock

IR

850nm 20mW

Working temperature range

-40--+55℃

Humidity range

5%-95%

Waterproof

IP65/IP67

Dimensions

155x136x83mm

Weight

880G(without battery)
