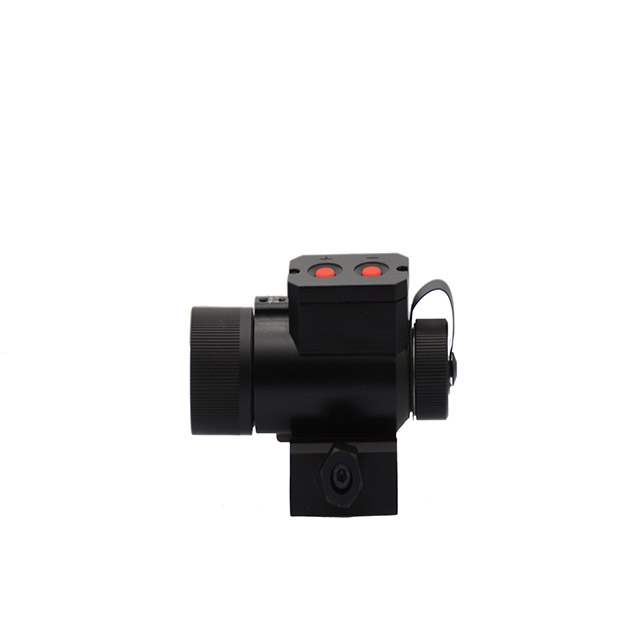

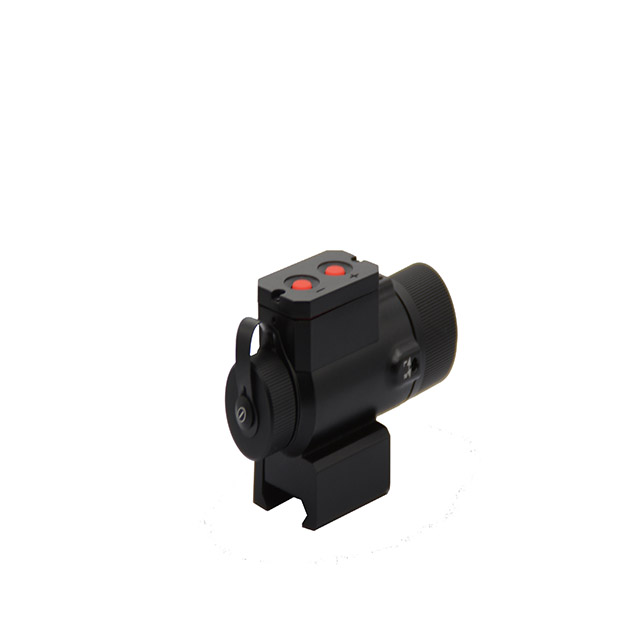

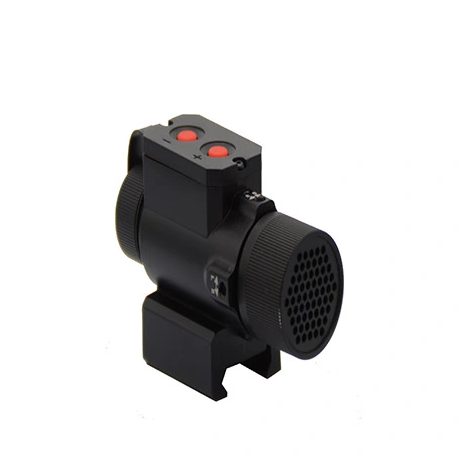

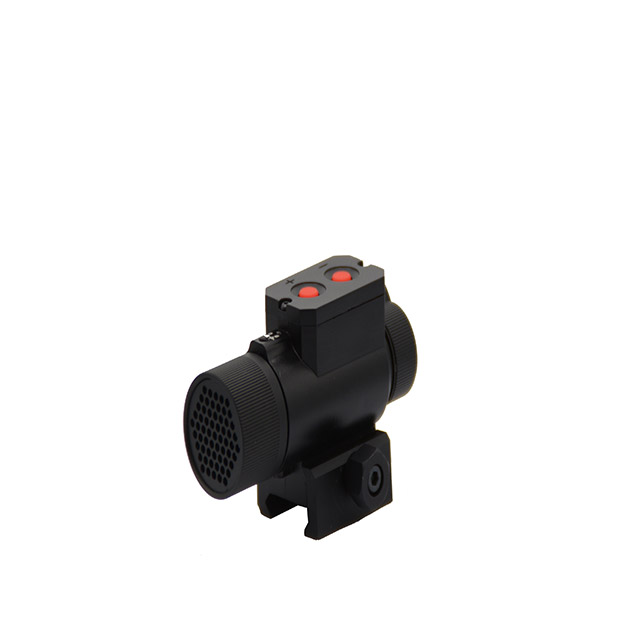

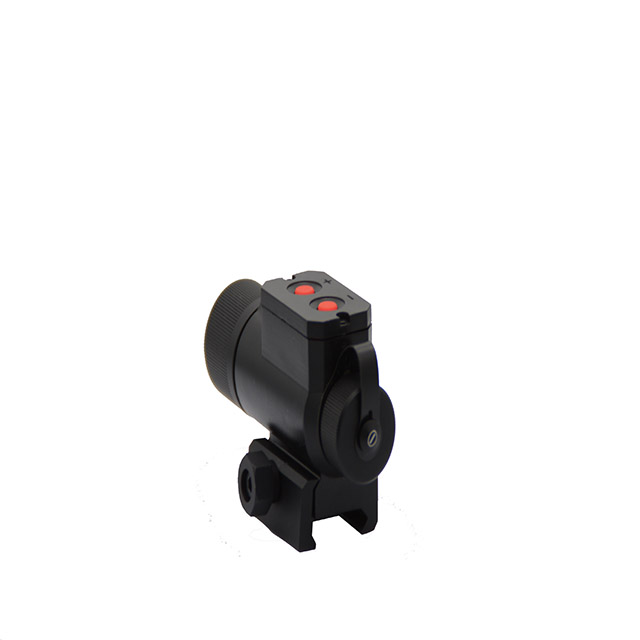

This IR illuminator DT - TX series products are specifically for sight use environment and the characteristics of the design. With small volume, light weight, high strength, easy installation and adjustment, uniform light, small power, brightness is adjustable, adjustable launch direction, irradiation distance, and good concealment. Ideal for military, police, outdoor hunting all black environments such as use with night vision sight.
Technical specifications:MODLE | TX8N | TX9N | TX8W | TX9W |
Light type | IR(No stripe) | IR(No stripe) | IR(No stripe) | IR(No stripe) |
wavelength(nm) | 850 | 940 | 850 | 940 |
Angle of irradiation | 5° | 5° | 10° | 10° |
Light shape | circular | circular | circular | circular |
Power(Max) | 1.2W | 1.2W | 1.2W | 1.2W |
Light quality | Adjustable | Adjustable | Adjustable | Adjustable |
Brightness level(Step) | 11 | 11 | 11 | 11 |
Brightness control | Keyboard | Keyboard | Keyboard | Keyboard |
Battery Voltage | 2.4-4.2V | 2.4-4.2V | 2.4-4.2V | 2.4-4.2V |
Battery Type | CR123(A) | CR123(A) | CR123(A) | CR123(A) |
Irradiation distance | >300M | >300M | >200M | >200M |
Battery quantity | 1 | 1 | 1 | 1 |
Battery life(Step6) | 5H | 5H | 5H | 5H |
Direction adjust | Up/Dn&R/L | Up/Dn&R/L | Up/Dn&R/L | Up/Dn&R/L |
Concealment | Anti red nets | Anti red nets | Anti red nets | Anti red nets |
Mountting | Standard fixture | Standard fixture | Standard fixture | Standard fixture |
material | Aviation aluminum | Aviation aluminum | Aviation aluminum | Aviation aluminum |
Temperature(ºC) | -30~+50 | -30~+50 | -30~+50 | -30~+50 |
shock strength | >1000G | >1000G | >1000G | >1000G |
Size(mm) | 92x41x54 | 92x41x54 | 92x41x54 | 92x41x54 |
Weight(no battery) | 145g | 145g | 145g | 145g |
waterproof | IP65 (IP67 OP.) | IP65 (IP67 OP.) | IP65 (IP67 OP.) | IP65 (IP67 OP.) |
