DT-QX8

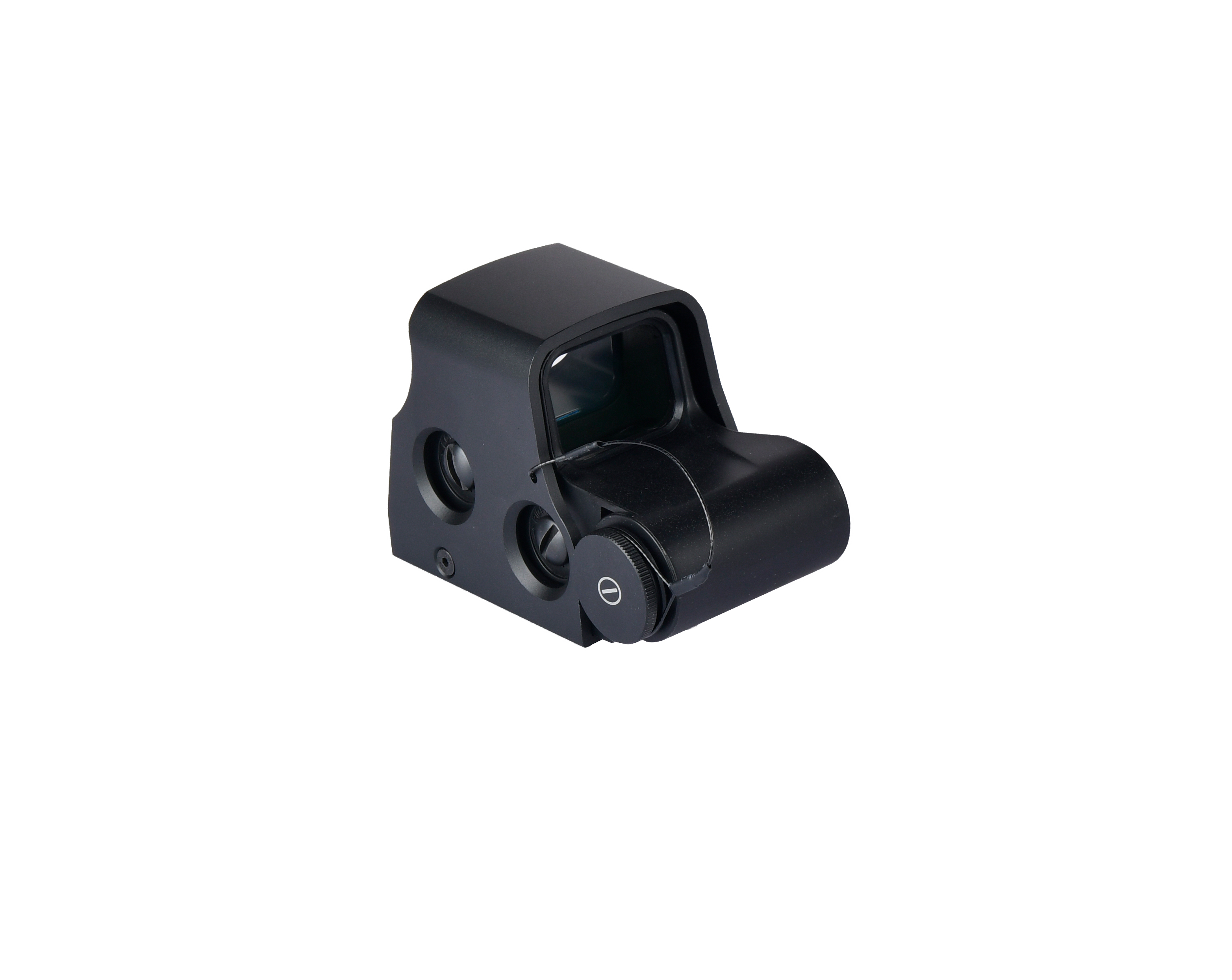

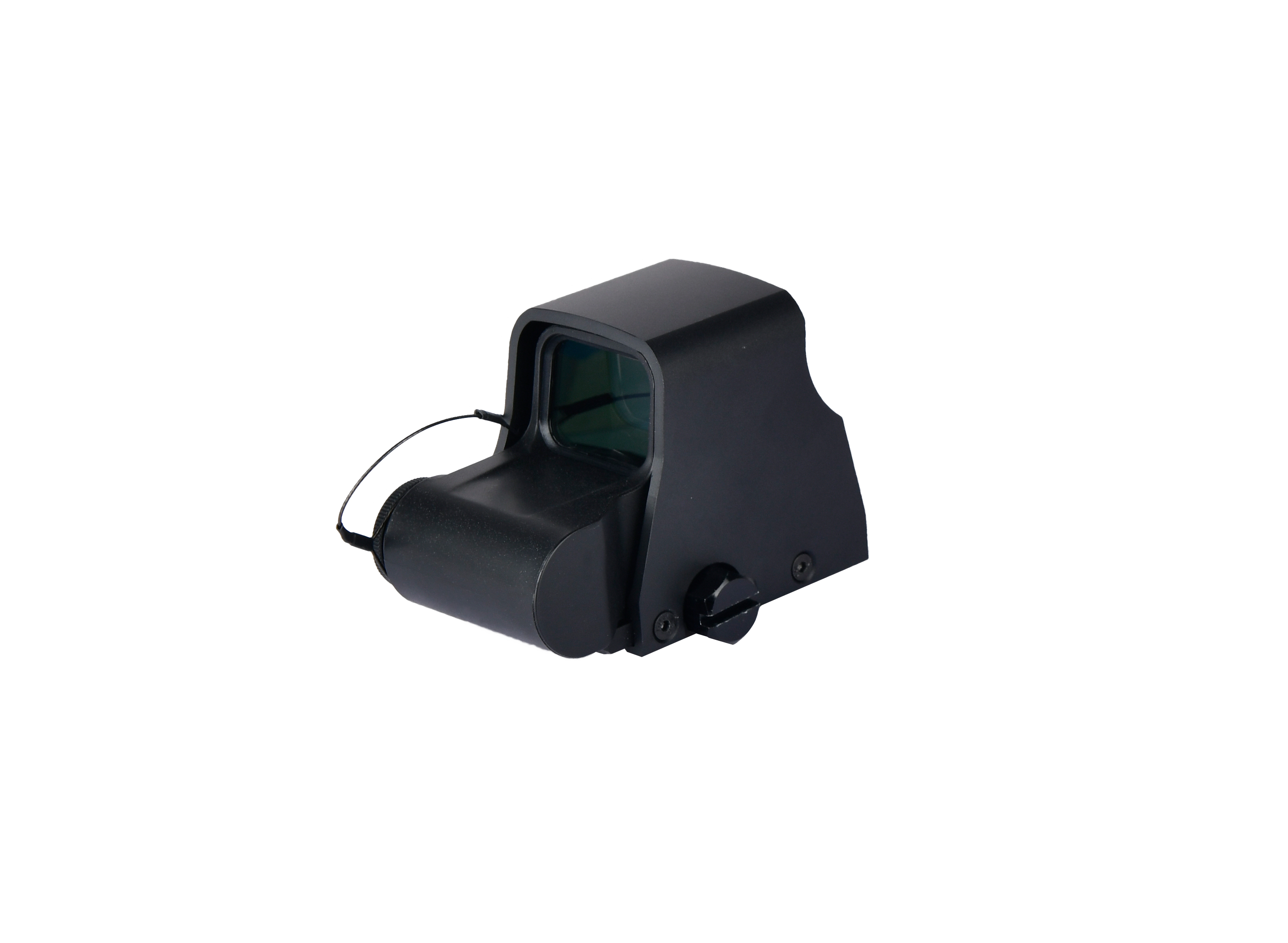

DT-QX8 is a high-performance, high-precision day-and-night laser holographic sight developed by Detyl Optoelectronics and Sichuan University of Electronic Science and Technology based on EOTECH products of the United States.
Availability:
Quantity:
  • DT-QX1

Product Description:

DT-QX8 is a high-performance, high-precision day-and-night laser holographic sight developed by Detyl Optoelectronics and Sichuan University of Electronic Science and Technology based on EOTECH products of the United States. It has the advantages of small size, light weight, easy to use, day-night dual-use, parallax-free and so on. It is the best choice for rapid targeting of short weapons. It is very suitable for public security, customs, special security of armed police and other applications.


1. This product refers to the international popular appearance design, compact and generous, strong versatility.

2. The product is designed in the way of complementary parallax elimination, and the whole system has no parallax in different environments.

3. Diffraction division adopts the latest international technology, which has high transparency, clear imaging and no exposure to the target.

4. Reasonable design, easy operation, adjustable dividing brightness, with two modes of daytime and night vision





Model

DT-QX81

Optical system

projection mode,

Holographic parallax-free Inverse Projection

Magnification

1X

Exit pupil distance

Unlimited

Window material

Optical solid glass

Window size

30x23+/-1mm

Window Glass Coating

Anti-glare (MIL-0-13830A) anti-fog

Field of view deg (100 mm out of pupil)

>15

Division cursor

Subdivision Form

Reverse Projection of Red Light and Infrared Light (NV Function)

Daytime brightness adjustment

146000:1    20adjustable

Night vision brightness adjustment

1280:1      10adjustable

Power requirements

Battery Specification

CR123 x1

Battery life

>550H

Low power warning

Battery power 20% split flicker

Automatic shutdown

8H/4H automatic shutdown without operation (can be set)

Adjustment of Division Accuracy

Divide the scope of regulation

+/-40MOA

Accuracy of Subdivision Adjustment

1/2MOA

Mechanical structure

Fixture Rules

MIL-STD-1913Tactical slide

Clamp locking mode

screw fastening

Assembly and disassembly accuracy

2MOA

Dimensions

volume

<95x55x65mm

weight

<240g

Environment rating

Environmental norms

MIL-STD-810F

waterproof

IP65/IP67(Optional)

Temperature (c)

Work:-40~+65     storage:-50~+75
