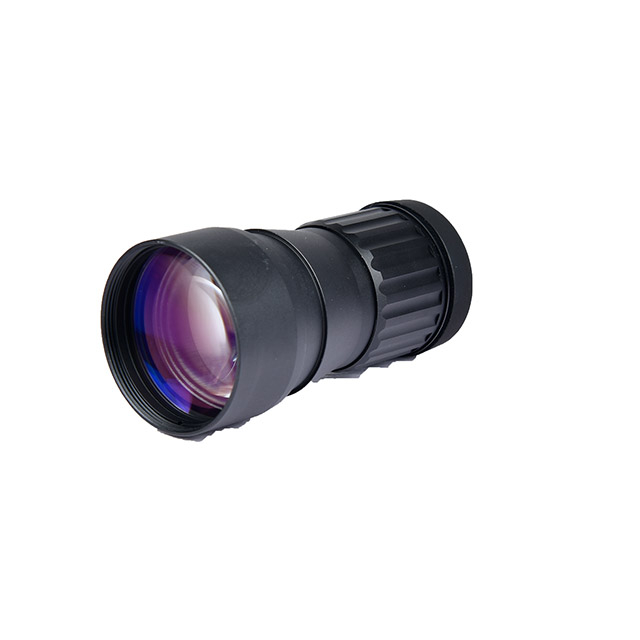

DT-ONX3

DT-ONX3 low-light objective lens is a high-performance universal objective lens that can be combined with low-light image intensifier to obtain high-resolution, low-light environment images. It can adapt to low-light night vision products. It has the technical advantages of strong adaptability to low illumination, high imaging quality, large magnification, small distortion, large aperture and other products. In addition, it also has the appearance advantages of light weight, high cost performance, simple design, beautiful and generous.
Availability:
Quantity:

Product Description:

DT-ONX3&DT-ONX4&DT-ONX5 night vision objective lens is a high-performance universal objective lens that can be combined with low-light image intensifier to obtain high-resolution, low-light environment images.It can adapt to night vision products. It has the technical advantages of strong adaptability to low illumination, high imaging quality, large magnification, small distortion, large aperture and other products. In addition, it also has the appearance advantages of light weight, high cost performance, simple design, beautiful and generous.

Technical specifications:

MODEL

DT-ONX3

DT-ONX4

DT-ONX5

FOV(°)

12-15

5-10

4-8

Optical dynameter

3X   Ф42  FL=50

4X   Ф55  FL=70

5X   Ф65  FL=90

relative illumination

95%

95%

95%

Optical aperture (objective)

F1.3

F1.4

F1.4/2.8

Optical MTF

150LP/mm

150LP/mm

150LP/mm

Optical distortion

0.5%Max

150LP/mm

150LP/mm

Focusing range

5M-∞

10M-∞

15M-∞

Focusing mode

manual operation

manual operation

manual operation

Material

High strength aviation aluminum

shock strength

>1000G

Operating Temperature (℃)

-50--+80℃

Relative Humidity

5%-95%

Waterproof

IP65/IP67

Dimensions(mm)

85x62x42

110x72x58

138x82x68

Weight(no battery)

129g

214g

330g
