DT-NSCF

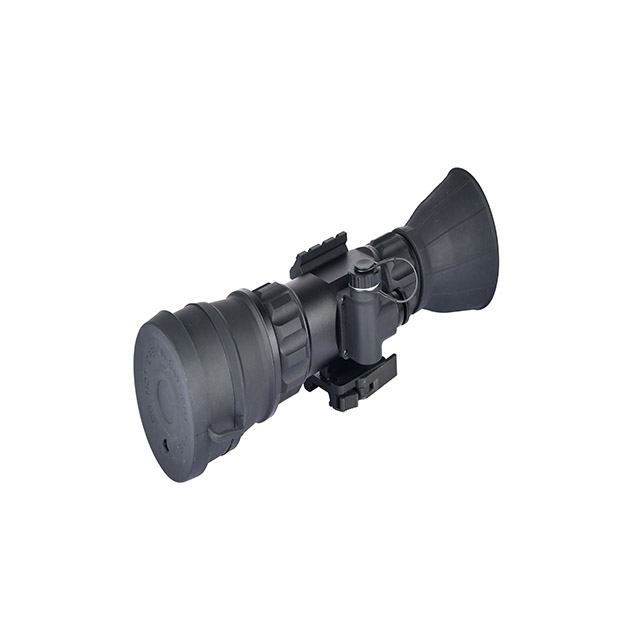

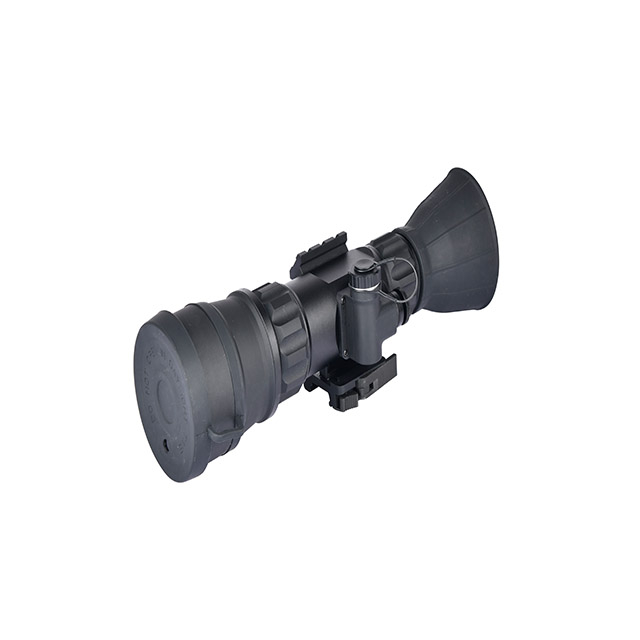

Dt-NSCF is high-performance professional front sight design, good effect at night, all metal body structure, high mechanical strength, small structure, easy to disassemble.
Availability:
Quantity:

Product description

Dt-NSCF is high-performance  professional front sight design, good  effect at night, all metal body structure, high mechanical strength, small structure, easy to disassemble. With the use of day-time optics sight, it can achieve a good sight effect at night. In night vision mode, field sniper operations can be carried out at night as long as the use conditions of 10-3 lux (with weak light) can be met. The front sight has the advantages of small size, light weight, convenient use, reliable performance and high cost performance. In addition, the preview has the function of automatic anti glare protection, which is very suitable for urban action. It can be equipped with an independent and controllable infrared light supplement device, which can fully meet the different use conditions of military and police operations.



MODEL

DT-NSCF1

DT-NSCF3

IIT

Gen2+&3

Gen2+&3

Magnification

1X

1X

Resolution

45-57(51-64)

45-57(51-64)

Les system

F1: 1.2, F25mm

F1: 1.4, F65mm

Objective pupil

22mm

40mm

FOV(degree)

40

13.5

Objective adjustment range (m)

3--∞

3--∞

Exit pupil diameter (mm)

25

40

Distance of pupil

Eyepiece aperture(mm)

22

40

Installation

Special front link bracket

Special front link bracket

Battery type(v)

The 1 section 3V lithium battery

The 1 section 3V lithium battery

Battery life(h)

40-50

40-50

Operating temperature(℃)

-40 /+50

-40 /+50

Relative humidity

5%-98%

5%-98%

Impact resistance

>800G

>800G

Environment rating

IP65/(IP67optinal)

IP65/(IP67optinal)

Dimensions(mm)

155x55x68(including eye mask)

246x58x69(including eye mask)

Weight (g)

292g

335g
