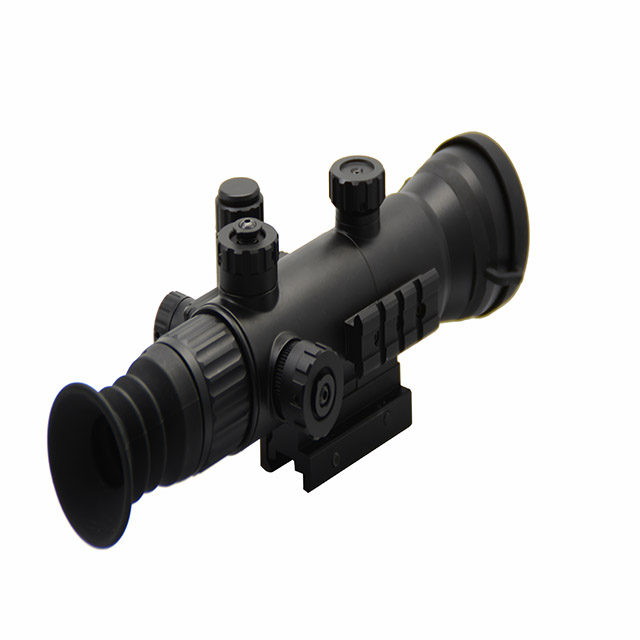

DT-NS84

DT-NS8X4 uses a high-performance super-second generation image intensifier, which greatly improves the viewing clarity and can distinguish adult size targets at a distance of 1-2KM. In night vision mode, night field sniping operations can be carried out as long as the conditions of 10-3 lux (with weak glow) illumination are satisfied.
Availability:
Quantity:

DT-NS8X4 uses a high-performance super-second generation image intensifier, which greatly improves the viewing clarity and can distinguish adult size targets at a distance of 1-2KM. In night vision mode, night field sniping operations can be carried out as long as the conditions of 10-3 lux (with weak glow) illumination are satisfied. The target has the advantages of small size, light weight, convenient operation, reliable performance and high cost performance. In addition, the sighting has the function of automatic anti-strong light protection, which is very suitable for outdoor operations. The gun is equipped with an independent and controllable infrared light compensator, which can meet the different operational conditions of the army and the police.


1. The product design is exquisite, the ratio is big, the volume is small, the weight is light, the intensity is high.

2. Products strive for high-strength impact design; all forces are face-to-face contact, surface force, to ensure product durability.

3. The dividing and adjusting design adopts fast-adjusting and fast-locking design, which is flexible in operation and convenient in use.

4. Anti-exposure eye mask design, to ensure that the use of night environment does not expose their own targets.


Model

DT-NS84

IIT

Gen 2+(Gen3)

Magnification

4X

Resolution

45-57

Detection distance(m)

1500

Recognition

1000

Lens system

F1: 1.4, F85mm

Pupil

55mm

FOV(deg)

11.5

Distance of pupil

50mm

Graduation type

Back Light red cursor

Minimum mil

1/6MOA

Diopter (deg)

+/-5

Battery type(v)

CR123(A)x1

Battery life (hours)

40-50

range of focus (m)

8M--∞

Operating temperature(℃)

-40 /+50

relative humidity

5%-98%

Impact resistance

>1000G

Environmental rating

IP65/IP67(Optional)

Dimensions(mm)

257x92x90(Containing eye mask and guide rai)

Weight(g)

850g(Containing guide rai)
