Product description：

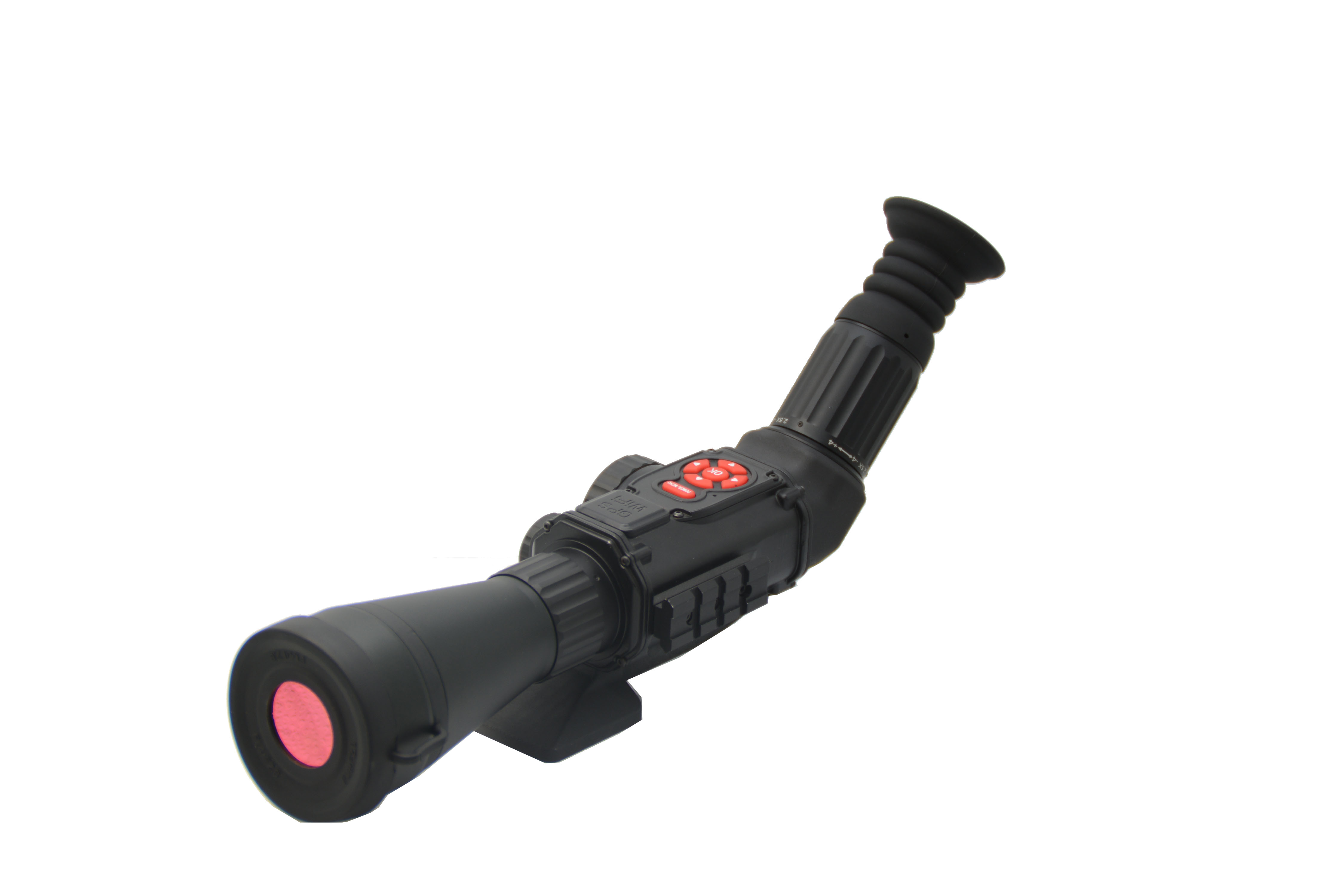

DT-DV8X&XP series digital sighting is Detyl Optoelectronic company with the trend of the time,actively adjust their development to build a high-performance professional digital day-and-night dual-purpose sighting,Low illumination adaptability is strong,high image quality, Multifunctional performance,high precision, dual-use day and night, high multiplier, High performance-price ratio and so on. working on observing targets and birds .Being equipped with GPRS，Wi-Fi，and functions like taking photos and videos day and night and so on，it is the best choice for the aims above ，which can be said to fulfill completely the needs for observing outdoors. Is the optimal choice for observing targets and watching bird.
Technical Specifications:
DT-DV8X&XP | DT-DV8A | DT-DV8AP | DT-DV8B | DT-DV8BP |
Power supply | Lithium battery(CR123x3)、USB-5V | Lithium battery(CR123x3)、USB-5V | Lithium battery(CR123x3)、USB-5V | Lithium battery(CR123x3)、USB-5V |
Placement Mode | Camera Mount | Camera Mount | Camera Mount | Camera Mount |
Power dissipation | <1.35W (WiFi OFF) | <1.35W (WiFi OFF) | <1.35W (WiFi OFF) | <1.35W (WiFi OFF) |
Battery capacity | 1500-2500maH | 1500-2500maH | 1500-2500maH | 1500-2500maH |
Battery life | 4-6H | 4-6H | 4-6H | 4-6H |
Observation Mode | Color / Black and white / night vision | Color / Black and white / night vision | Color / Black and white / night vision | Color / Black and white / night vision |
Optical Multiplier (Digital) | 10X Ф65 FL=90 | 10X Ф65 FL=90 | 30X Ф90 FL=250 | 30X Ф90 FL=250 |
Electronic zoom | 4X | 4X | 4X | 4X |
Magnification range | 10-40X | 10-40X | 30-120X | 30-120X |
F number | F1.5 | F1.5 | F2.8 | F2.8 |
MTF | 150LP/mm | 150LP/mm | 160LP/mm | 160LP/mm |
Optical distortion | 0.5%Max | 0.5%Max | 0.2%Max | 0.2%Max |
Range of focus | 10M-∞ | 10M-∞ | 20M-∞ | 20M-∞ |
Focus Mode | Manual | Manual | Manual | Manual |
Distance of pupil | 50 | 50 | 50 | 50 |
Eyepiece aperture | 8mm | 8mm | 8mm | 8mm |
Range of visibility | +/-5 | +/-5 | +/-5 | +/-5 |
Sensor type | CMOS | CMOS | CMOS | CMOS |
Sensor Sensitivity | 1x10-4 Lx | 1x10-4 Lx | 1x10-4 Lx | 1x10-4 Lx |
Sensor resolution | 1080P | 1080P | 1080P | 1080P |
Types of Display Screen | 640x480 OLED (Circular screen) | 720P LCOS | 640x480 OLED (Circular screen) | 720P LCOS |
Memory Card | 1-128GB （high speed card） | 1-128GB （high speed card） | 1-128GB （high speed card） | 1-128GB （high speed card） |
Accessory function | Video、GPS、WIFI、Electronic Compass、HDMI | Video、GPS、WIFI、Electronic Compass、HDMI | Video、GPS、WIFI、Electronic Compass、HDMI | Video、GPS、WIFI、Electronic Compass、HDMI |
Operating temperature | -40--+50℃ | -20--+50℃ | -40--+50℃ | -20--+50℃ |
Relative humidity | 5%-95% | 5%-95% | 5%-95% | 5%-95% |
Environment rating | IP65/IP67（optional） | IP65/IP67（optional） | IP65/IP67（optional） | IP65/IP67（optional） |
Dimensions | 345x89x72 | 345x89x72 | 465x110x95 | 465x110x95 |
Weight,kg | 0.82KG | 0.82KG | 1.35KG | 1.35KG |
