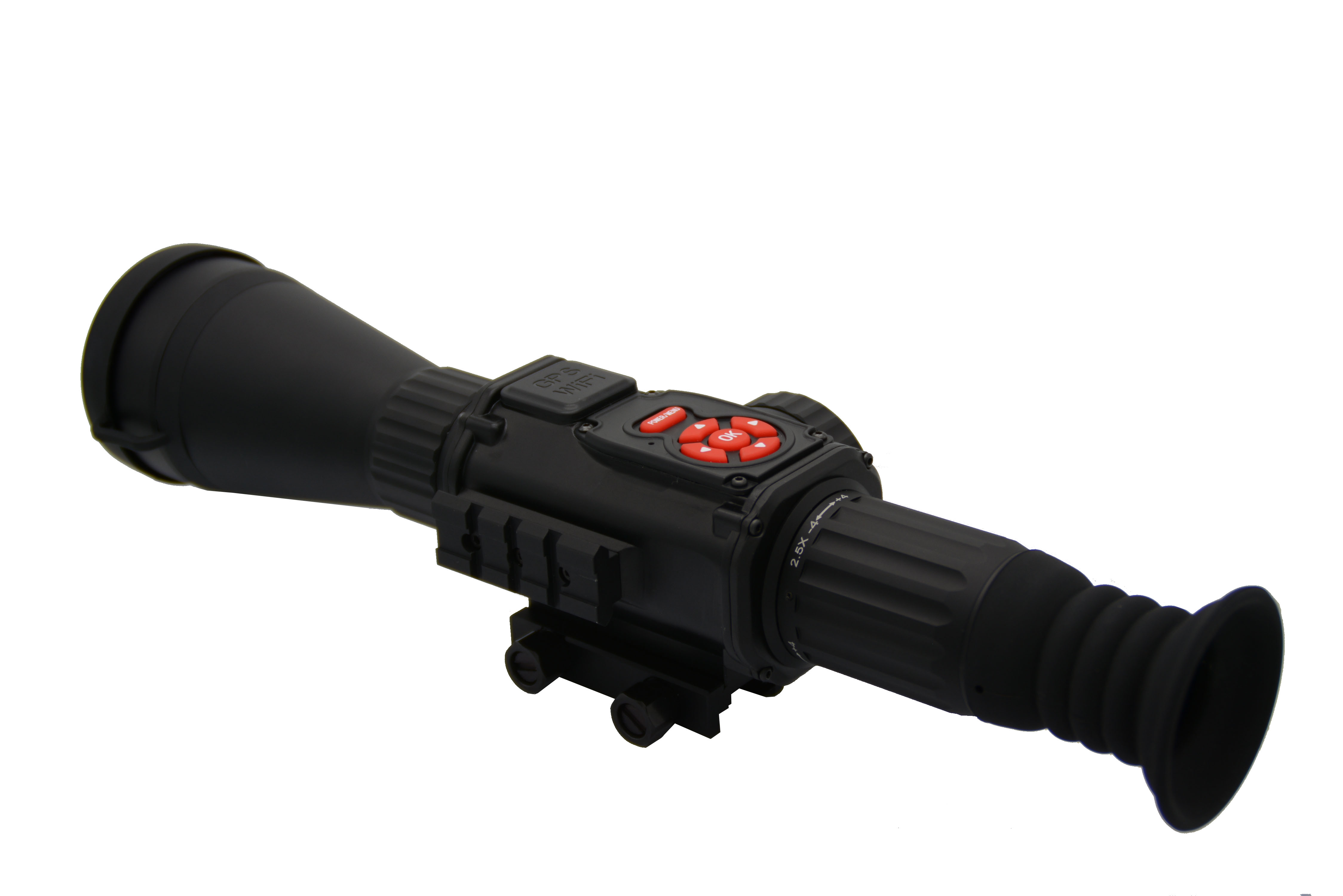

DT-DS89NP3

DT-DS89NP3 is a high-performance digital scope made by Detyl Optoelectronics Co., Ltd. in accordance with the development trend of sighting. It has the characteristics of low illumination adaptability, high imaging quality, high precision, dual-use day and night, high multiplier, light weight, high cost-effective and so on.
Quantity:

Description

DT-DS89NP3 is a high-performance digital day/night riflescope made by Detyl Optoelectronics Co., Ltd. In accordance with the development trend of sighting It has the characteristics of low illumination adaptability, high imaging quality, high precision, dual-use day and night, high multiplier, light weight, high cost-effective and so on.



1. The product is small in size, light in weight and high in structural strength.

It is completely suitable for outdoor hunting field.

2.  The product has clear imaging and powerful function, which meets the different needs  of different consumer groups for sights.

3. The effect of low illumination is good. The CMOS sensor with ultra-low illumination and professional software algorithm are used to make the product fully meet the requirements of starlight.

4. Professional design one-button calibration gun design, electronic doubling with whom, so that the sighting device in the gun and aiming more convenient, fast and accurate.


DT-DS89NP3

technical parameter

Power supply

lithium battery (CR123x3)、USB-5V

Operational mode

Button

Overall power consumption

<1.2W  (WiFi OFF)

Battery capacity

1500-2500maH

Battery life

4-6H

Optical Multiplier (Digital)

9X   Ф65  FL=90

MOA

1/12--1/4

Magnification

4X

Lens system

F1.5

Optics MTF

150LP/mm

Optical distortion

0.5%Max

Range of focus

10M-∞

Focus Mode

Manual

Distance of pupil

50

Eyepiece aperture

8mm

Range of visibility

+/-5

Sensor type

CMOS

Sensor Sensitivity

1x10-4 Lx

Sensor resolution

1080P

Types of Display Screen

480x480x3 OLED

Impact resistance

>1000G

Memroy Card

1-64GB

Addition Fuction

Video, GPS, WiFi, Electronic Compass, HDMI

Operating temperature

-20--+50℃

Relative Humidity

5%-95%

Environment rating

IP65/IP67(Optional)

Dimensions

335x79x72

Weight

0.78KG
