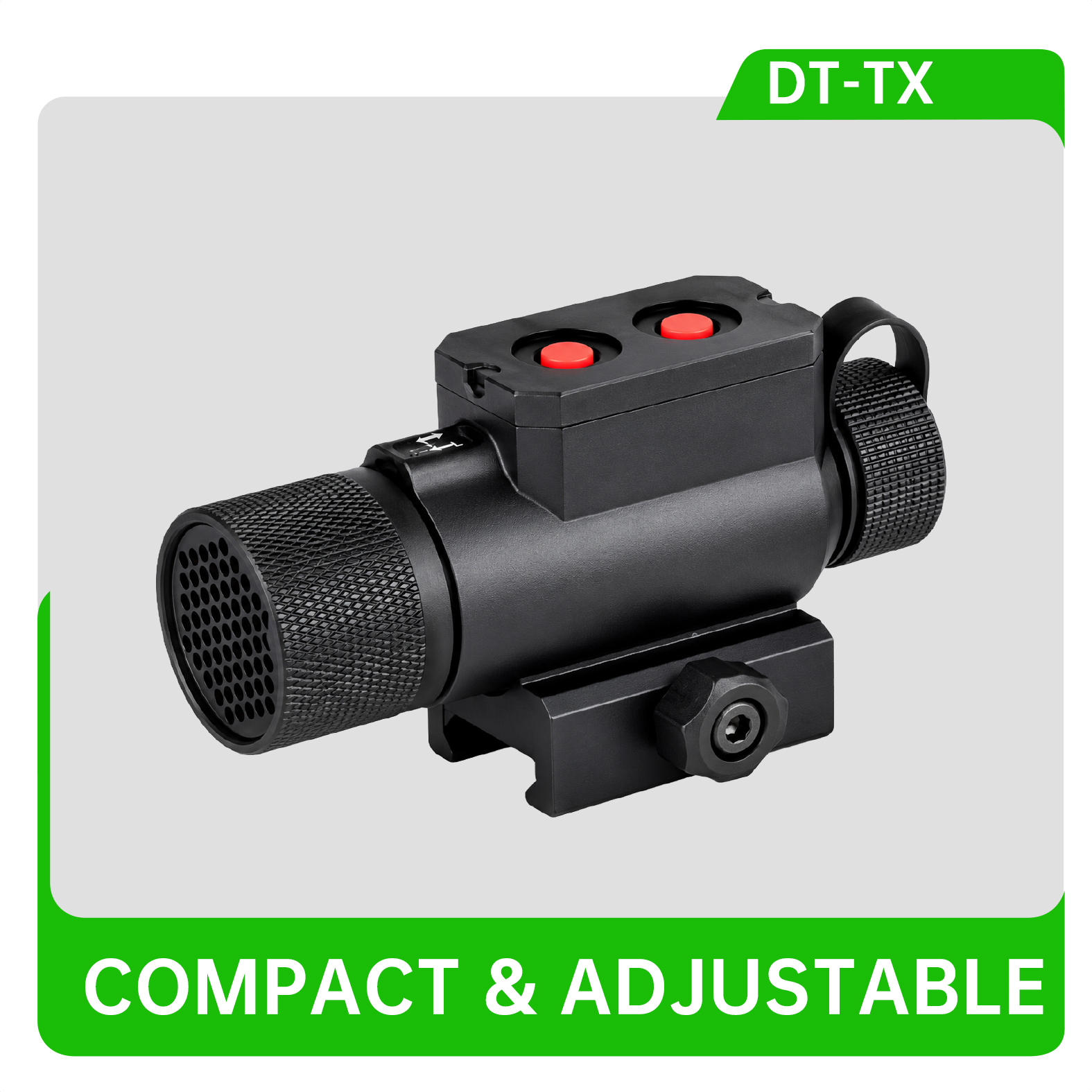

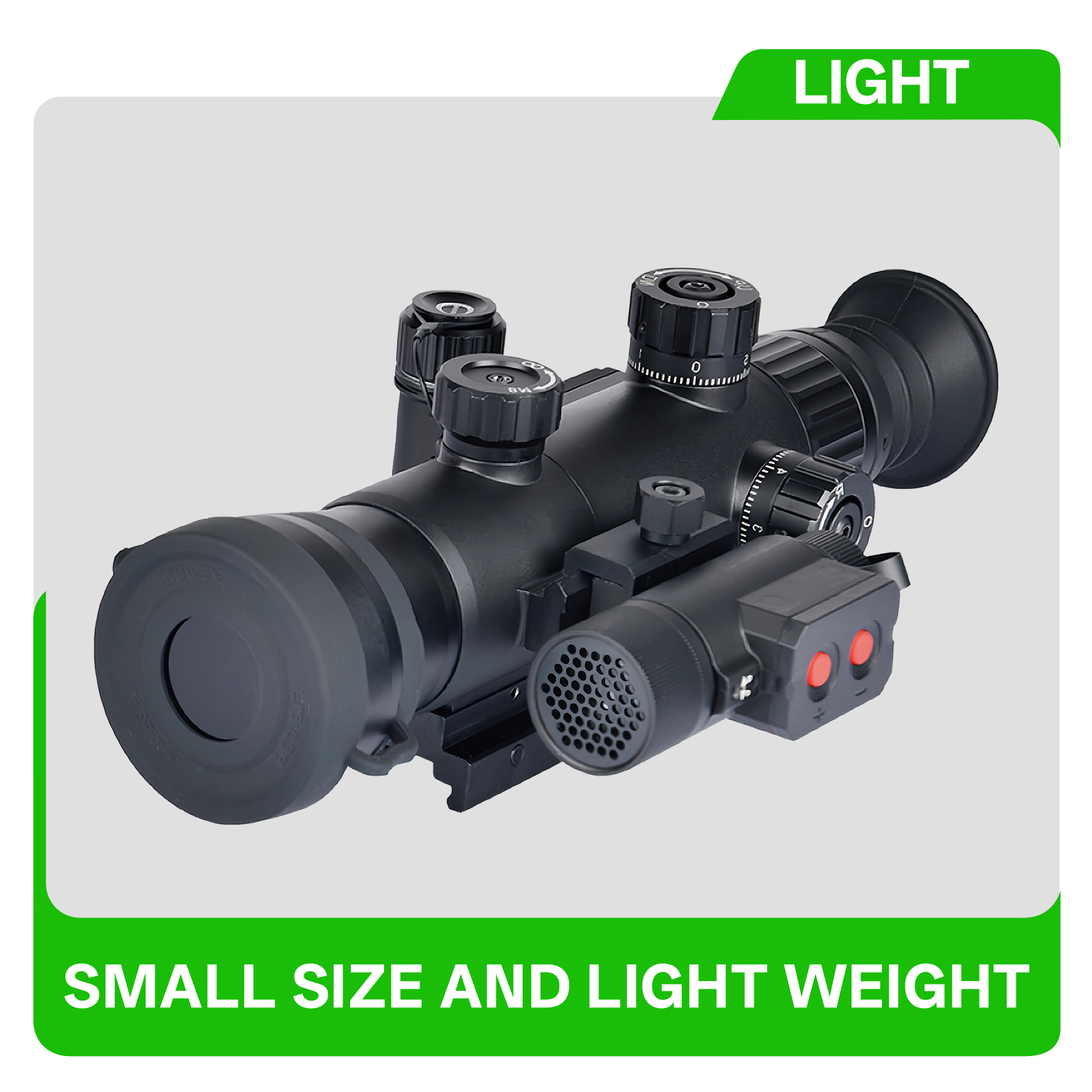

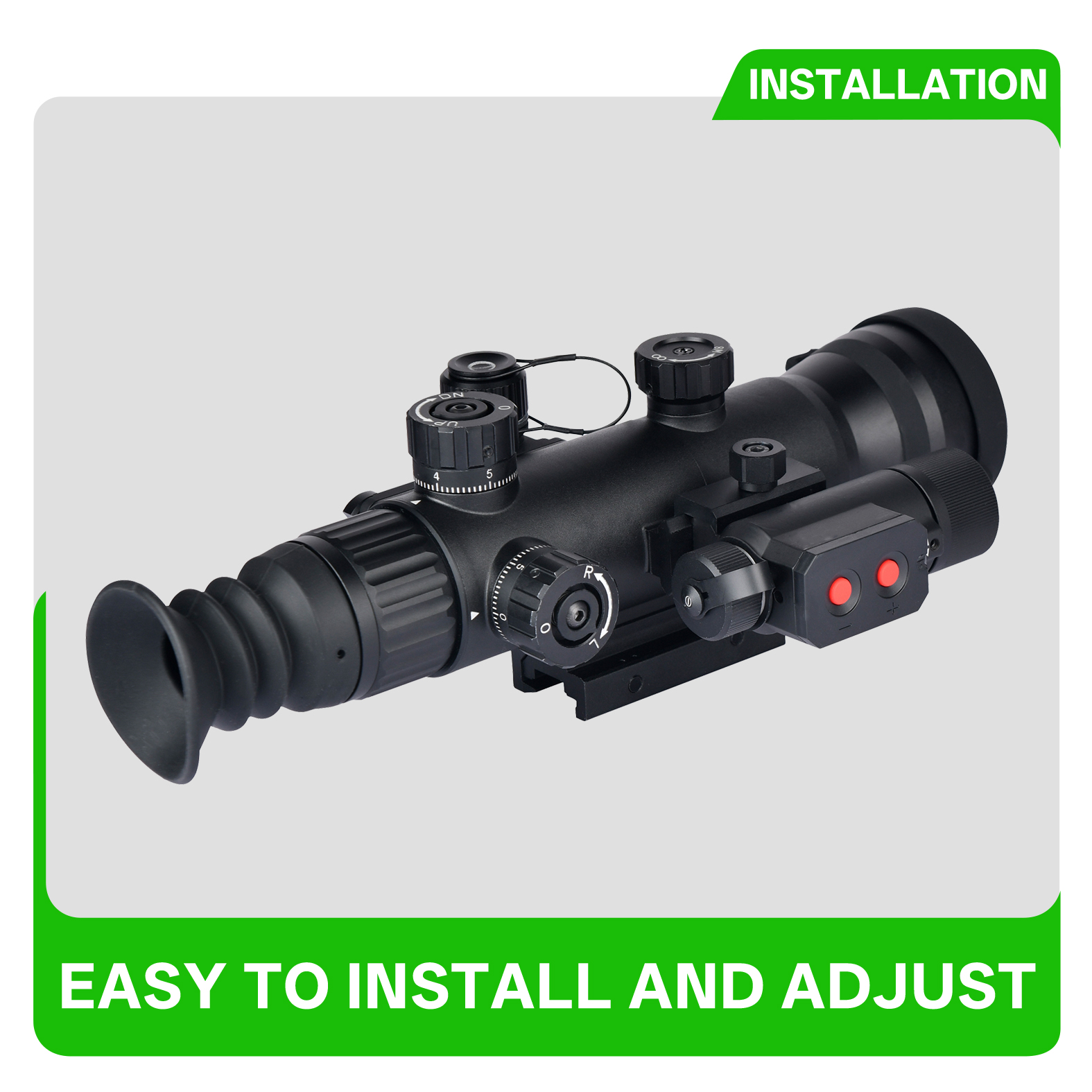

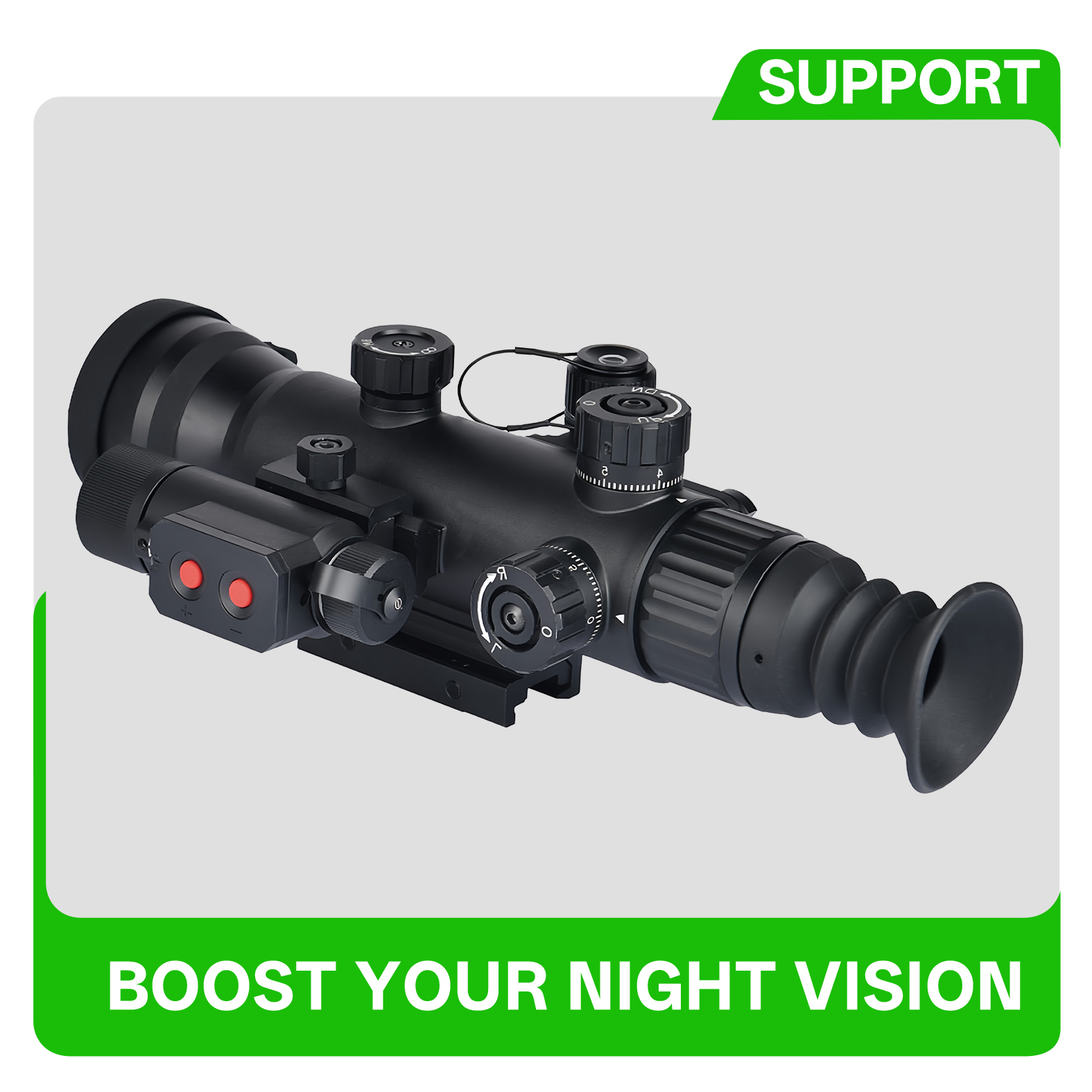

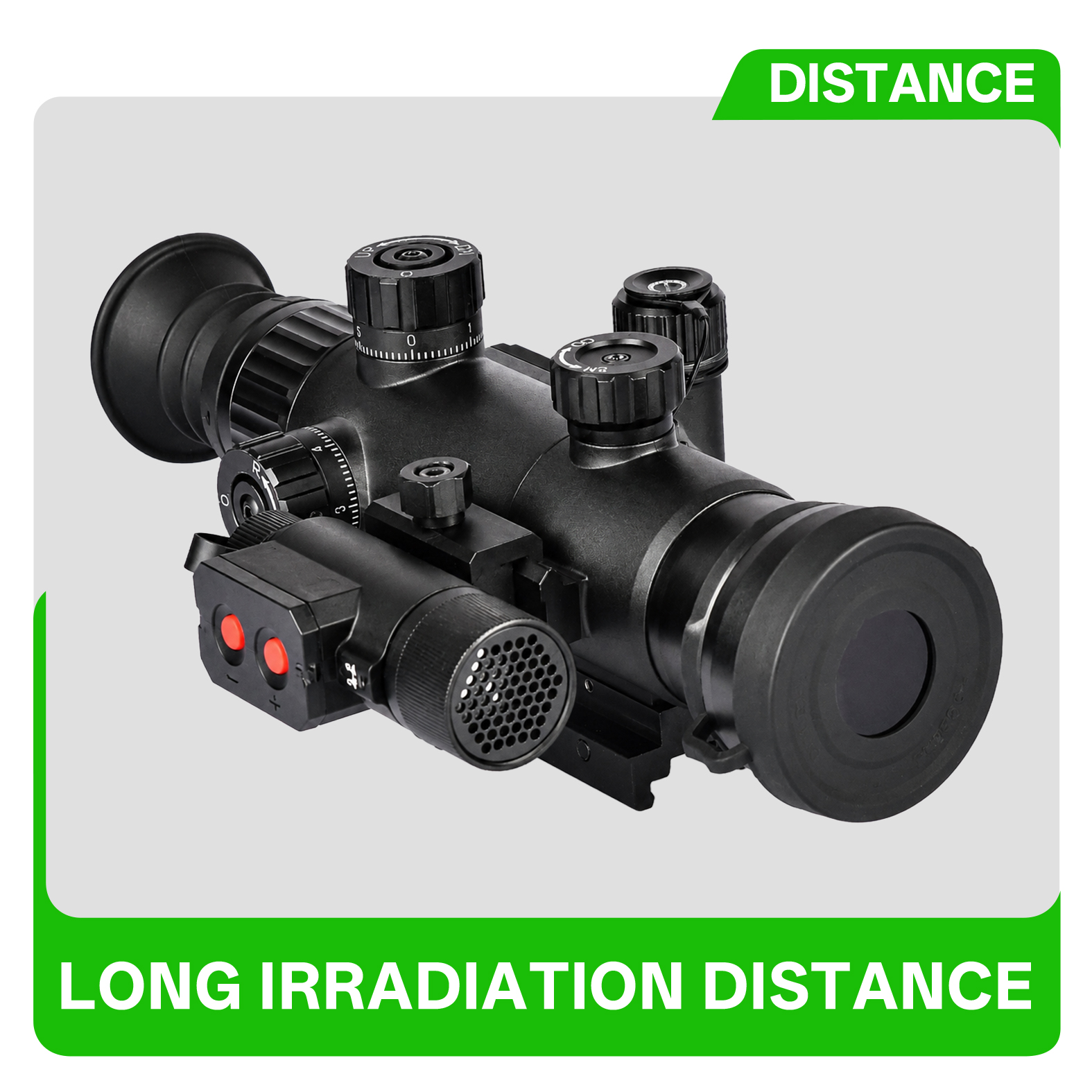

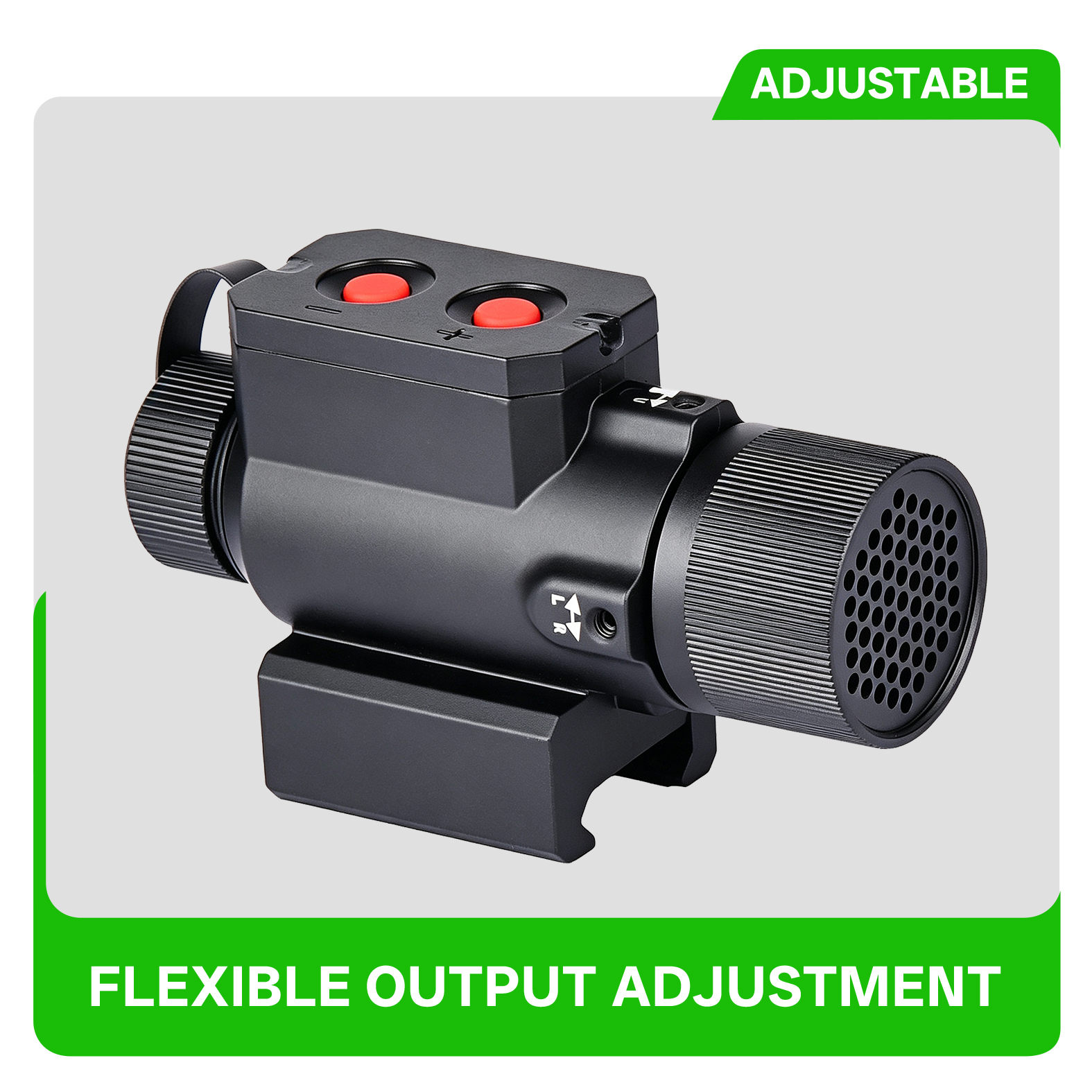

DT-TX is designed specifically for the environment and characteristics of the sight. With small volume, light weight, high strength, easy installation and adjustment, uniform light, small power, brightness is adjustable, adjustable launch direction, irradiation distance, and good concealment.
Technical specifications:
| MODLE | TX8N | TX9N | TX8W | TX9W |
| Light type | IR(No stripe) | IR(No stripe) | IR(No stripe) | IR(No stripe) |
| wavelength(nm) | 850 | 940 | 850 | 940 |
| Angle of irradiation | 5° | 5° | 10° | 10° |
| Light shape | circular | circular | circular | circular |
| Power(Max) | 1.2W | 1.2W | 1.2W | 1.2W |
| Light quality | Adjustable | Adjustable | Adjustable | Adjustable |
| Brightness level(Step) | 11 | 11 | 11 | 11 |
| Brightness control | Keyboard | Keyboard | Keyboard | Keyboard |
| Battery Voltage | 2.4-4.2V | 2.4-4.2V | 2.4-4.2V | 2.4-4.2V |
| Battery Type | CR123(A) | CR123(A) | CR123(A) | CR123(A) |
| Irradiation distance | >300M | >300M | >200M | >200M |
| Battery quantity | 1 | 1 | 1 | 1 |
| Battery life(Step6) | 5H | 5H | 5H | 5H |
| Direction adjust | Up/Dn&R/L | Up/Dn&R/L | Up/Dn&R/L | Up/Dn&R/L |
| Concealment | Anti red nets | Anti red nets | Anti red nets | Anti red nets |
| Mountting | Standard fixture | Standard fixture | Standard fixture | Standard fixture |
| material | Aviation aluminum | Aviation aluminum | Aviation aluminum | Aviation aluminum |
| Temperature(ºC) | -30~+50 | -30~+50 | -30~+50 | -30~+50 |
| shock strength | >1000G | >1000G | >1000G | >1000G |
| Size(mm) | 92x41x54 | 92x41x54 | 92x41x54 | 92x41x54 |
| Weight(no battery) | 145g | 145g | 145g | 145g |
| waterproof | IP65 (IP67 OP.) | IP65 (IP67 OP.) | IP65 (IP67 OP.) | IP65 (IP67 OP.) |
DT-TX is designed specifically for the environment and characteristics of the sight. With small volume, light weight, high strength, easy installation and adjustment, uniform light, small power, brightness is adjustable, adjustable launch direction, irradiation distance, and good concealment.
Technical specifications:
| MODLE | TX8N | TX9N | TX8W | TX9W |
| Light type | IR(No stripe) | IR(No stripe) | IR(No stripe) | IR(No stripe) |
| wavelength(nm) | 850 | 940 | 850 | 940 |
| Angle of irradiation | 5° | 5° | 10° | 10° |
| Light shape | circular | circular | circular | circular |
| Power(Max) | 1.2W | 1.2W | 1.2W | 1.2W |
| Light quality | Adjustable | Adjustable | Adjustable | Adjustable |
| Brightness level(Step) | 11 | 11 | 11 | 11 |
| Brightness control | Keyboard | Keyboard | Keyboard | Keyboard |
| Battery Voltage | 2.4-4.2V | 2.4-4.2V | 2.4-4.2V | 2.4-4.2V |
| Battery Type | CR123(A) | CR123(A) | CR123(A) | CR123(A) |
| Irradiation distance | >300M | >300M | >200M | >200M |
| Battery quantity | 1 | 1 | 1 | 1 |
| Battery life(Step6) | 5H | 5H | 5H | 5H |
| Direction adjust | Up/Dn&R/L | Up/Dn&R/L | Up/Dn&R/L | Up/Dn&R/L |
| Concealment | Anti red nets | Anti red nets | Anti red nets | Anti red nets |
| Mountting | Standard fixture | Standard fixture | Standard fixture | Standard fixture |
| material | Aviation aluminum | Aviation aluminum | Aviation aluminum | Aviation aluminum |
| Temperature(ºC) | -30~+50 | -30~+50 | -30~+50 | -30~+50 |
| shock strength | >1000G | >1000G | >1000G | >1000G |
| Size(mm) | 92x41x54 | 92x41x54 | 92x41x54 | 92x41x54 |
| Weight(no battery) | 145g | 145g | 145g | 145g |
| waterproof | IP65 (IP67 OP.) | IP65 (IP67 OP.) | IP65 (IP67 OP.) | IP65 (IP67 OP.) |
