DTG-18N

The DTG-18N is not only powered by a battery on the device, but also by a remote battery packs, tethered to the unit via a standard DC cable. It comes with a pack that accepts four 3-Volt CR123A batteries that tend to power the unit for 50-80 hours (IR off). The remote battery pack provides a secondary function as a counterweight, which is needed considering the goggle weighs about 780g..
Availability:
Quantity:
  • DTG-18

Product Description

Description

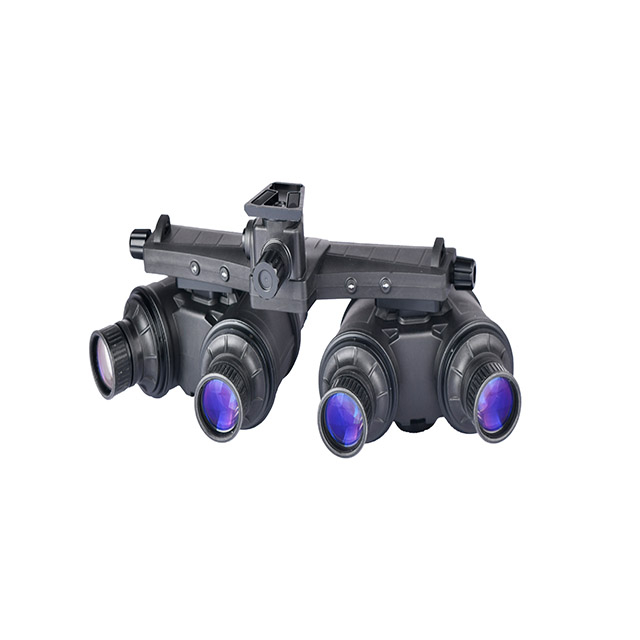

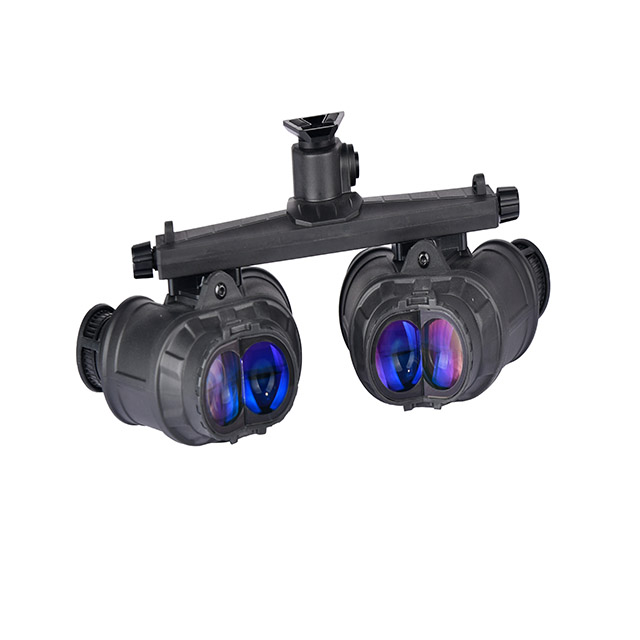

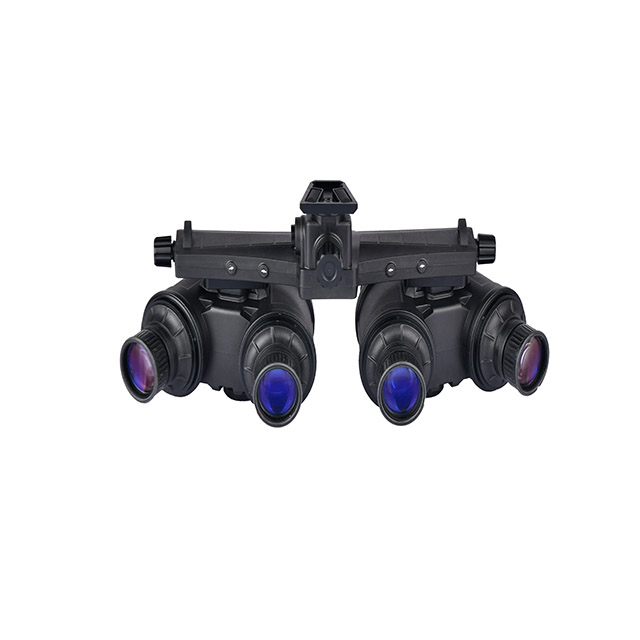

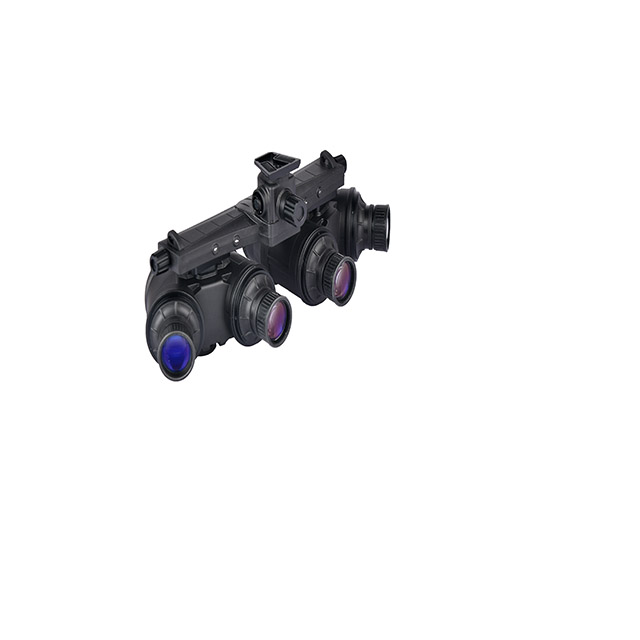

With the new technology, Detyl developed a new Ground Panoramic Night Vision Goggles which called DTG-18N, The purpose of the DTG-18N is to provide the operator more information under goggles, allowing him to more quickly move through the OODA Loop (Observe, Orient, Decide, Act). The most striking feature of the DTG-18N is the presence of four separate image intensifier tubes with four separate objective lenses arrayed in a panoramic orientation. The center two lenses point forward like traditional dual-tube goggles, giving the operator more depth perception, while two more tubes point slightly outward from the center to increase peripheral view. The two tubes on the right and the two on the left are spliced at the eyepieces. The operator sees the two center tubes somewhat overlapping the two outer tubes to produce an unprecedented 120° FOV. This is an absolute game-changer for the SOF community. The two right and two left tubes are housed in merged assemblies and are hung from a bridge, giving operators interpupillary adjustment options. They can also be easily removed and operated as independent handheld viewers. The IPD of the two system can be adjusted on the helmet mount.


The DTG-18N is not only powered by a battery on the device, but also by a remote battery packs, tethered to the unit via a standard DC cable. It comes with a pack that accepts four 3-Volt CR123A batteries that tend to power the unit for 50-80 hours (IR off). The remote battery pack provides a secondary function as a counterweight, which is needed considering the goggle weighs about 780g..

ModelDTG-18N
Structural modehelmeted turnover four-eyed NVG
Battery typeLithium battery (cr123Ax1) / cr123Ax4 external battery pack
Power supply2.6-4.2V
InstallationHead mounted(standard American helmet interface)
Control modeON/IR/AUTO
Over power consumption<0.2W
Battery capacity800-3200maH
Battery life30-80H
Magnification1X
FOV(°)120x50 +/-2 °
Horizontal 120+/-2 °
Vertical 50 +/-2 °
Parallelism of optical axis<0.1°
IITgen2+ / gen 3
GAInAuto
Lens systemF1.18  22.5mm
MTF120LP/mm
Optical distortion1% Max
Relative Illumination>75%
CoatingMultilayer broadband coating
Focus range250mm-∞
Focus modeManual focus facility
eye relief30mm
Pupil diameter8mm
Visibility range-1(+0.5~-2.5)
IPD adjust typeArbitrary continuously adjustable
IPD adjust range50-85mm
IPD lock typeManual lock
IR850nm 20mW
Working temperature range-40--+55ºC
Humidity range5%-95%
WaterproofIP65/IP67
Dimensions155x136x83mm
Weight780G(without battery)
